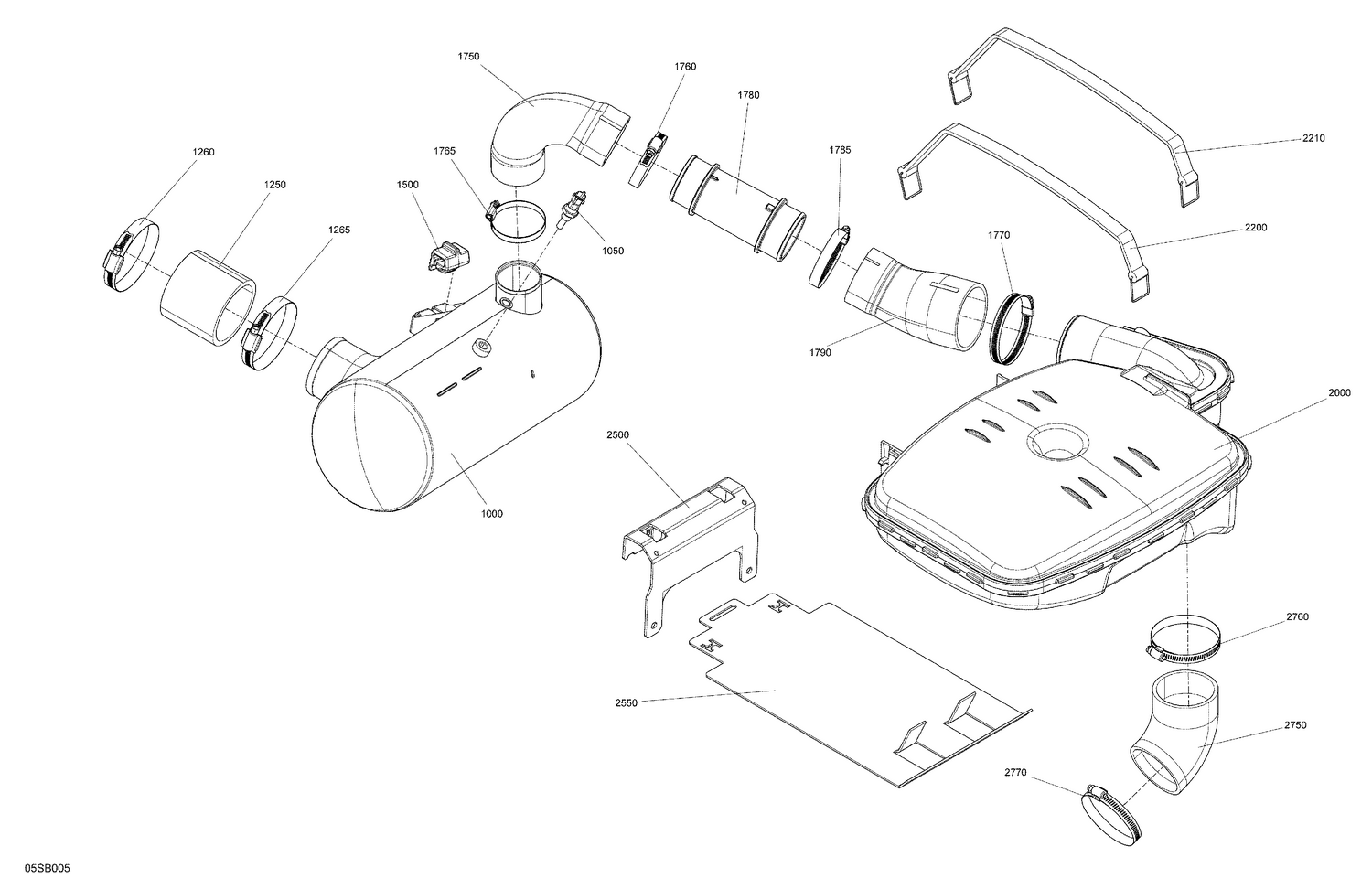

02- Engine - Exhaust
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 274001618 | Muffler |
| 1050 | 278002895 | Temperature Sensor |
| 1250 | 274001453 | Hose 79.375mm - 80mm |
| 1260 | 293650221 | Clamp |
| 1265 | 293650221 | Clamp |
| 1500 | 514054606 | Upper Stopper |
| 1750 | 274001706 | Exhaust Hose |
| 1760 | 293650288 | Clamp Gear |
| 1765 | 293650081 | Norma Clamp |
| 1770 | 293650244 | Tridon Gear Clamp |
| 1780 | 274001614 | Exhaust Hose Fitting |
| 1785 | 293650288 | Clamp Gear |
| 1790 | 274001694 | Exhaust Hose Central |
| 2000 | 274001722 | Resonator |
| 2200 | 293850120 | Strap |
| 2210 | 293850120 | Strap |
| 2500 | 292001831 | Bracket |
| 2550 | 293830173 | Rubber Pad |
| 2750 | 274001628 | Rear Exhaust Hose This part replaces 274001617. |
| 2760 | 293650244 | Tridon Gear Clamp |
