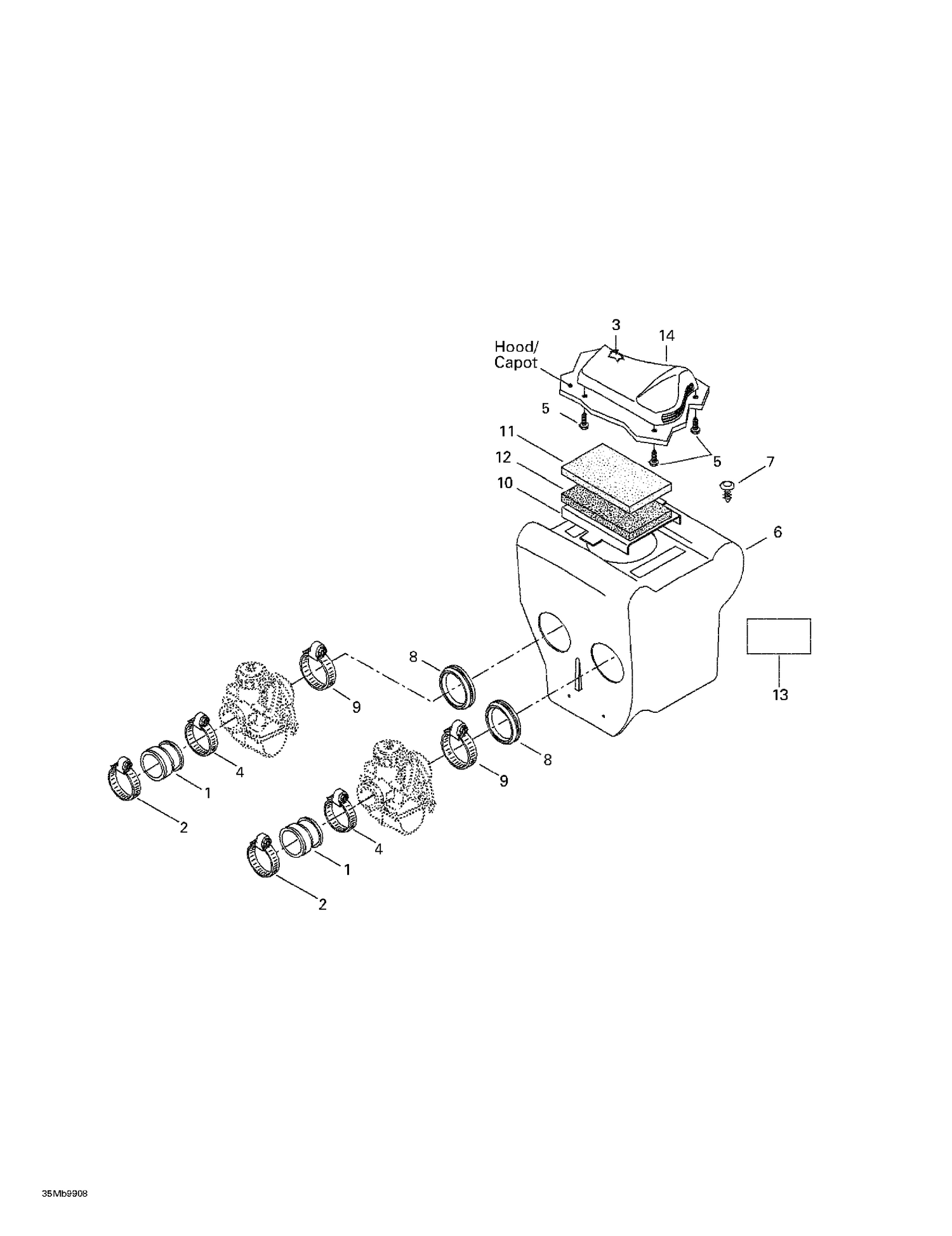

| Ref | Part Number | Description |
|---|
| 1 |
570066800 |
CARBURATOR ADAPTOR - Call your local BRP dealership |
| 2 |
414532700 |
COLLAR - Call your local BRP dealership |
| 3 |
414972600 |
Air Filter |
| 4 |
408803800 |
Gear Clamp (47 mm) |
| 5 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 7 |
414644300 |
Black, Dart |
| 8 |
570043600 |
Adaptor 34 mm |
| 9 |
408801600 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 10 |
517285900 |
Intake Grill |
| 11 |
415106000 |
Lower Foam |
| 12 |
415037600 |
Air Filter |
| 13 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
