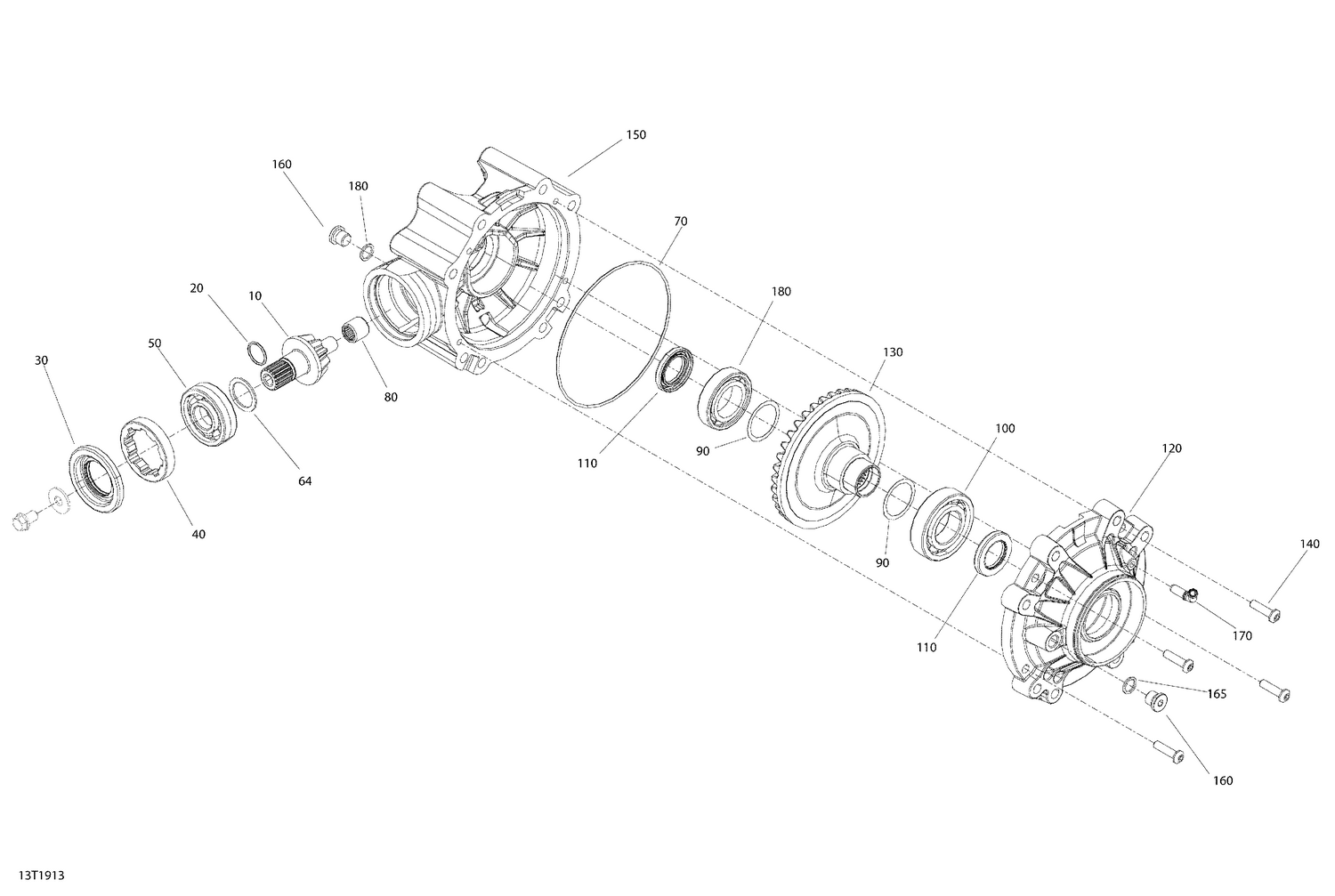

08- Rear Drive - Final Drive Unit
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705501571 | PINION 10 TOOTH - Call your local BRP dealership |
| 20 | 705500267 | O-Ring |
| 30 | 705401481 | Oil Seal |
| 40 | 705401603 | Nut This part replaces 705400661. |
| 50 | 705500260 | Ball Bearing |
| 64 | 705501162 | Pinion Gear Shim |
| 70 | 705502064 | Seal |
| 80 | 705501408 | Needle Bearing |
| 90 | 705502060 | Differential Shim 0.02 mm |
| 100 | 705502738 | Ball Bearing This part replaces 705502057. |
| 110 | 705501996 | Oil Seal |
| 120 | 705502197 | Cover Case |
| 130 | 705501397 | Gear, 36 Tooth |
| 140 | 205483046 | SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 150 | 705502195 | Rear Gear Case |
| 160 | 705500504 | Fill Level Plug |
| 165 | 705500506 | Copper Washer |
| 170 | 705501584 | Breather Tube |
| 180 | 705502737 | Ball Bearing This part replaces 705502056. |
