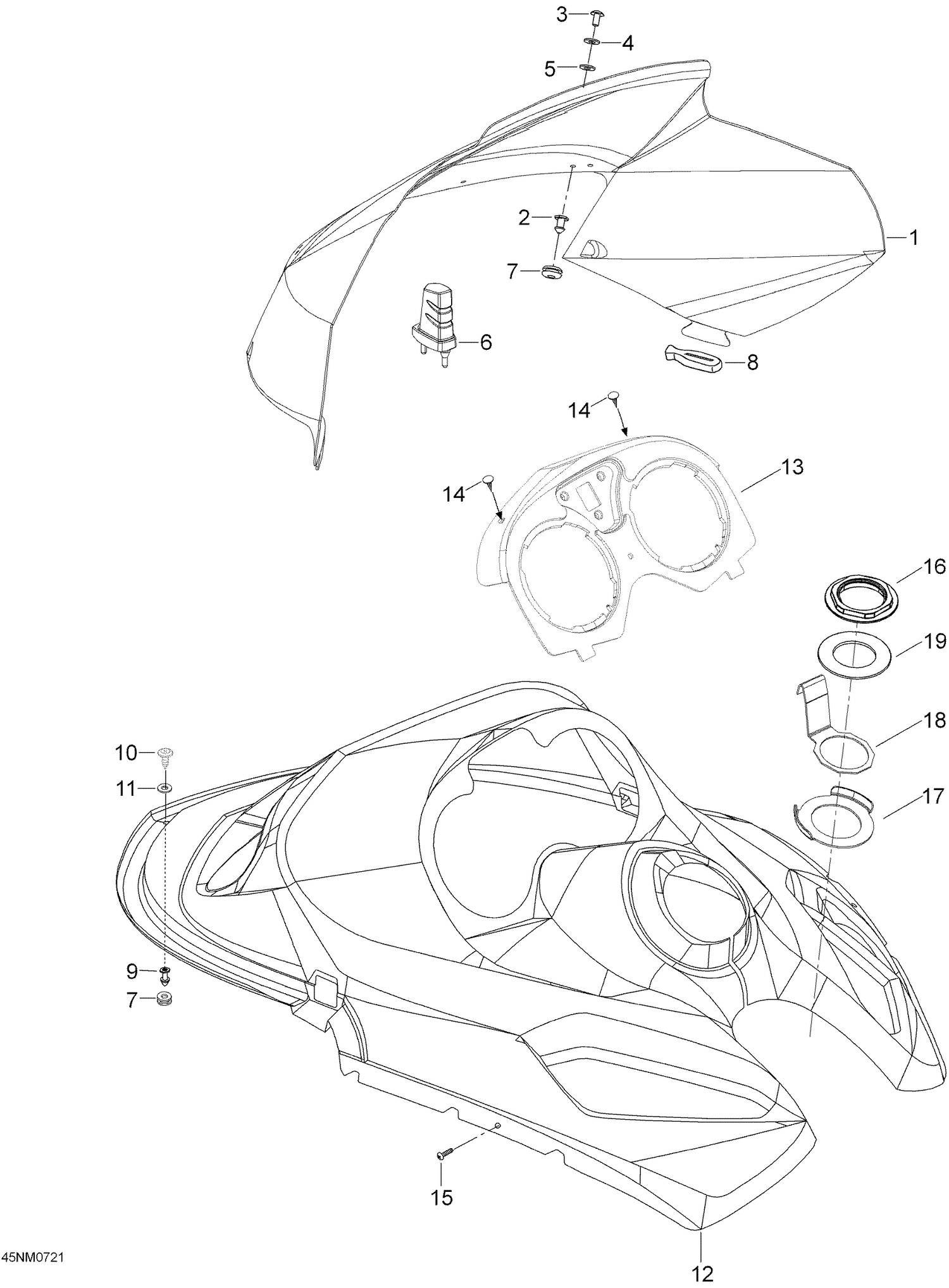

09- Windshield And Console
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605153591 | Windshield, low |
| 2 | 517303439 | Knob |
| 3 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 4 | 250200025 | Washer M5 |
| 5 | 250200024 | Rubber Washer 5 mm |
| 6 | 605353583 | Windshield support |
| 7 | 517307161 | Grommet This part replaces 517302841. |
| 8 | 570023800 | Latch |
| 9 | 517303439 | Knob This part replaces 517302719. |
| 10 | 208651481 | PHILLIPS SCREW M5 X 14 - Call your local BRP dealership |
| 11 | 250200025 | Washer M5 |
| 12 | 605253489 | Console |
| 13 | 605253398 | Indicator support |
| 14 | 414644300 | Black, Dart |
| 15 | 40176 | Screw M5 x 12 |
| 16 | 517302043 | CONSOLE NUT - Call your local BRP dealership |
| 17 | 605354206 | Support plate |
| 18 | 605354207 | Cover plate |
