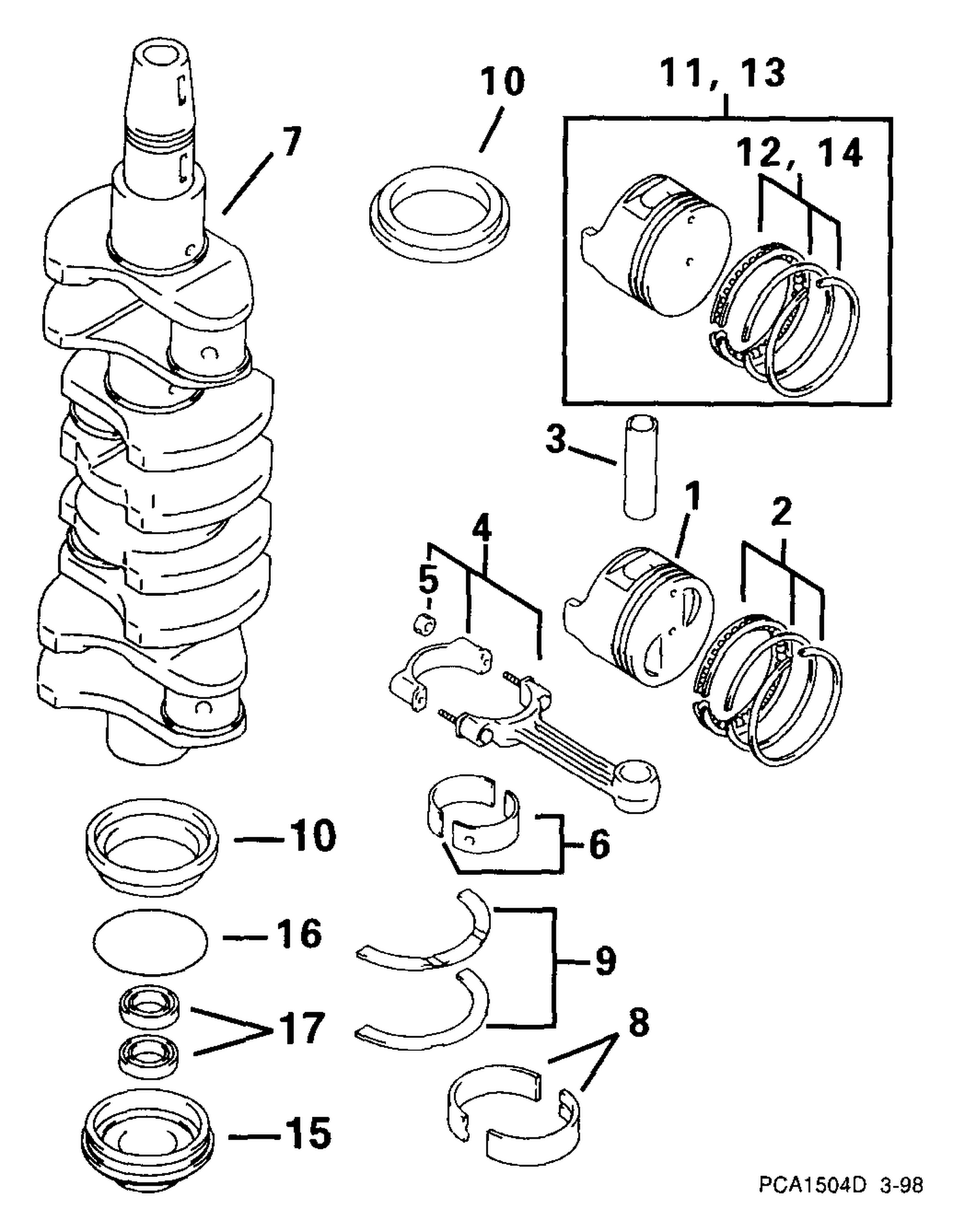

| Ref | Part Number | Description |
|---|
| 1 |
5030643 |
PISTON |
| 2 |
5030644 |
RING SET, Piston |
| 3 |
5030645 |
PIN, Piston |
| 4 |
5030646 |
CONNECTING ROD Assy |
| 6 |
5030642 |
BEARING Assy, Rod |
| 7 |
5030647 |
CRANKSHAFT |
| 8 |
5030649 |
BEARING SET, Main (GREEN) |
| 8 |
5030650 |
BEARING SET, Main (BLACK) |
| 8 |
5030651 |
BEARING SET, Main (No color) |
| 8 |
5030652 |
BEARING SET, Main (YELLOW) |
| 8 |
5030653 |
BEARING SET, Main (BLUE) |
| 9 |
5030648 |
BEARING SET, Thrust |
| 10 |
5030550 |
SEAL, OIL |
| 11 |
5030967 |
PISTON Assy, 0.25mm O.S. |
| 13 |
5030968 |
PISTON Assy, 0.50mm O.S. |
| 15 |
5030634 |
HOUSING, Lower oil seal |
| 16 |
5030543 |
O RING |
