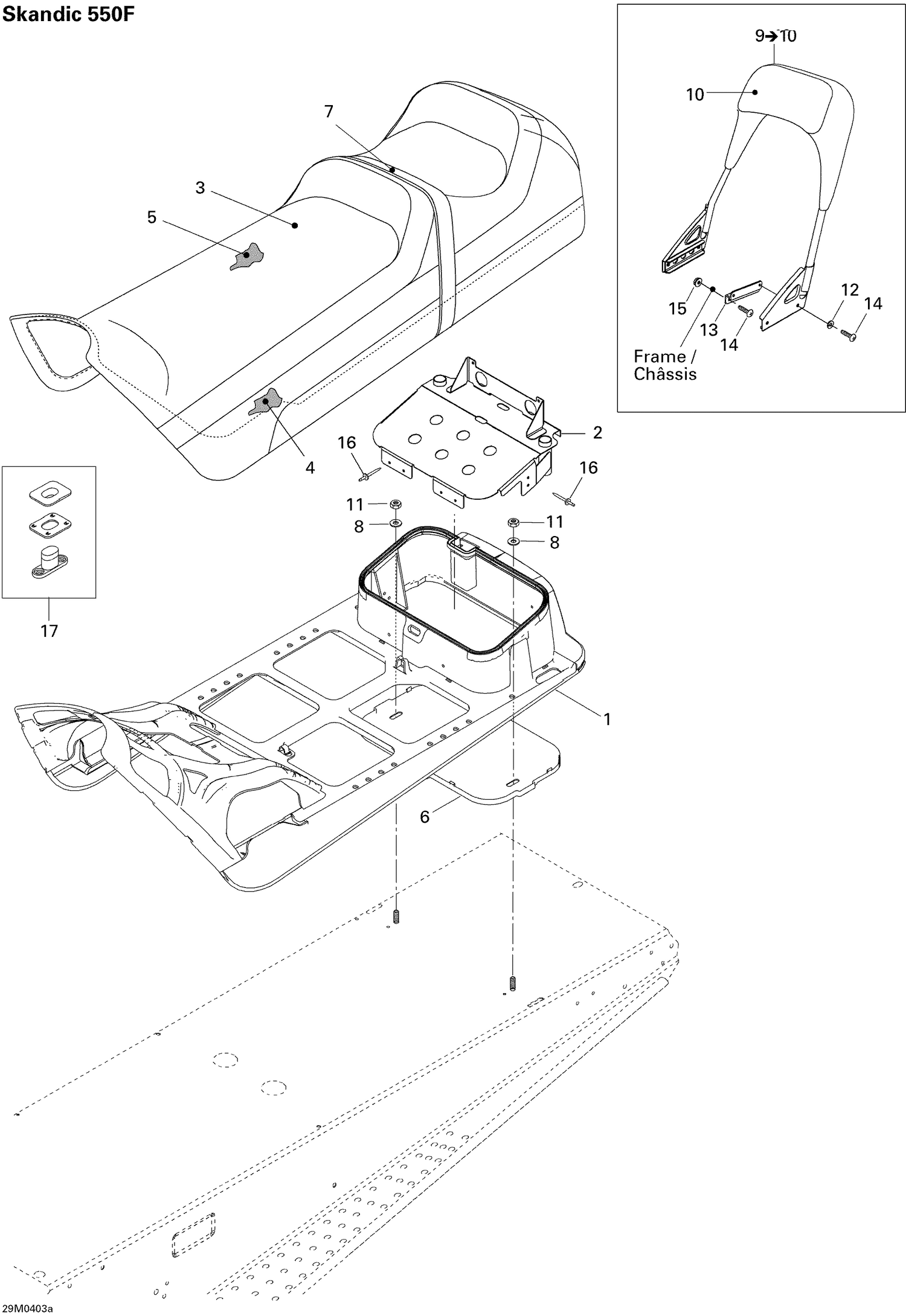

09- Seat SKANDIC 550F
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510003980 | Sub-Seat |
| 2 | 510003976 | Seat Painted Support |
| 3 | 510004105 | SEAT COVER - Call your local BRP dealership |
| 4 | 510003944 | SEAT FOAM - Call your local BRP dealership |
| 5 | 510004256 | Foam Seat |
| 6 | 572107601 | UNDER CHEST - Call your local BRP dealership |
| 7 | 510004038 | Seat Belt |
| 8 | 234082410 | Flat Washer 8 mm |
| 10 | 510004071 | Backrest Cover |
| 11 | 232581414 | Hex. Elastic Stop Nut M8 |
| 12 | 234181601 | Lock Washer 8 mm, Stainless |
| 13 | 510003609 | Z-Plate |
| 14 | 236282084 | Hex. Screw M8 X 20 |
| 15 | 233281414 | Hex. Flange Elastic Nut M8 |
| 16 | Not | Available As Spare Part - Rivet |
