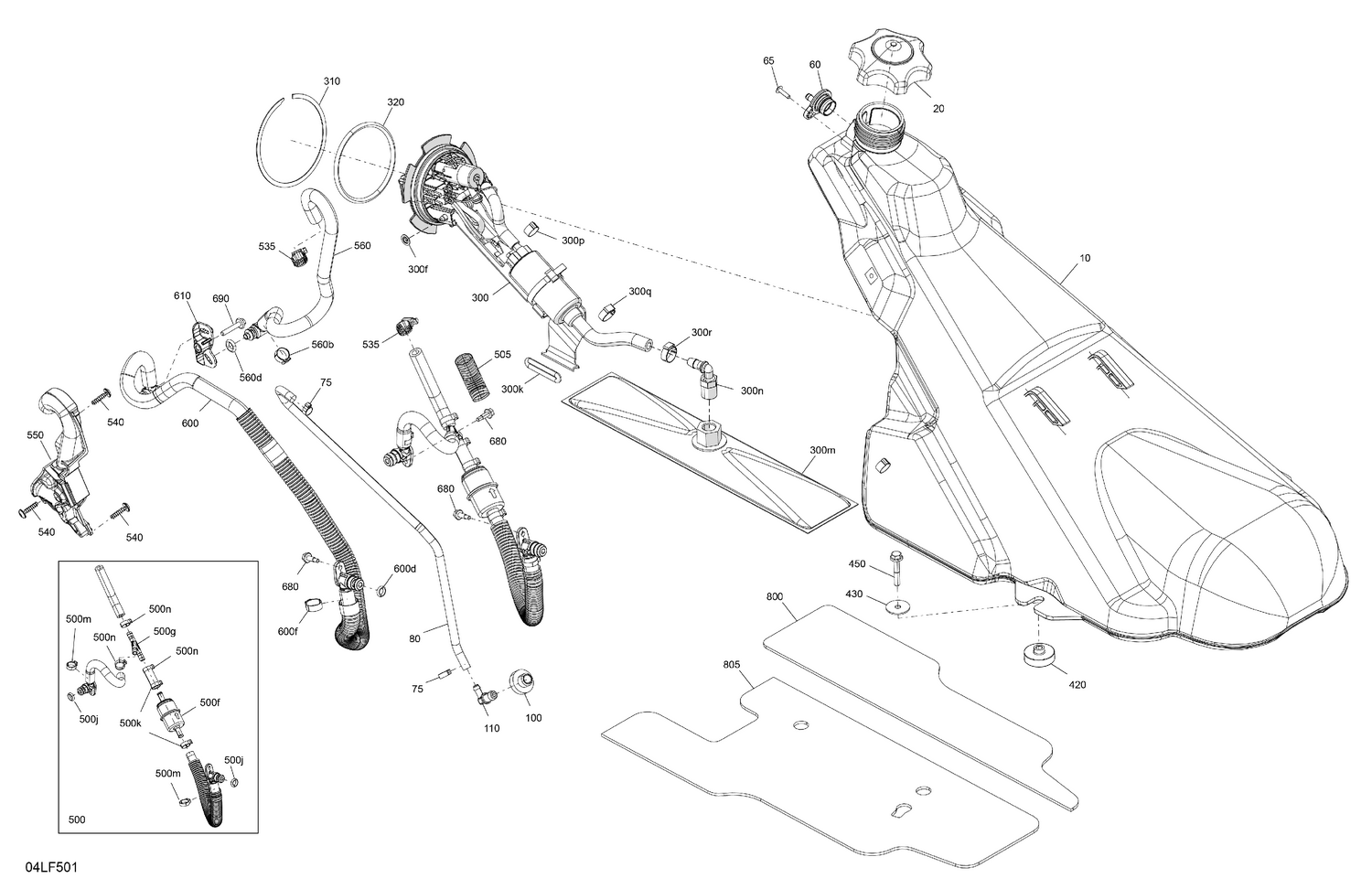

02- Engine - Fuel
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 415130437 | Fuel Tank KIt |
| 20 | 513033944 | Fuel Tank Cap |
| 60 | 513033864 | Fitting |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 75 | 293650262 | Oeticker Clamp |
| 80 | 219704410 | Hose |
| 100 | 709200285 | Grommet |
| 110 | 414580700 | Male Connector |
| 300f | 732610072 | Push Nut |
| 300k | 293300218 | O Ring |
| 300m | 861805584 | Fuel Filter |
| 300n | 293710218 | Elbow Pipe Fitting |
| 300p | 293650207 | Clamp Oetiker |
| 300q | 293650125 | Oetiker Clamp |
| 300r | 293650053 | Crimp Clamp |
| 310 | 513034097 | Circlip |
| 320 | 513033862 | O-Ring |
| 420 | 513034147 | Bushing |
| 430 | 503193995 | Washer |
| 450 | 250001255 | Flanged Hex Screw M6 X 35 |
| 500f | 513034047 | Fuel Filter |
| 500j | 513033668 | O-Ring |
| 500k | 293650047 | Crimp Clamp, 15.3-706R |
| 500m | 293650053 | Crimp Clamp |
| 500n | 293650125 | Oetiker Clamp |
| 505 | 219704408 | Sheath |
| 535 | 293650047 | Crimp Clamp, 15.3-706R |
| 540 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 550 | 513034204 | Hose Guide |
| 560b | 293650053 | Crimp Clamp |
| 560d | 513033668 | O-Ring |
| 600d | 513033668 | O-Ring |
| 600f | 293650053 | Crimp Clamp |
| 610 | 513034194 | Molded Hose Support |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 690 | 207552844 | Hex.Flange Screw M5 X 28 S.Grip |
| 800 | 513033866 | Insulated Foam |
