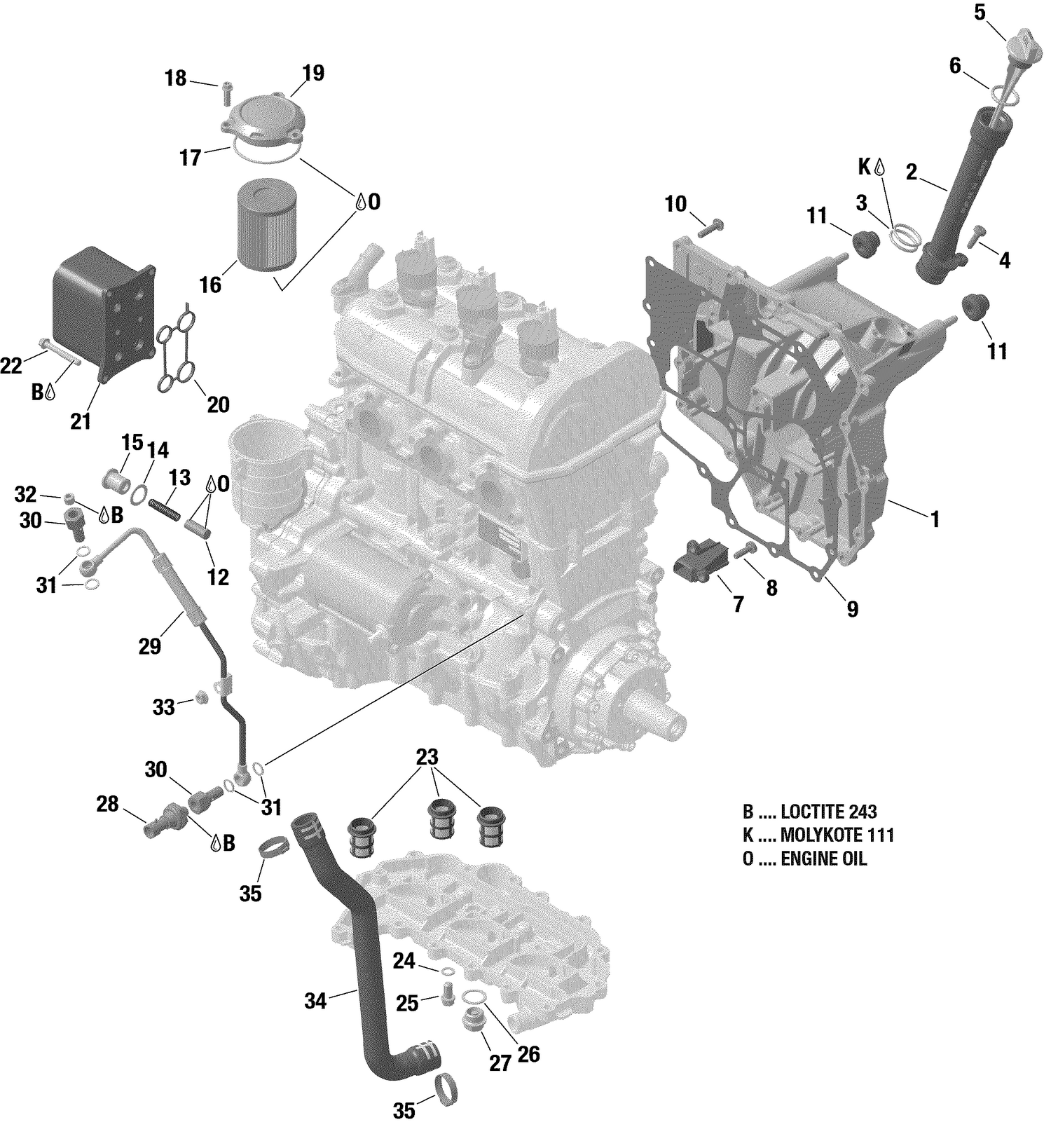

| Ref | Part Number | Description |
|---|
| 1 |
420656708 |
Oil Sump Cover This part replaces 420656705. |
| 2 |
420656901 |
Oil Filler Tube |
| 3 |
420430440 |
O-Ring |
| 4 |
420441383 |
Torx Flange Screw M6 X 20 |
| 5 |
420856668 |
Oil Dipstick |
| 6 |
420631640 |
O-Ring |
| 7 |
420456260 |
Oil Suction Pipe |
| 8 |
420441383 |
Torx Flange Screw M6 X 20 |
| 9 |
420431848 |
Oil Sump Cover Gasket This part replaces 420431845. |
| 10 |
420841548 |
Torx Flange Screw M6 X 25 |
| 11 |
420860150 |
Rubber Grommet |
| 12 |
420256591 |
Pressure Regulating Piston This part replaces 420256518. |
| 13 |
420239445 |
Spring |
| 14 |
420430624 |
Oil Pressure Regulator Gasket Ring This part replaces 420430623. |
| 15 |
420441373 |
Plug Screw |
| 16 |
420956123 |
Oil Filter |
| 17 |
420230923 |
O-Ring This part replaces 420650500. |
| 18 |
420440207 |
Torx Flange Screw M6 X 20 |
| 19 |
420612135 |
Oil Filter cover This part replaces 420612132. |
| 20 |
420431871 |
Gasket This part replaces 420431870. |
| 21 |
420656689 |
Oil Water Heat Exchanger |
| 22 |
420440324 |
Torx Flange Screw M6 X 45 |
| 23 |
420656680 |
Oil Sieve |
| 24 |
420950141 |
Sealing Ring |
| 25 |
420440852 |
Torx Flange Screw M8 X 16 |
| 26 |
420552280 |
Crush Washer |
| 27 |
420840278 |
Drain Plug M18 X 1.5 This part replaces 420840277. |
| 28 |
420256915 |
Oil Pressure Switch |
| 29 |
Not |
Available As Spare Part - Non Applicable |
| 30 |
Not |
Available As Spare Part - Non Applicable |
| 31 |
Not |
Available As Spare Part - Non Applicable |
| 32 |
Not |
Available As Spare Part - Non Applicable |
| 33 |
Not |
Available As Spare Part - Non Applicable |
| 34 |
Not |
Available As Spare Part - Non Applicable |
