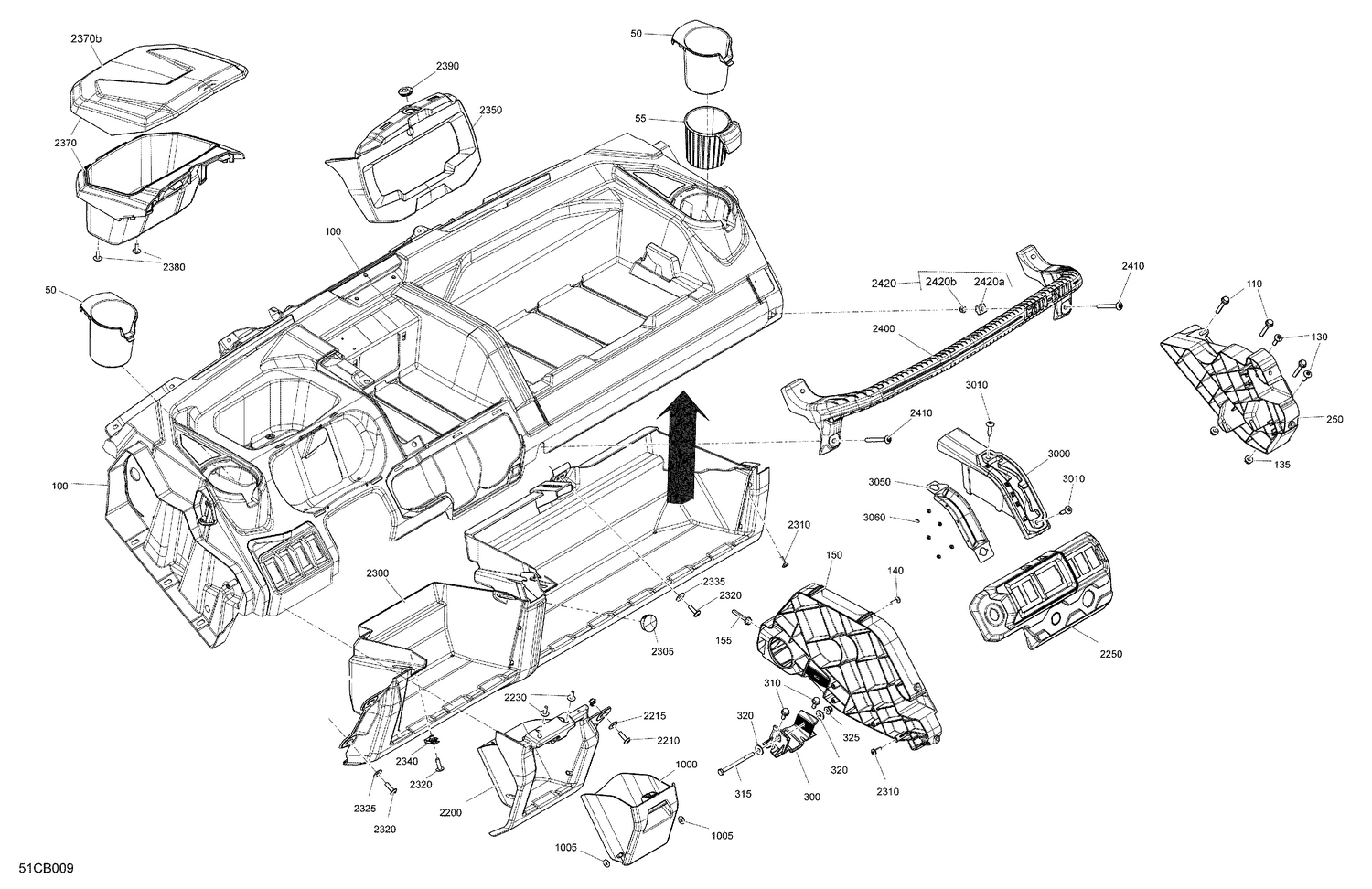

07- Cab Interior - Dashboard
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 707900288 | Cup Holder |
| 55 | 707900580 | Rubber Cap |
| 100 | 707901073 | Upper Dashboard This part replaces 707901050. |
| 110 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 130 | 250000712 | Torx Screw M6 X 20 |
| 135 | 233261494 | Hex. Flange Elastic Nut M6 |
| 140 | 250000720 | Torx Screw K50 X 16 |
| 150 | 707900249 | Dash Support |
| 155 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 250 | 707900367 | RH Support |
| 300 | 707900940 | Plier |
| 310 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 315 | 207068044 | Hex. Screw M6 X 80 |
| 320 | 234062670 | Stainless Steel Flat Washer |
| 325 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1000 | 707900252 | Drawer |
| 1005 | 293300194 | O-Ring |
| 2200 | 707900251 | LH Lower Dash This part replaces 707900251. |
| 2210 | 250000722 | Torx Screw M6 X 20 |
| 2215 | 234062670 | Stainless Steel Flat Washer |
| 2230 | 250000959 | Screw PT Type K-50 X 16 |
| 2250 | 715008266 | Switch Support Ass'y This part replaces 707900893. |
| 2300 | 707900250 | RH Lower Dash |
| 2305 | 710004993 | Cap |
| 2310 | 250000720 | Torx Screw K50 X 16 |
| 2320 | 250000722 | Torx Screw M6 X 20 |
| 2325 | 234062670 | Stainless Steel Flat Washer |
| 2335 | 234062670 | Stainless Steel Flat Washer |
| 2340 | 250100198 | Panel Nut M6 X 1.0 |
| 2350 | 707900892 | Gauge Support |
| 2370b | 703501087 | Storage Box Ass'y |
| 2380 | 250000959 | Screw PT Type K-50 X 16 |
| 2390 | 705003264 | Grommet |
| 2400 | 707900248 | Passenger Handhold |
| 2410 | 250000648 | Torx Screw M6 X 60 |
| 2420a | 269500252 | M6 Nut Housing Ass'y |
| 2420b | 232561600 | Hex. Elastic Stop Nut M6 |
| 3000 | 707900608 | Shifter Gate |
| 3010 | 250000728 | Torx Screw M6 X 25 |
| 3050 | 707900506 | Shifter Gate Deflector |
