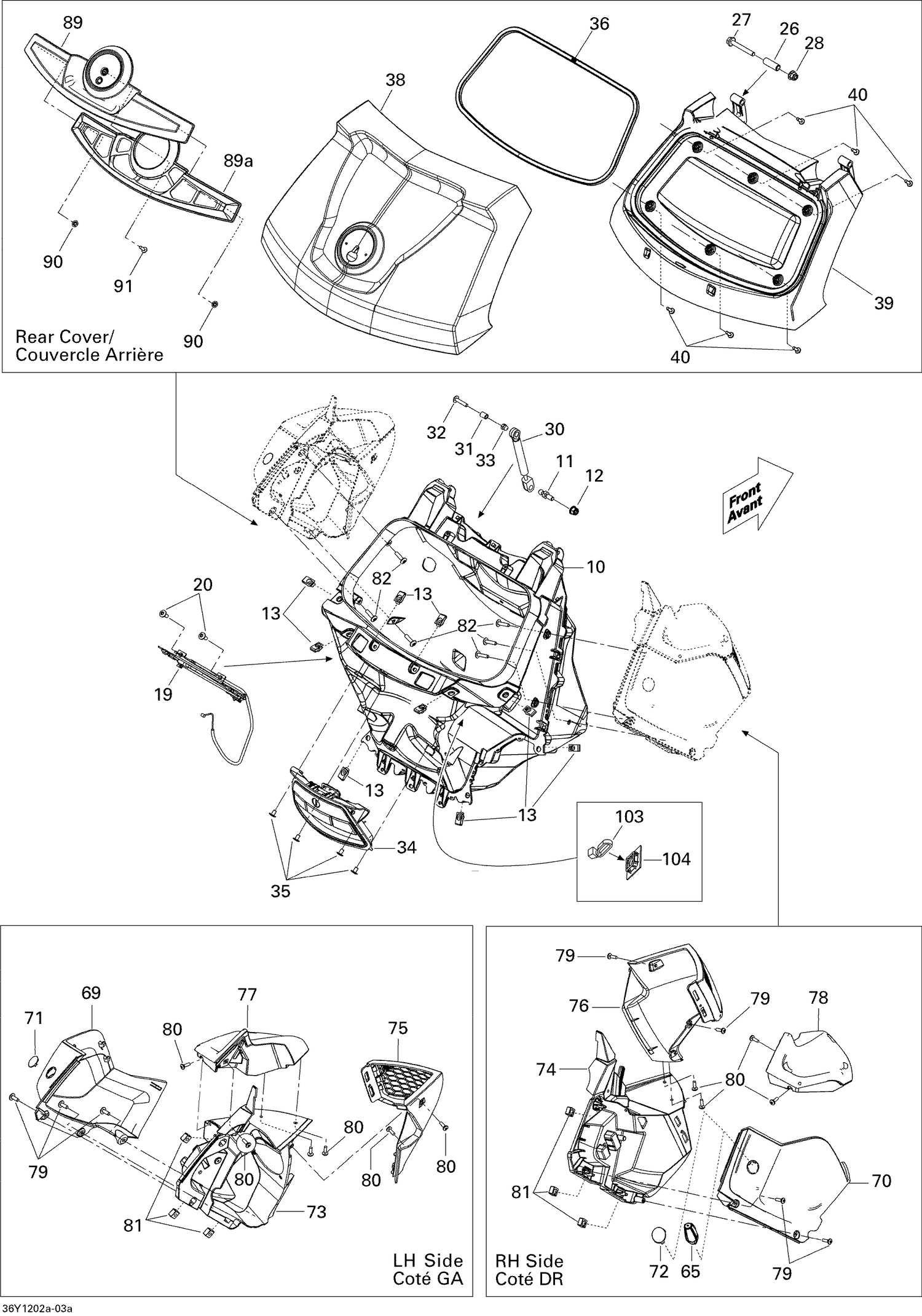

09- Luggages Rear
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708300044 | STORAGE - Call your local BRP dealership |
| 11 | 250300039 | Ball Head Stud |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 19 | 708301642 | Center Latch This part replaces 708300814. |
| 20 | 250000348 | Torx Truss Screw M6 X 16 |
| 26 | 708300394 | Spacer |
| 27 | 207664544 | Hex. Flange Screw M6 X 45 |
| 28 | 233261434 | Flange Elastic Nut M6 |
| 30 | 708300383 | Gaz Shock |
| 31 | 708300384 | Spacer |
| 32 | 250000843 | Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 33 | 232361493 | Domed Nut M6 |
| 34 | 708302620 | Main Control (WO lock cylinder) This part replaces 708300546. |
| 35 | 250000349 | Torx Truss Screw M6 X 10 |
| 36 | 293830188 | Seal, 1PC = 3M This part replaces 293830151. |
| 39 | 708300678 | Inner Cover |
| 40 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 73 | 708301555 | Sound Box LH This part replaces 708300036. |
| 74 | 708300037 | RH SOUND BOX - Call your local BRP dealership |
| 75 | 708300381 | Deep Black LH Grille |
| 76 | 708300382 | Deep Black RH Grille |
| 77 | 708000614 | Deep Black, LH Arm Rest |
| 78 | 708000615 | Deep Black, RH Arm Rest |
| 79 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 80 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 81 | 269500725 | M6 Nut Housing Ass'y |
| 82 | 250000284 | Torx Screw M6 x 25 |
| 103 | 293750002 | Tie Wrap 142 mm |
