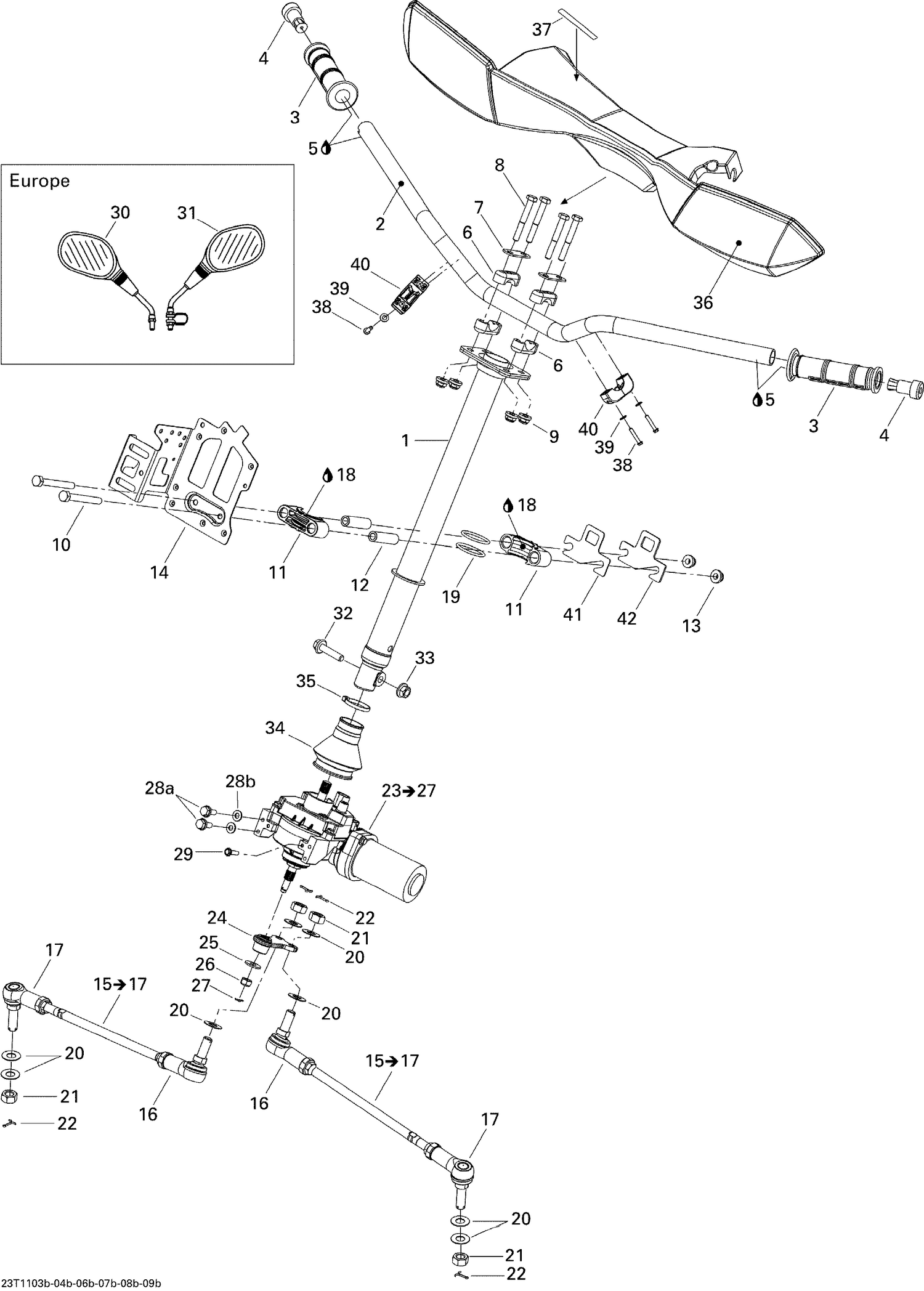

07- Steering XT, XT-P
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 715900573 | Tube-Main This part replaces 709400566. |
| 2 | 709401240 | Black, Handlebar This part replaces 709400877. |
| 3 | 709400493 | Handle Grip |
| 4 | 709400449 | End Piece |
| 5 | 293800100 | Loctite 406, 7 Oz |
| 6 | 709400919 | Steering Support This part replaces 506151622. |
| 7 | 709400509 | Stiffner |
| 8 | 207086046 | Hex. Screw M8 X 60 |
| 9 | 233281416 | Hex. Elastic Flange Nut M8 |
| 10 | 207087044 | Hex. Screw M8 X 70 |
| 11 | 709400471 | Half Bushing |
| 12 | 709400072 | BUSHING - Call your local BRP dealership |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 709400751 | MODULE SUPPORT - Call your local BRP dealership |
| 16 | 709402303 | LH Ball Joint This part replaces 709400486. |
| 17 | 709400487 | Ball Joint, RH Threads |
| 18 | 293550010 | Synthetic Grease, 400 G |
| 19 | 293300068 | O-Ring |
| 20 | 706200281 | Hardened Washer |
| 21 | 250100099 | Nut M12 |
| 22 | 211400013 | Cotter Pin |
| 23 | 709401001 | POWER STEERING ASSIST - Call your local BRP dealership |
| 25 | 706200281 | Hardened Washer This part replaces 250200086. |
| 26 | 250000047 | Hex. Flange Elastic Nut M12 |
| 27 | 211400013 | Cotter Pin |
| 28a | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 28b | 234281474 | Conical Spring Washer M8 |
| 29 | 250000992 | Screw-Forming Hex.Hd.Fl.Bzn M5 X 20 This part replaces 210252040. |
| 32 | 207683544 | Hex. Flange Screw M8 X 35 |
| 33 | 233281414 | Hex. Flange Elastic Nut M8 |
| 34 | 709400674 | Bellows |
| 35 | 414115200 | Tie-Rap 180 mm |
| 36 | 703100352 | Handle Guard Ass'y, XT This part replaces 703100251. |
| 37 | 704905284 | Decal "Dynamic Power Steering" This part replaces 704901558. |
| 38 | 241142560 | Hex. Flange Screw K40 X 25 |
| 39 | 211200035 | Flat Washer |
| 40 | 517303264 | U-Clamp |
| 41 | 709400734 | SHIM 2 MM - Call your local BRP dealership |
