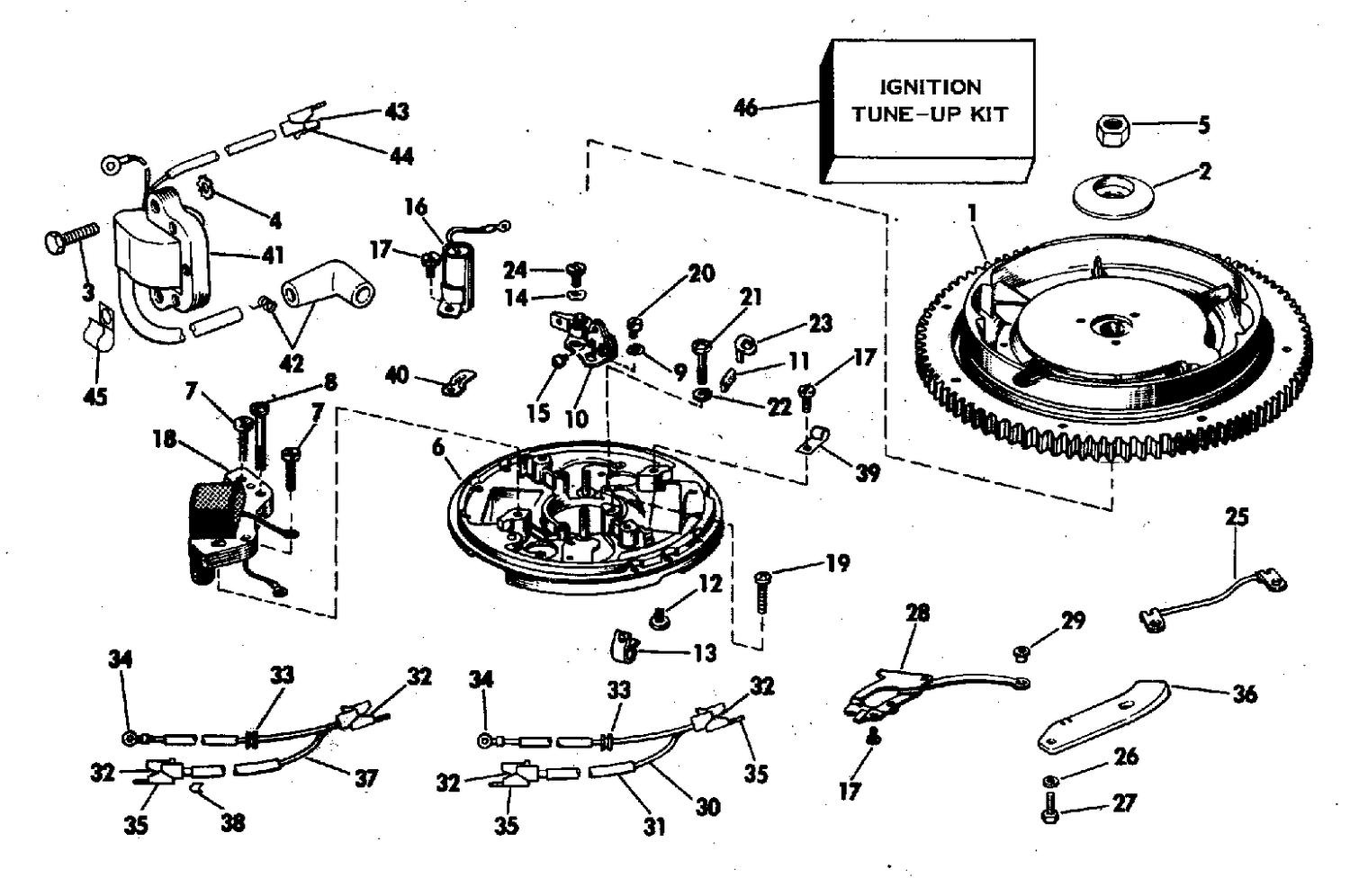

| Ref | Part Number | Description |
|---|
| 1 |
0581565 |
FLYWHEEL ASSY |
| 2 |
0311232 |
COVER |
| 3 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0309646. |
| 5 |
0301988 |
NUT |
| 6 |
0581131 |
ARMATURE PLATE |
| 7 |
0313031 |
SCREW, Lamination |
| 8 |
0511111 |
SCREW, Anchor block |
| 9 |
0510391 |
BOW WAHSER,Eccentric scr. |
| 10 |
0580148 |
BEAKER,Assy |
| 12 |
0510278 |
SCREW |
| 13 |
0510371 |
CABLE CLAMP |
| 14 |
0510208 |
BOW WASHER |
| 15 |
0510194 |
SCREW |
| 16 |
0581419 |
CONDENSER |
| 18 |
0581130 |
COIL & LAMINATION |
| 19 |
0511110 |
SCREW, Armature plae |
| 20 |
0510185 |
ECCENTRIC SCREW |
| 21 |
0310350 |
SCREW, Armature plate |
| 22 |
0360252 |
WASHER This part replaces 0306311. |
| 23 |
0510188 |
CLIP, Oiler |
| 24 |
0510278 |
SCREW |
| 25 |
0580733 |
FIL, masse solénoïde |
| 28 |
0581441 |
LINK, Stop & bushing |
| 29 |
0307841 |
BUSHING, Control lever |
| 30 |
0581125 |
LEAD, Lower |
| 31 |
0510998 |
SLEEVE |
| 34 |
0510426 |
RING TERMINAL |
| 36 |
0314842 |
CAM, Throttle control |
| 37 |
0581126 |
LEAD, Upper (Incl items 34 thru 39) |
| 38 |
0511071 |
CLIP |
| 39 |
0314200 |
CLAMP |
| 40 |
0510190 |
CLAMP |
| 41 |
0581370 |
IGNITION COIL ASSEMBLY |
| 45 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 0581443 |
0581443 |
ARMATURE PLATE ASSY |
