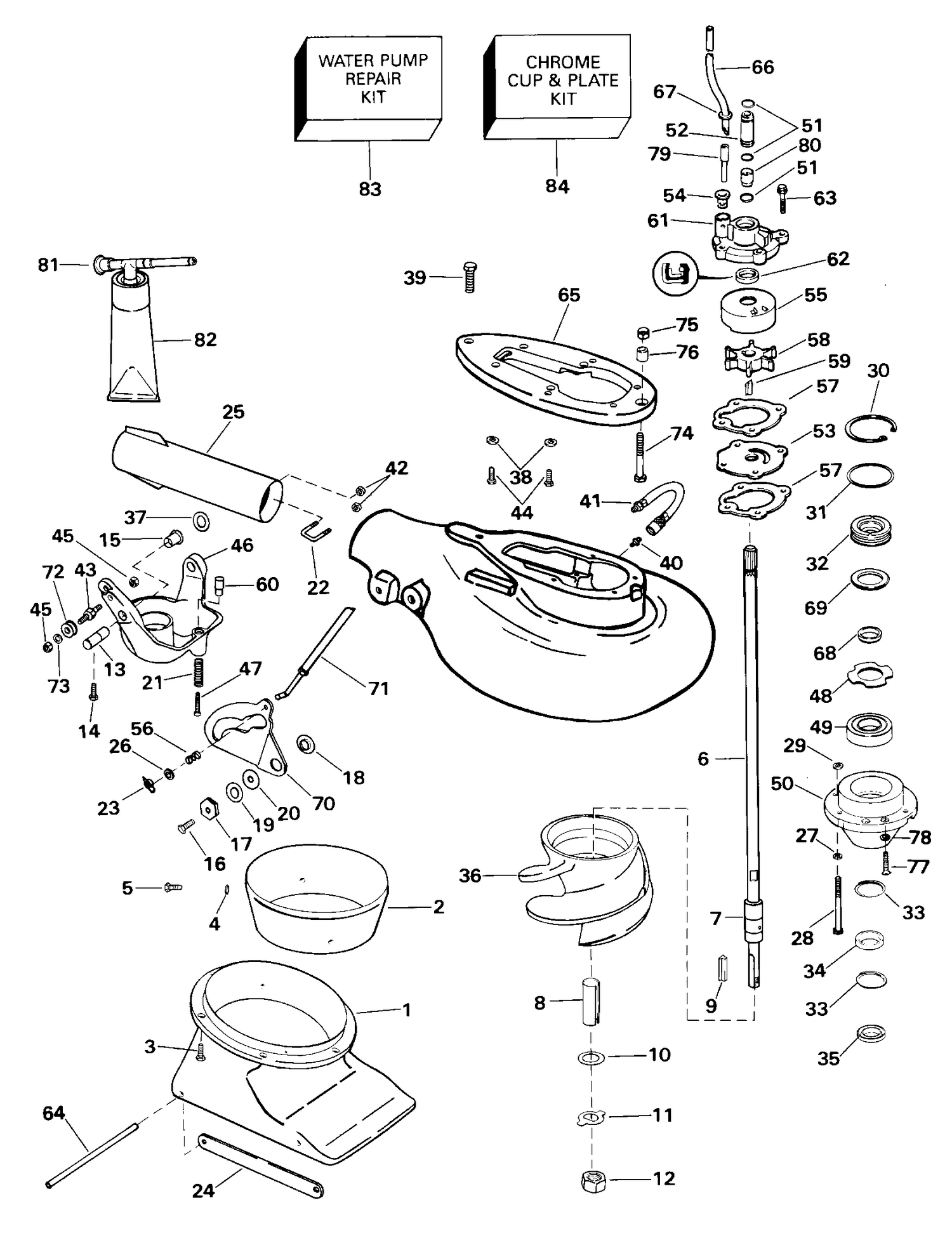

| Ref | Part Number | Description |
|---|
| 1 |
0437809 |
INTAKE ASSY. |
| 2 |
0342355 |
LINER |
| 3 |
0336870 |
BOLT, Intake to housing |
| 4 |
0336869 |
WASHER, Bolt, bearing housing |
| 5 |
0342356 |
BOLT, Liner to intake |
| 6 |
0437810 |
DRIVESHAFT & SLEEVE ASSY. |
| 7 |
0336882 |
THRUST RING |
| 8 |
0336941 |
SLEEVE |
| 9 |
0336927 |
KEY |
| 10 |
0336945 |
SHIM |
| 11 |
0336925 |
KEEPER, Nut |
| 12 |
0336943 |
NUT, Driveshaft |
| 13 |
0336926 |
PIN, Gate |
| 14 |
0336871 |
BOLT, Bearing housing |
| 15 |
0336916 |
BUSHING, Pin |
| 16 |
0342357 |
SCREW, Cam to housing |
| 17 |
0336999 |
ECCENTRIC, Cam |
| 18 |
0337001 |
BUSHING, Cam |
| 19 |
0337003 |
SHIM, Cam |
| 20 |
0337002 |
WASHER |
| 21 |
0337008 |
SPRING, Bumper, gate |
| 22 |
0336921 |
CLIP, Exhaust tube |
| 24 |
0336942 |
BAR, Grill |
| 25 |
0434708 |
TUBE, Exhaust |
| 27 |
0336869 |
WASHER, Bolt, bearing housing |
| 28 |
0342358 |
BOLT |
| 29 |
0336877 |
O-RING, Bearing housing |
| 30 |
0336915 |
RETAINING RING |
| 31 |
0336936 |
O-RING, Bearing housing |
| 32 |
0336939 |
RING, SEAL |
| 33 |
0336876 |
SPIROLOX |
| 34 |
0336878 |
SEAL, Inner |
| 35 |
0336879 |
SEAL, Outer |
| 36 |
0437811 |
IMPELLER ASSY. |
| 37 |
0336917 |
WAVE WASHER |
| 38 |
0336929 |
WASHER, Screw, exh. hsg. |
| 39 |
0336931 |
SCREW, Exh. hsg |
| 40 |
0336872 |
GREASE FITTING |
| 41 |
0434698 |
HOSE ASSY., Lube |
| 43 |
0337006 |
NUT, Shaft, gate |
| 44 |
0328333 |
SCREW |
| 46 |
0336859 |
GATE, Reverse |
| 47 |
0336998 |
SCREW, Bumper |
| 48 |
0336922 |
THRUST WASHER, Bearing |
| 49 |
0336937 |
BEARING |
| 50 |
0342360 |
BEARING CARRIER |
| 52 |
0326692 |
SPACER, Impeller housing |
| 56 |
0342466 |
SPRING |
| 60 |
0337007 |
BUMPER, Gate |
| 64 |
0336880 |
ROD, Grill |
| 65 |
0342361 |
ADAPTER PLATE |
| 66 |
0395339 |
WATER TUBE |
| 68 |
0336938 |
COLLAR |
| 69 |
0336923 |
SPACER |
| 70 |
0336860 |
CAM, Shift |
| 71 |
0437851 |
SHIFT ROD ASSY. |
| 72 |
0437820 |
ROLLER & BUSHING |
| 73 |
0336868 |
WASHER, Nut |
| 74 |
0342366 |
BOLT |
| 77 |
0342621 |
SCREW |
| 78 |
0342468 |
WASHER, Bearing housing |
| 79 |
0342368 |
EXTENSION, Water tube |
| 80 |
0342369 |
DRIVESHAFT SHIELD & O-RING |
| 81 |
0434697 |
GREASE GUN |
| 82 |
0508303 |
GREASE, 8 oz. tube |
| 83 |
0391631 |
WATER PUMP KIT |
| 0202893 |
"O" |
RING, Drive shaft 0202893 |
| 0202893 |
**JOINT |
TORIQUE, bouton & arbre 0202893 |
