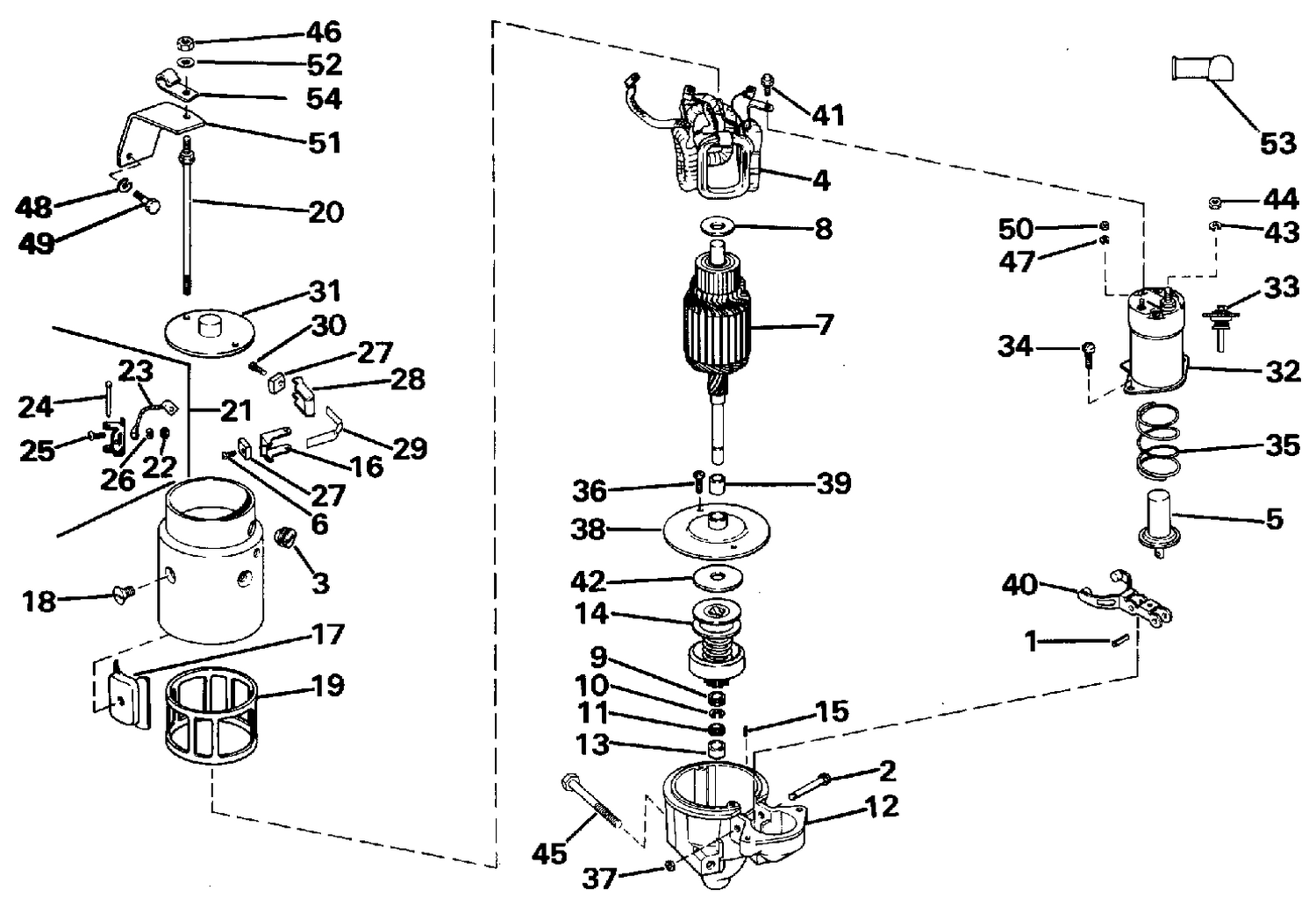

| Ref | Part Number | Description |
|---|
| 1 |
1894321 |
PIN |
| 2 |
1945804 |
SHAFT |
| 3 |
1894436 |
GROMMET |
| 4 |
1877306 |
FIELD COIL |
| 4 |
1974183 |
FIELD COIL |
| 5 |
1978297 |
PLUNGER |
| 6 |
0443527 |
SCREW, Ground brush |
| 7 |
0830842 |
ARMATURE |
| 7 |
1892281 |
ARMATURE |
| 8 |
0818265 |
WASHER |
| 9 |
1927849 |
COLLAR, Stop |
| 10 |
1927848 |
RIKNG |
| 11 |
1927850 |
COLLAR, Thrust |
| 12 |
0830845 |
DRIVE HOUSING (incl bushing) |
| 13 |
1932190 |
BUSHING, Drive end |
| 14 |
1875687 |
DRIVE ASSEMBLY |
| 15 |
0809593 |
DOWEL PIN |
| 16 |
1940477 |
BRUSH HODLER,Grounded |
| 17 |
0810601 |
POLE SHOE |
| 17 |
1931129 |
POLE SHOE |
| 18 |
1970469 |
SCREW, Pole shoe |
| 19 |
1976832 |
INSULATOR, Fixed coil |
| 20 |
1939970 |
THRU BOLT |
| 20 |
1941111 |
THRU BOLT |
| 21 |
1928015 |
SUPPORT PACKAGE |
| 27 |
1906945 |
BRUSH |
| 28 |
1926618 |
BRUSH HOLDER, Insulated |
| 29 |
1926622 |
BRUSH,Spring |
| 30 |
1967747 |
SCREW |
| 31 |
1974157 |
FRAME & BUSHING |
| 32 |
1114531 |
SWITCH |
| 33 |
1978337 |
CONTACT ASSY, Switch |
| 34 |
9413260 |
SCREW, Switch |
| 35 |
1978281 |
RETURN SPRING |
| 36 |
1978862 |
SCREW |
| 37 |
11505767 |
RETAINING RING |
| 38 |
1956939 |
PLATE |
| 39 |
1957017 |
BUSHING, Center |
| 40 |
0801433 |
LEVER, Shift |
| 41 |
9427815 |
SCREW & WASHER |
| 42 |
0821453 |
THRUST WASHER |
| 43 |
3852521 |
LOCK WASHER, Metric This part replaces 0911146. |
| 44 |
3852519 |
NUT, Starter solenoid, metric This part replaces 0911144. |
| 45 |
1366042 |
SCREW, Starter short |
| 45 |
14057099 |
SCREW, Starter, long |
| 47 |
3852520 |
LOCK WASHER, Ground This part replaces 0911145. |
| 49 |
0908581 |
SCREW, Starter motor brace |
| 50 |
3852518 |
NUT, Solenoid, metric This part replaces 0911143. |
| 51 |
3852482 |
BRACKET This part replaces 0910000. |
| 52 |
0306407 |
LOCCKWASHER,Cover latch |
| 53 |
3852487 |
BOOT, Battery cable This part replaces 0910111. |
| 0983790 |
0983790 |
STARTER MTR & STUD ASSY |
