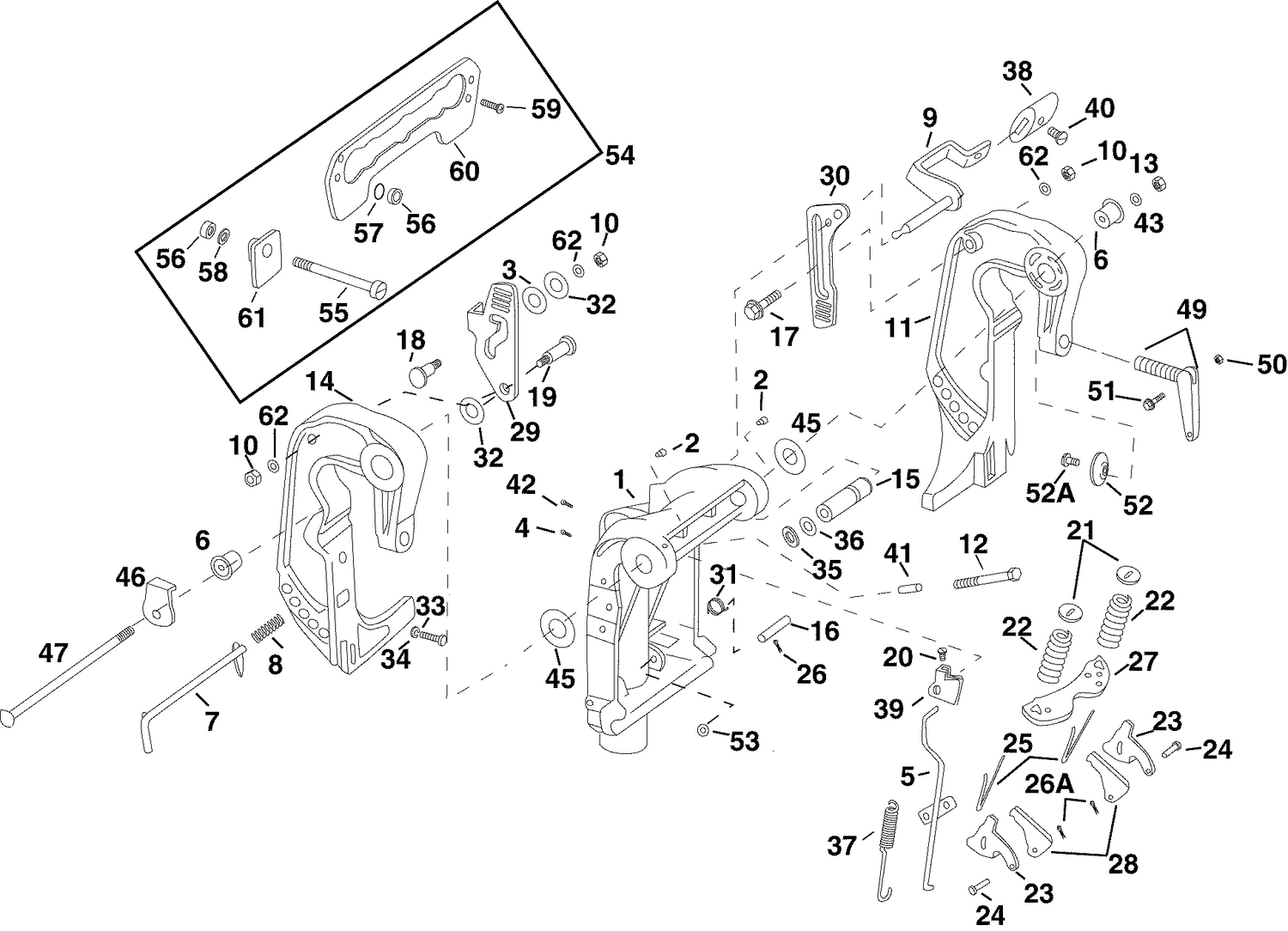

| Ref | Part Number | Description |
|---|
| 1 |
0351314 |
SWIVEL BRACKET |
| 3 |
0303864 |
WASHER, Outer |
| 4 |
0317419 |
SCREW |
| 5 |
0387531 |
ROD & BRACKET |
| 6 |
0325914 |
BUSHING, Stern bracket |
| 7 |
0436212 |
THRUST ROD ASSEMBLY |
| 8 |
0307068 |
SPRING & Thrust rod |
| 9 |
5008673 |
LEVER, SHAFT & PIN ASSEMBLY This part replaces 5005691. |
| 11 |
0350624 |
STERN BRACKET, Port |
| 12 |
0317525 |
SCREW, Steer. friction |
| 15 |
0351264 |
BUSHING |
| 16 |
0315961 |
PIN, Link to bracett |
| 17 |
0351269 |
SCREW, Stop link |
| 18 |
0351271 |
SCREW, Stop link to stern bracket |
| 19 |
0351270 |
SCREW, Stop link to stern bracket |
| 21 |
0314007 |
CUP, Reverse lock spring |
| 22 |
0313817 |
RESSORT, verrouillage de marche arrière |
| 23 |
0315964 |
LINK, Reverse lock |
| 24 |
0315962 |
GOUPILLE, tringlerie vers levier |
| 25 |
0315965 |
DISPOSITIF DE RETENUE, ressort |
| 27 |
0321234 |
PLAQUE, verrouillage de marche arrière |
| 28 |
0333871 |
LEVER, Locking |
| 29 |
0351218 |
STOP LINK, Starboard |
| 30 |
0351217 |
STOP LINK & ASSEMBLY, Port |
| 31 |
0315967 |
SPIRNG, Link |
| 33 |
0552940 |
SCREW, Stern bracket |
| 35 |
0351321 |
WASHER, Lever & shaft assembly |
| 36 |
0351320 |
SPRING WASHER, Lever & shaft |
| 37 |
0321426 |
SPRING, Reverse lock |
| 38 |
0329012 |
KNOB Tilt & reverse lock handle |
| 39 |
0351248 |
BELLCRANK |
| 40 |
0318238 |
SCREW |
| 41 |
0317418 |
PIN, Steer. friction |
| 42 |
0317416 |
SCREW, Thrust ring |
| 43 |
0330179 |
WASHER |
| 45 |
0317782 |
THRUST WASHER |
| 46 |
0325017 |
NUT, Tilt lock pin |
| 47 |
0327997 |
BOLT, Tilt |
| 54 |
0394219 |
KIT DE MONTAGE DE TABLEAU ARRIÈRE |
