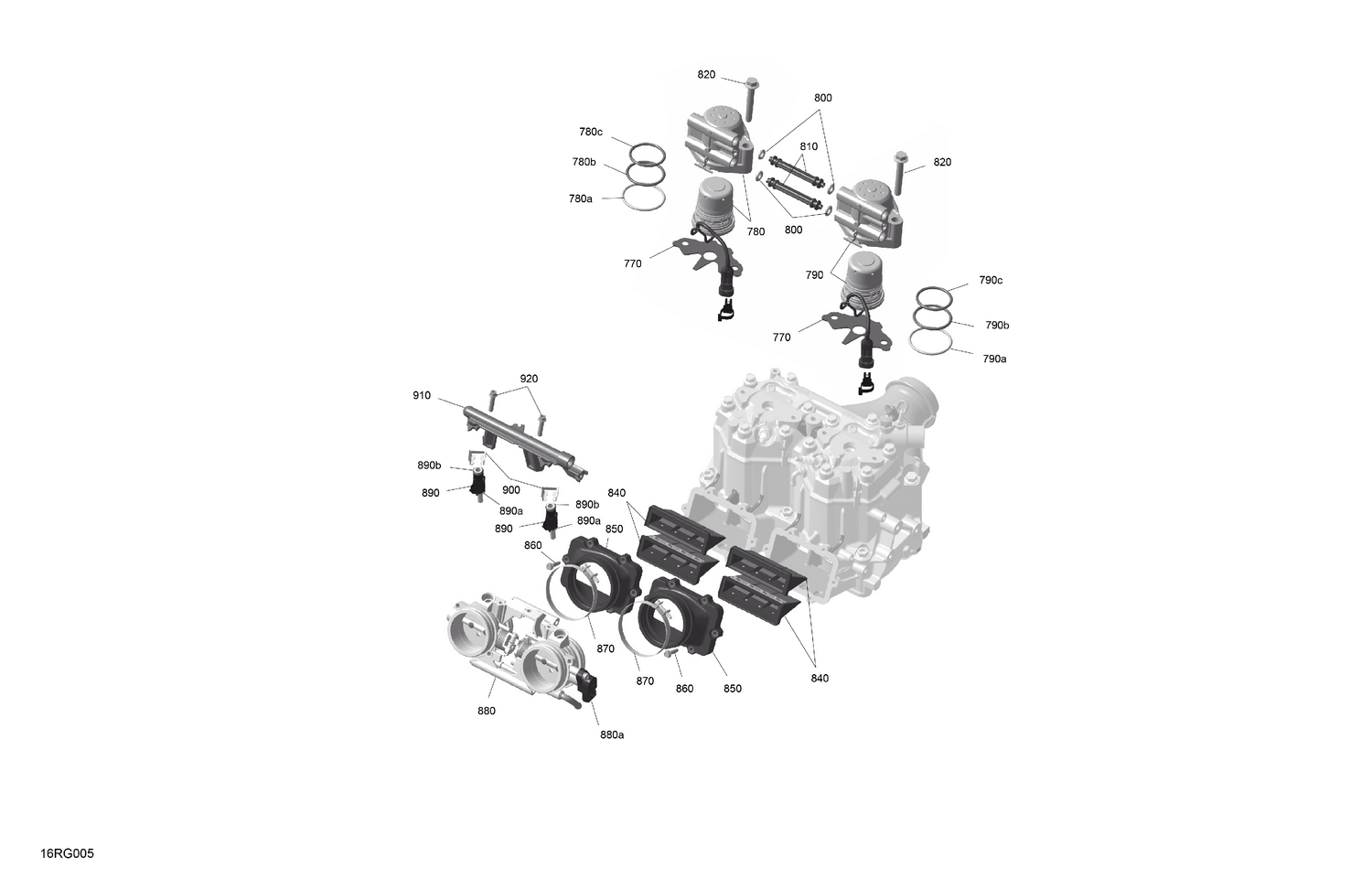

01- ROTAX - Electronic Fuel Injection
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 770 | 420430057 | Isolating Plate |
| 780a | 415129497 | Crush Ring |
| 780b | 415129498 | O-Ring |
| 780c | 415129499 | O-Ring |
| 790a | 415129497 | Crush Ring |
| 790b | 415129498 | O-Ring |
| 790c | 415129499 | O-Ring |
| 800 | 420430775 | O-Ring |
| 810 | 420874190 | Tube |
| 820 | 420840097 | Hex Screw M9 X 60 |
| 840 | 420924798 | Reed Valve Ass'y |
| 850 | 420867390 | Intake Socket |
| 860 | 420841556 | Tapping Screw M5 X 20 |
| 870 | 420251208 | Clamp |
| 880a | 420866680 | Throttle Valve Position Sensor |
| 890a | 420831050 | O-Ring |
| 890b | 420430775 | O-Ring |
| 900 | 420853031 | Clip |
| 910 | 420874159 | Fuel Rail |
