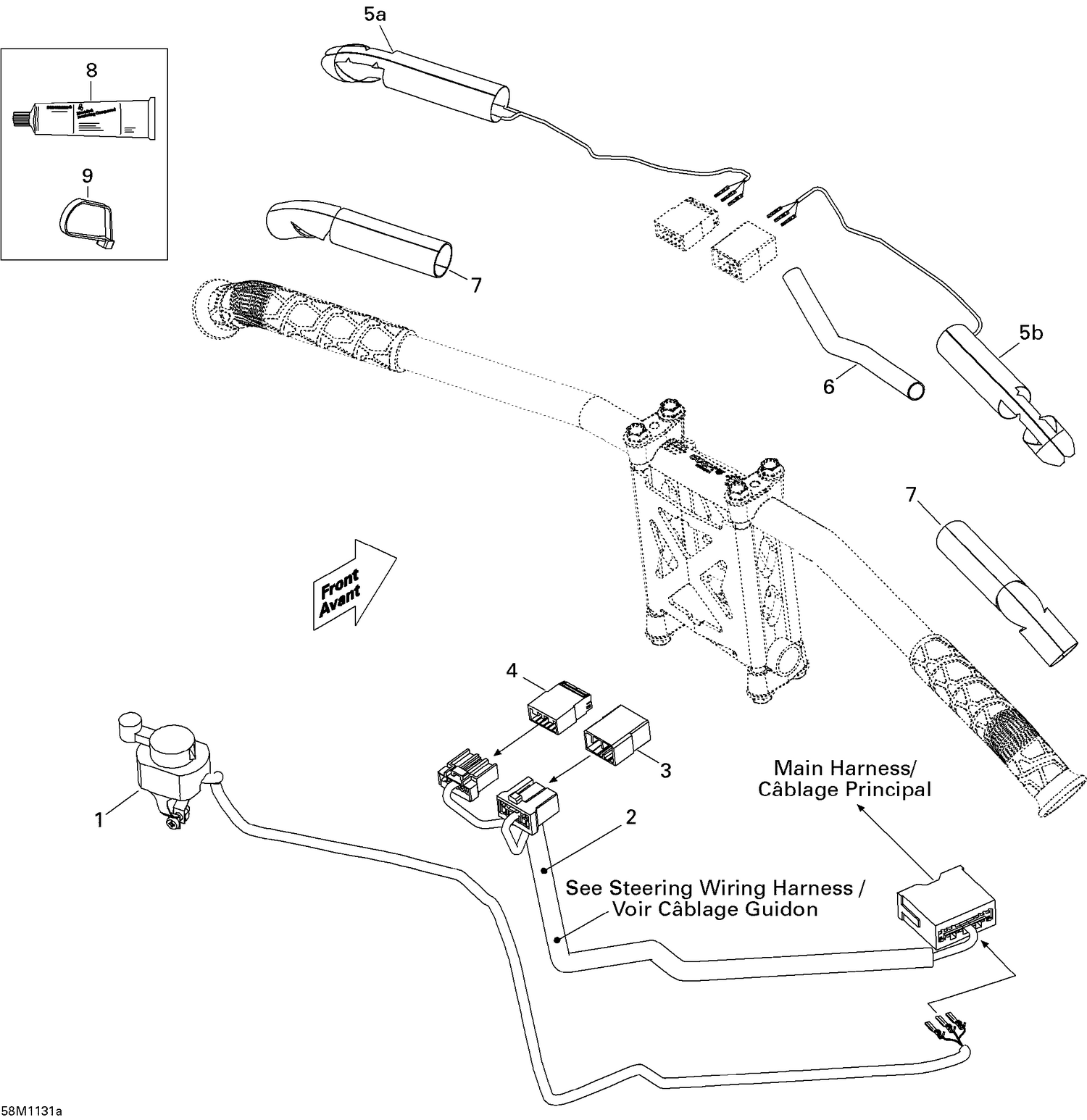

10- Electrical Accessories, Steering STD
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176918 | DIMMER SWITCH - Call your local BRP dealership |
| 2 | 515176911 | Steering Wiring Harness |
| 3 | 515175817 | Male Terminal Housing, 8 Circuits |
| 4 | 515175662 | Male Terminal Housing, 6 Circuits |
| 6 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 7 | 506152360 | Insulant |
| 8 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 9 | 293750001 | Tie Wrap 94 mm |
| 9 | 293750002 | Tie Wrap 142 mm |
| 9 | 293750008 | Tie Wrap 368 mm |
| 9 | 414115200 | Tie-Rap 180 mm |
