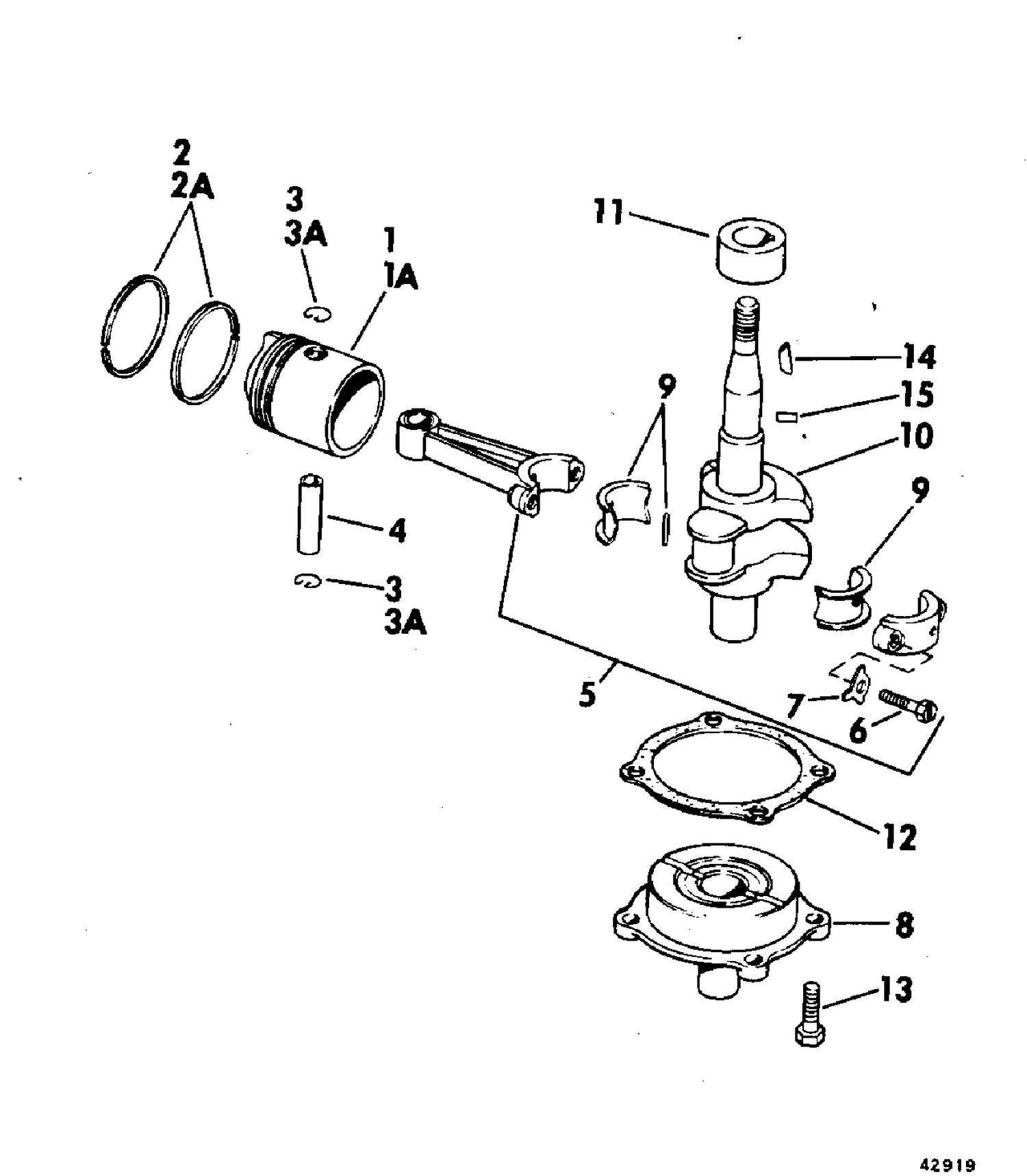

CRANKSHAFT & PISTON
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0384651 | PISTON ASSY., Std |
| 1A | 0384666 | PISOTN ASSY., 030 O.S. |
| 2 | 0383920 | RING SET, |
| 2A | 0384312 | RING SET , .030 o. S |
| 4 | 0203151 | WRIST PIN |
| 5 | 0383010 | CONNECTING ROD ASSY |
| 6 | 0307560 | SCREW ROD CAP |
| 7 | 0307558 | LOCKPALTE,Cap screw |
| 8 | 0383231 | BEARING HOUSING ASSY |
| 9 | 0378371 | LINDERS & NEEDLES, Rod |
| 10 | 0328838 | CRANKSHAFT This part replaces 0314696. |
| 11 | 0510167 | CAM, Magneto |
| 12 | 0314315 | GASKET HOUSING |
| 13 | 0300646 | VIS, ancrage |
| 14 | 0120395 | KEY |
