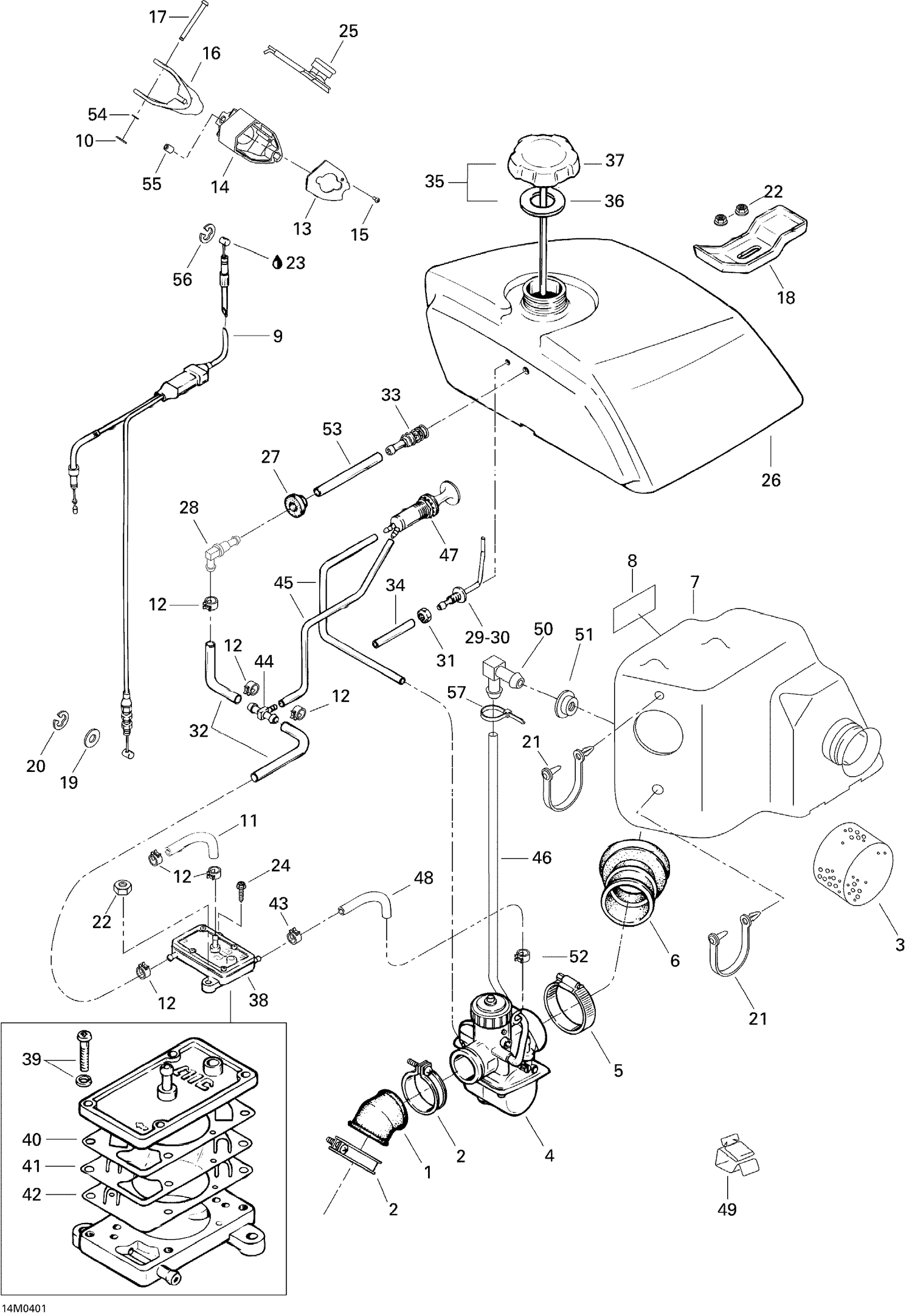

02- Fuel System
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570025400 | Rubber Flanged |
| 2 | 408801900 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 3 | 414819900 | Air Filter |
| 4 | 403138753 | Carburetor Vm-34 |
| 5 | 408802000 | Tridon Gear Clamp |
| 6 | 570136300 | Carburetor Adaptor |
| 7 | 508000279 | Air Intake |
| 8 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 9 | 512059614 | THROTTLE CABLE - Call your local BRP dealership |
| 10 | 414439000 | Circlip |
| 11 | 219704549 | Hose This part replaces 219704439. |
| 12 | 414415200 | Spring Clamp |
| 13 | 512060390 | Plate This part replaces 512059507. |
| 14 | 512060603 | Throttle Housing This part replaces 512059334. |
| 15 | 414473200 | Screw |
| 16 | 512060214 | Handle Ass'y This part replaces 512059623. |
| 17 | 414438700 | Lever Pin |
| 18 | 517159500 | Bracket Seat-tank |
| 19 | 234081100 | Flat Washer 8 mm, Nylon |
| 20 | 414753500 | Circlip |
| 21 | 414379300 | CABLE CLIP - Call your local BRP dealership |
| 22 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 23 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 24 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 25 | 515175410 | Kill Switch |
| 26 | 513033097 | FUEL TANK - Call your local BRP dealership |
| 27 | 709200285 | Grommet This part replaces 570135100. |
| 28 | 414580600 | Elbow Male Connector |
| 30 | 513031701 | Fitting |
| 31 | 396302200 | HEX. NUT 5/16-18 YIC - Call your local BRP dealership |
| 32 | 219704549 | Hose This part replaces 219704439. |
| 33 | 414865700 | Fuel Filter |
| 34 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 36 | 513033025 | Fuel Tank Cap This part replaces 570134800. |
| 37 | 513033025 | Fuel Tank Cap This part replaces 580259400. |
| 39 | 404118500 | Screw |
| 40 | 404901600 | Packing (Cap) |
| 41 | 404901700 | Diaphragm |
| 42 | 404901800 | Membrane |
| 43 | 414415200 | Spring Clamp |
| 44 | 414222500 | T-fitting |
| 45 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 46 | 219704549 | Hose This part replaces 219704439. |
| 47 | 415060500 | Primer |
| 48 | 219704549 | Hose This part replaces 219704439. |
| 49 | 414227300 | Clip |
| 50 | 414814100 | Male Connector |
| 51 | 513032908 | Grommet |
| 52 | 513033014 | Spring Clamp |
| 53 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 54 | 234051600 | Flat Washer M5, Stainless |
| 55 | 414440800 | Socket Set Screw M8 X 10 |
| 56 | 293370020 | Circlip |
