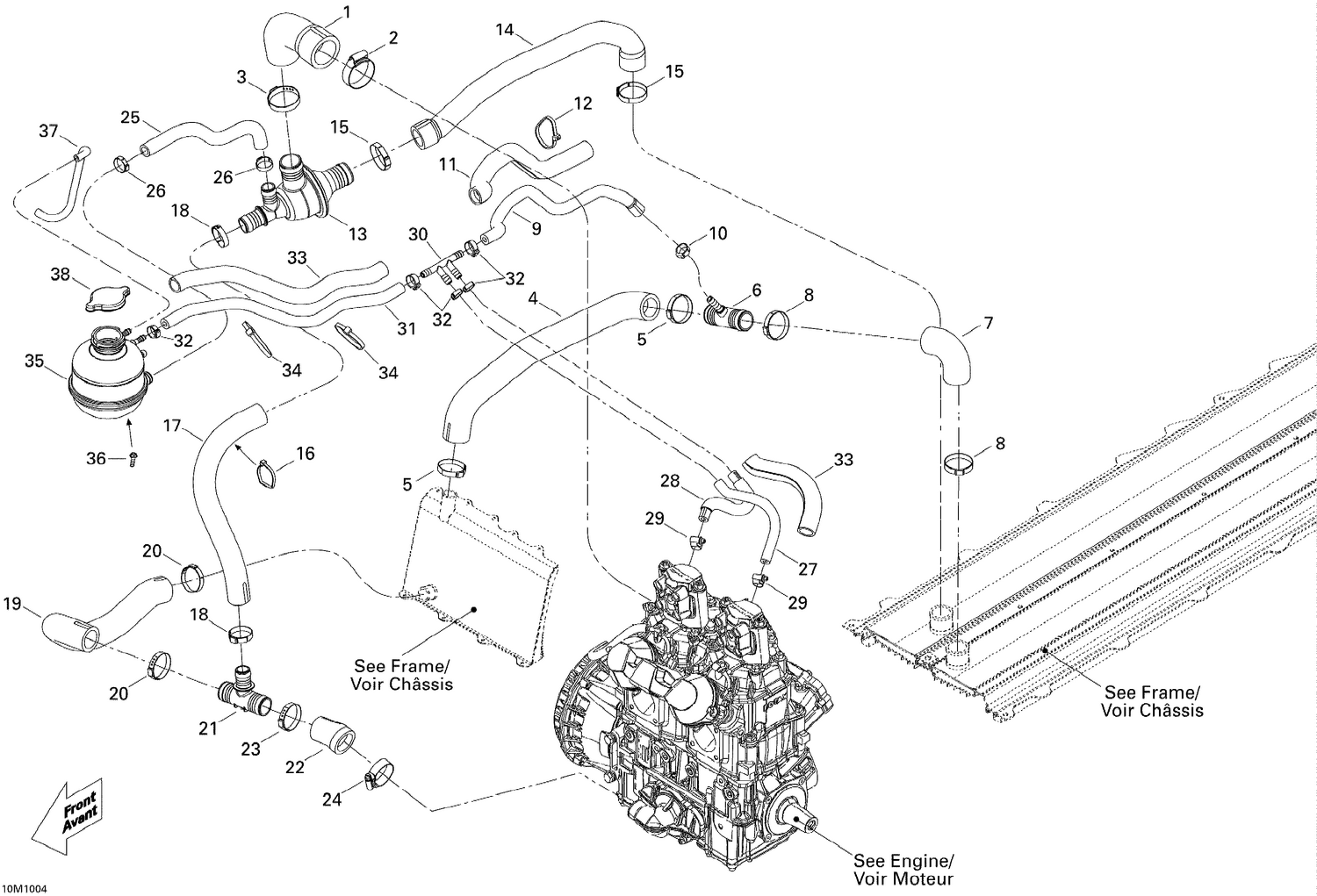

01- Cooling System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000678 | Engine Outlet Hose |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 4 | 509000670 | Radiator Hose |
| 5 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 6 | 509000510 | T-Fitting |
| 7 | 509001066 | Radiator Hose This part replaces 509000671. |
| 8 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 9 | 509000665 | BLEEDER HOSE - Call your local BRP dealership |
| 10 | 293650047 | Crimp Clamp, 15.3-706R |
| 11 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 12 | 414115200 | Tie-Rap 180 mm |
| 13 | 509000499 | Thermostat Housing |
| 14 | 509000679 | Thermostat Outlet Hose |
| 15 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 16 | 414115200 | Tie-Rap 180 mm |
| 17 | 509000672 | Bypass Hose |
| 18 | 293650099 | Crimp Clamp |
| 19 | 509000673 | Radiator Hose |
| 20 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 21 | 509000372 | T-Fitting |
| 22 | 509000997 | Engine Inlet Hose This part replaces 509000674. |
| 23 | 509000181 | Oetiker Gear Clamp |
| 24 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 25 | 509000676 | Filling Hose |
| 26 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 27 | 219704416 | Was 415129508 Bleeder Hose |
| 28 | 509000689 | BLEEDER HOSE - Call your local BRP dealership |
| 29 | 293650170 | Tridon Gear Clamp |
| 30 | 509000690 | DOUBLE T FITTING - Call your local BRP dealership |
| 31 | 219704416 | Was 415129508 Bleeder Hose |
| 32 | 293650046 | Oetiker Clamp |
| 33 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 34 | 414115200 | Tie-Rap 180 mm |
| 35 | 509000368 | Coolant Tank |
| 36 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 37 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
