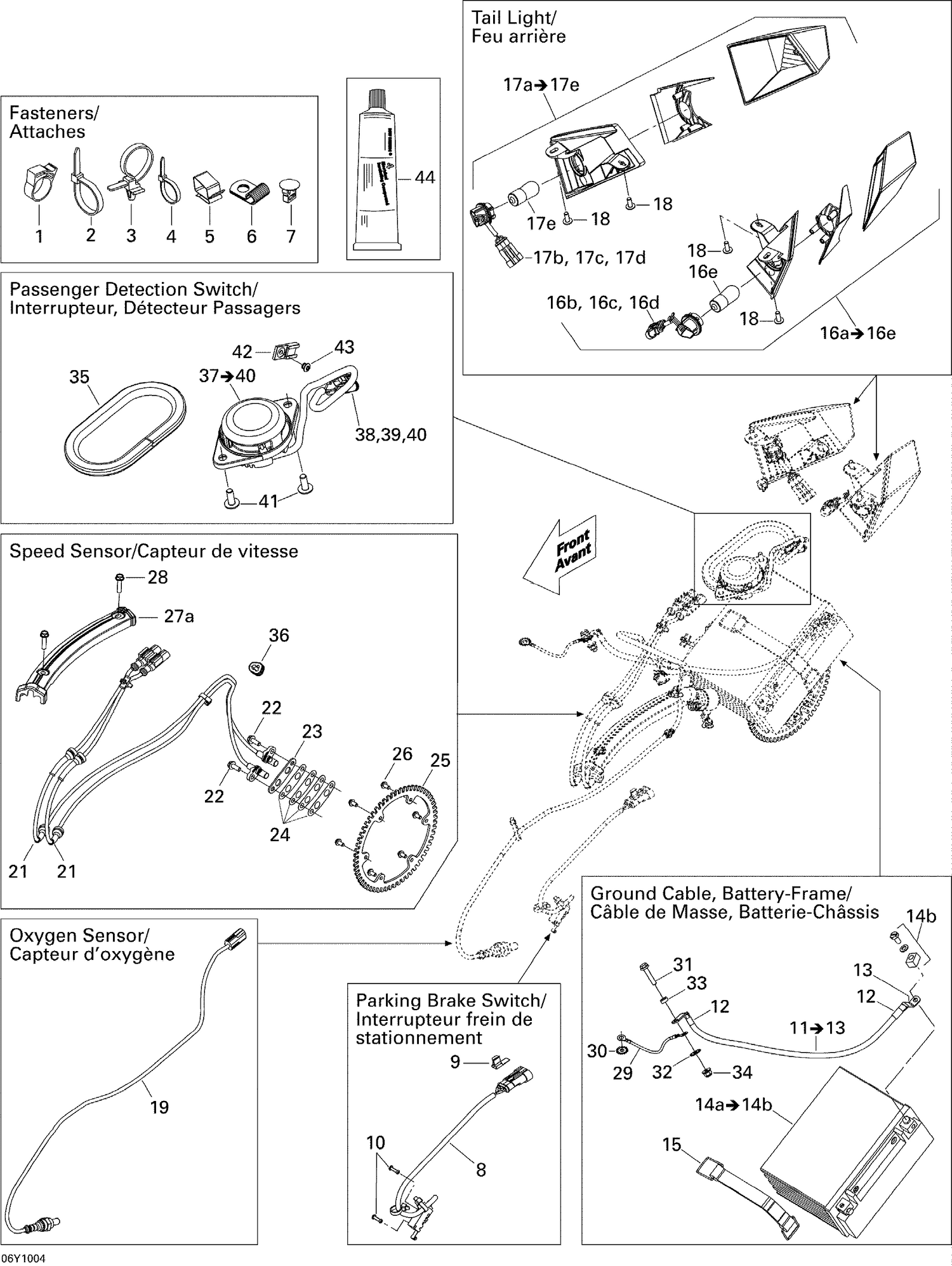

10- Electrical Accessories, Rear
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293650082 | Clamp |
| 2 | 293750008 | Tie Wrap 368 mm |
| 3 | 293750009 | Tie-Rap 173 mm |
| 4 | 414115200 | Tie-Rap 180 mm |
| 5 | 414227300 | Clip |
| 6 | 415052400 | Bracket |
| 7 | 293750044 | Tie Rap Mount |
| 8 | 710001379 | Brake Pressure Switch Ass'y |
| 9 | 710001343 | Clip |
| 10 | 293150150 | Pop Rivet |
| 12 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 13 | 710000518 | Open Barrel |
| 14b | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 15 | 515176044 | Battery Strap |
| 16b | 710000568 | Housing |
| 16c | 409012900 | Male Terminal |
| 16d | 278001013 | Wire Seal |
| 16e | 520000758 | Bulb This part replaces 410504100. |
| 17b | 710000568 | Housing |
| 17c | 409012900 | Male Terminal |
| 17d | 278001013 | Wire Seal |
| 17e | 520000758 | Bulb This part replaces 410504100. |
| 18 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 19 | 707600557 | Oxygen Sensor |
| 21 | 706202361 | Speed Sensor This part replaces 706200560. |
| 22 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 23 | 710001212 | SHIM - Call your local BRP dealership |
| 24 | 710001213 | Shim |
| 25 | 705600573 | TONE WHEEL - Call your local BRP dealership |
| 26 | 207551034 | SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership |
| 27a | 710001035 | PROTECTOR - Call your local BRP dealership |
| 28 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 29 | 710001165 | GROUND HARNESS - Call your local BRP dealership |
| 30 | 250200041 | Lock Washer Serrated M6 |
| 31 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 32 | 250200041 | Lock Washer Serrated M6 |
| 33 | 293900054 | BUSHING - Call your local BRP dealership |
| 34 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 35 | 219704354 | Trim 1000Mm Long |
| 36 | 293720080 | GROMMET - Call your local BRP dealership |
| 38 | 278002375 | CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 39 | 278000632 | Female Terminal |
| 40 | 409207200 | Female Lock |
| 41 | 250000755 | Torx Screw M6 X 16 This part replaces 250000261. |
| 42 | 270000141 | Clip |
| 43 | 390402400 | Pop Rivet 3/16" |
