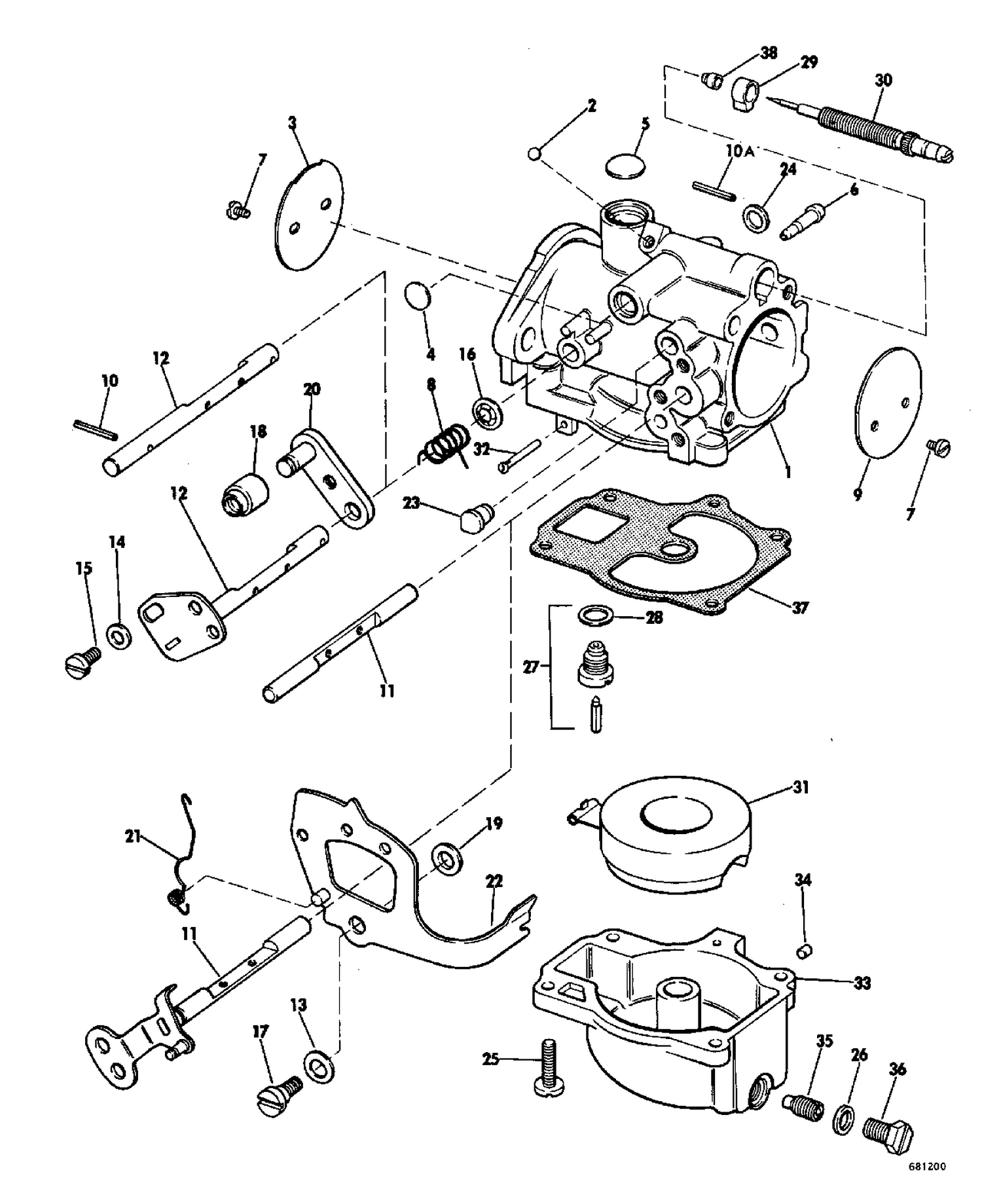

| Ref | Part Number | Description |
|---|
| 1 |
0383627 |
CARBURETOR BODY ASSEMBLY |
| 1 |
0383628 |
CARBURETOR BODY ASSEMBLY |
| 9 |
0322182 |
CHOKE VALVE This part replaces 0313359. |
| 11 |
0321798 |
CHOKE SHAFT This part replaces 0313358. |
| 12 |
0313362 |
THROTTLE SHAFT |
| 22 |
0382905 |
LEVER & PIN ASSEMBLY |
| 29 |
0315232 |
RETAINER , Needle valve stbd |
| 30 |
0313360 |
NEEDLE VALVE, Slow speed |
| 33 |
0383318 |
FLOAT CHAMBER ASSEMBLY |
| 33 |
0383319 |
FLOAT CHAMBER ASSEMBLY |
| 35 |
0319907 |
ORIFICE PLUG This part replaces 0315412. |
| 36 |
0307832 |
PLUG, Screw |
| 37 |
0313363 |
GASKET, Float bowl |
| 0383625 |
0383625 |
CARBURETOR ASSEMBLY, Complete, middle |
| 0383626 |
0383626 |
CARBURETOR ASSEMBLY, Complete, upper & lower |
