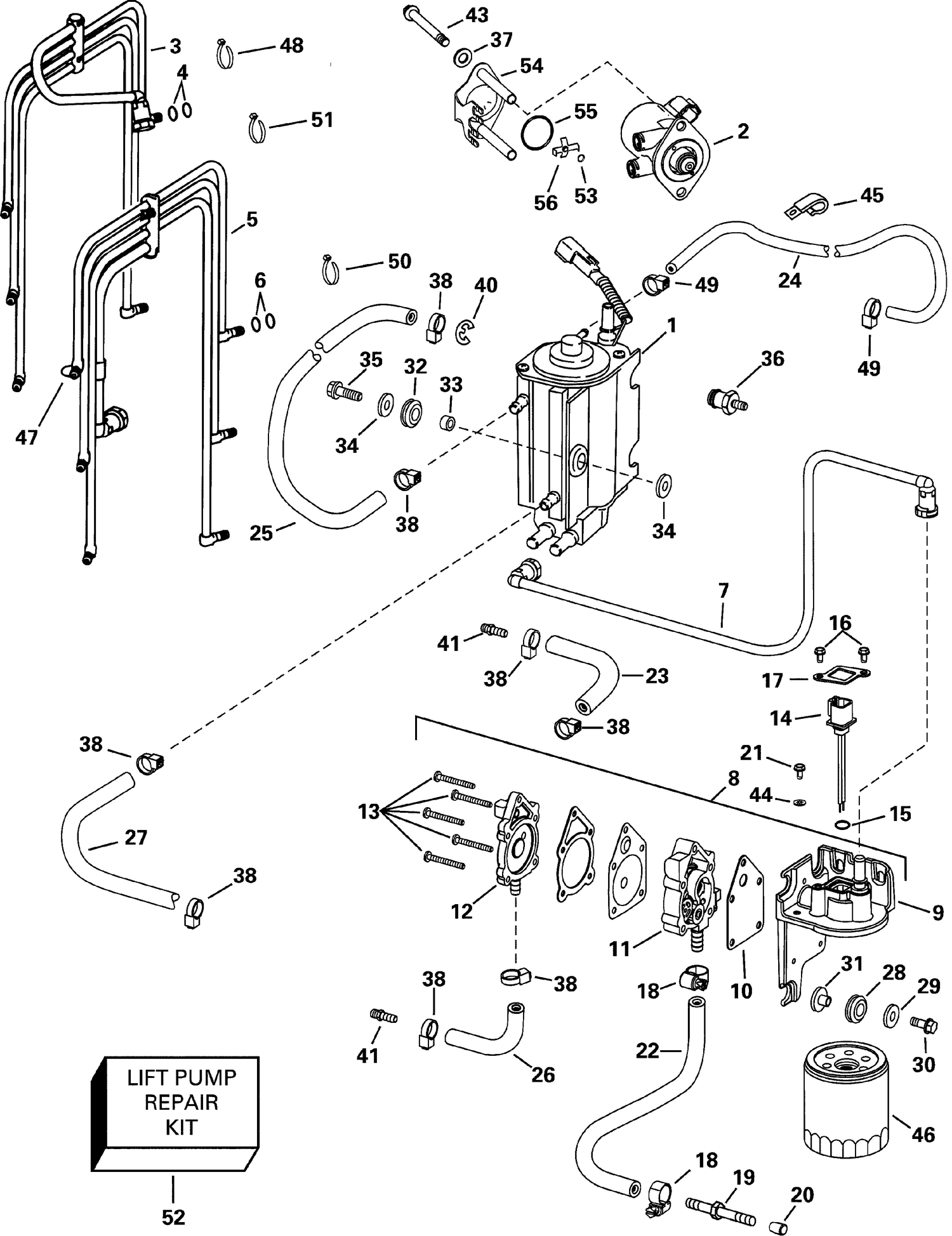

| Ref | Part Number | Description |
|---|
| 1 |
5004428 |
VAPOR SEPARATOR/FUEL PUMP |
| 2 |
5005195 |
FUEL INJECTOR This part replaces 5001394. |
| 3 |
5000205 |
FUEL MANIFOLD Assy, Supply |
| 5 |
5005407 |
FUEL MANIFOLD Assy, Return This part replaces 5000206. |
| 7 |
5000202 |
FUEL SUPPLY TUBE Assy, Filter to vapor separator |
| 18 |
0980863 |
CLAMP |
| 20 |
0331649 |
CAP, Connector - fuel |
| 25 |
0345109 |
HOSE, Water to EMM from vapor sep |
| 27 |
0346540 |
HOSE, Water supply to vapor separator |
| 33 |
0335328 |
SCREW, Connector |
| 38 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 39 |
0343765 |
COLLIER, flexible d'indicateur d’éjection |
| 40 |
0510487 |
RETAINING RING |
| 45 |
0310441 |
CLAMP, CPS lead |
| 46 |
5012363 |
Filter Ay This part replaces 0502906. |
| 50 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 51 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 54 |
5001718 |
CAP, SLEEVE & O-RING |
