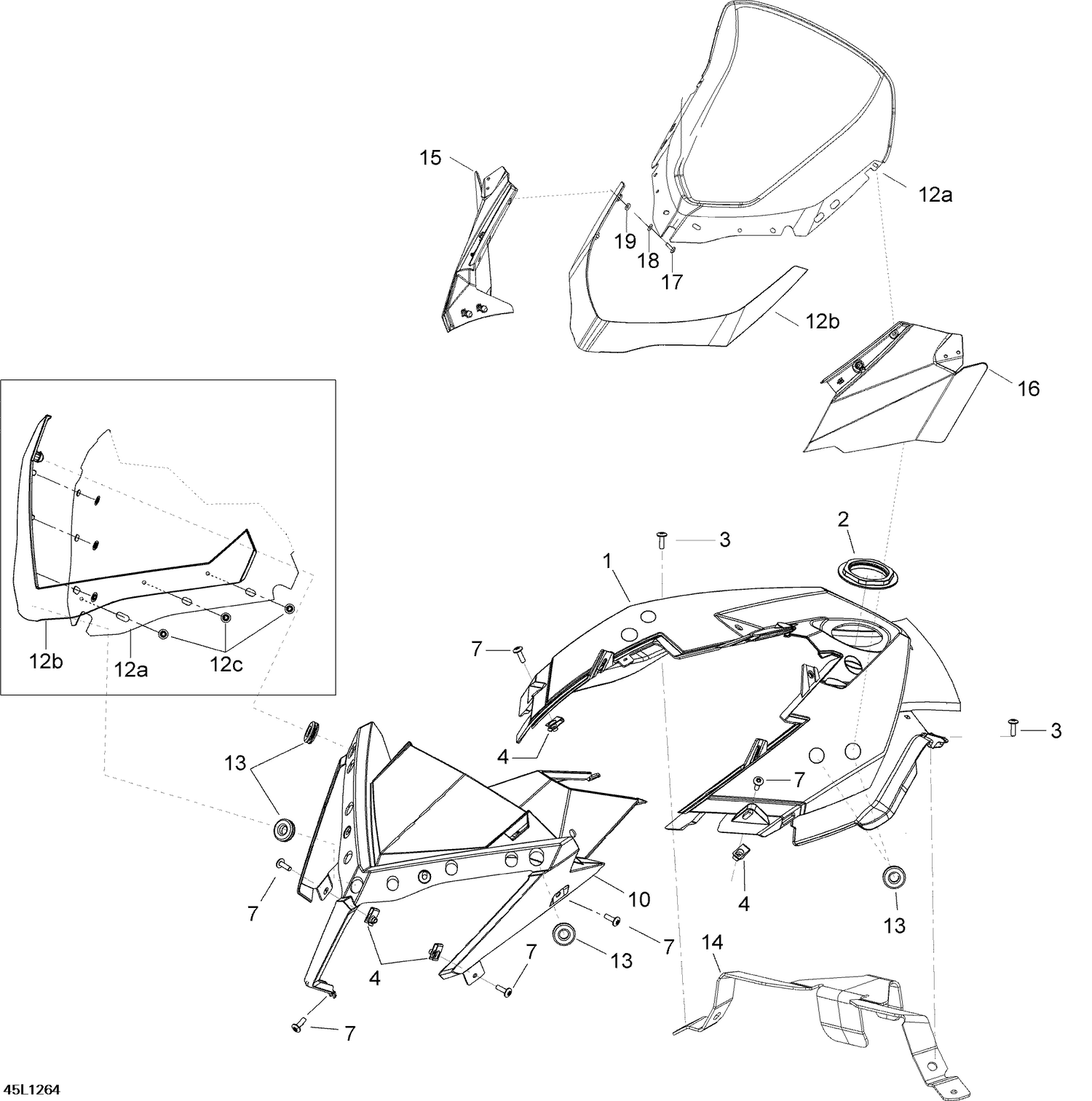

| Ref | Part Number | Description |
|---|
| 1 |
517304647 |
Console (White) |
| 2 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 3 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 4 |
250100198 |
Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 7 |
250000722 |
Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 8 |
Not |
Available As Spare Part - Elastic Stop Nut M6 |
| 9 |
Not |
Available As Spare Part - Flat Washer |
| 10 |
517304576 |
GAUGE SUPPORT - Call your local BRP dealership |
| 12a |
517304614 |
Windshield |
| 12b |
517303607 |
Windshield Support |
| 12c |
732610072 |
Push Nut |
| 13 |
517303756 |
Grommet |
| 14 |
517304230 |
Console support plate |
| 15 |
517305135 |
Deflector air R.H |
| 16 |
517305136 |
Deflector air L.H |
| 17 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 18 |
250200025 |
Washer M5 |
