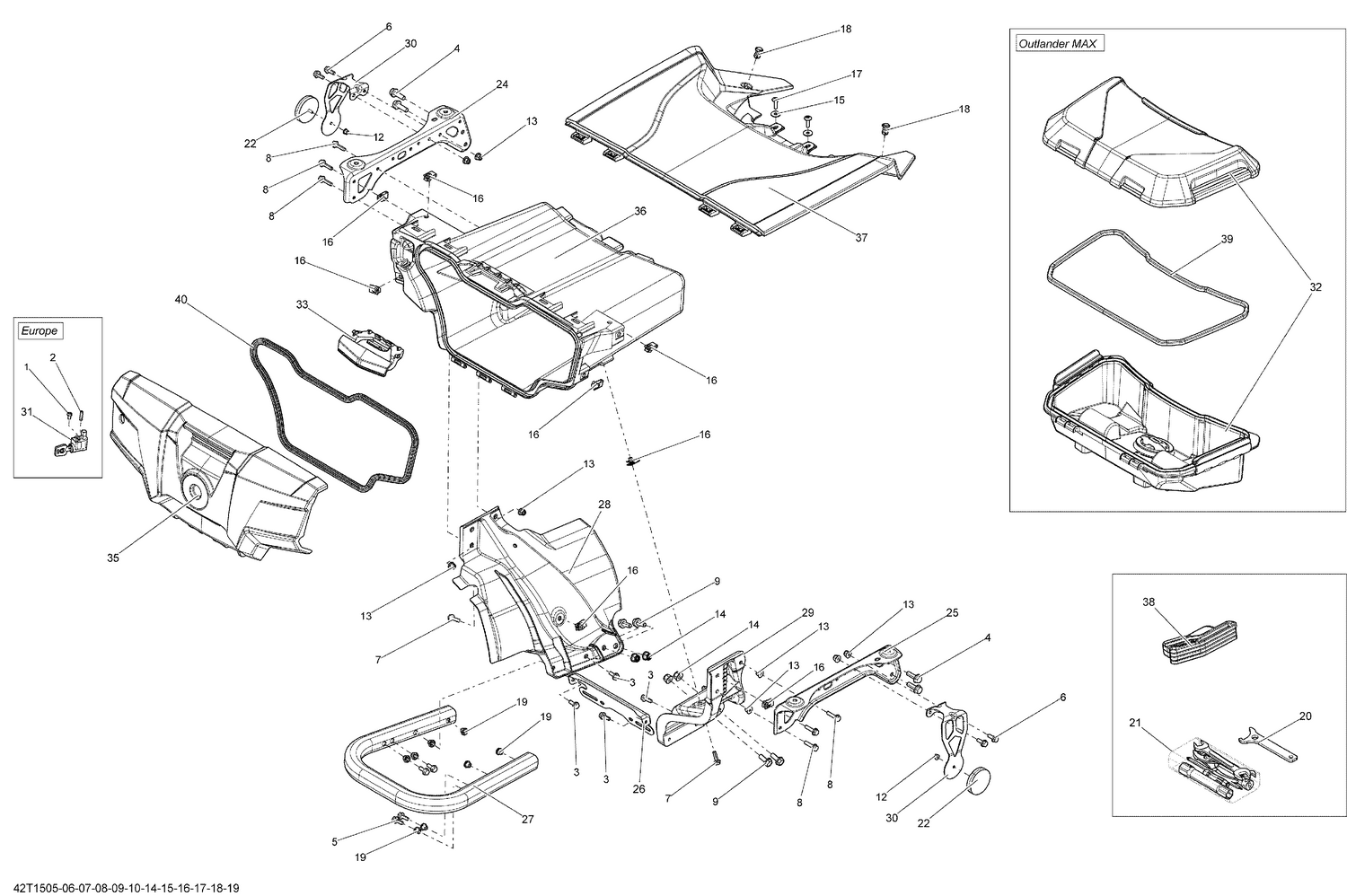

| Ref | Part Number | Description |
|---|
| 1 |
XXX |
Not Available As Spare Parts |
| 2 |
XXX |
Not Available As Spare Parts |
| 3 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 4 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 7 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 8 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 9 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 12 |
233251434 |
Flange Elastic Nut M5 |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 15 |
234062670 |
Stainless Steel Flat Washer |
| 16 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 17 |
250000807 |
Torx Truss Screw M6 X 25 This part replaces 250000630. |
| 18 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 19 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 20 |
529000035 |
Adjustment Wrench |
| 21 |
704700162 |
Tool Kit This part replaces 704700148. |
| 22 |
705011221 |
Red Reflector This part replaces 705002408. |
| 24 |
705004563 |
LH Support |
| 25 |
705004564 |
RH Support |
| 26 |
705004806 |
Plate Support |
| 27 |
715001564 |
Rear Bumper Ass'y |
| 28 |
705006997 |
LH Cargo Support |
| 29 |
705006998 |
RH Cargo Support |
| 30 |
705202576 |
Reflector Support |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
XXX |
Not Available As Spare Parts |
| 33 |
708201250 |
Handle Latch This part replaces 708200272. |
| 35 |
708300150 |
Rear Panel |
| 36 |
708300674 |
Rear Storage Box |
| 37 |
708301212 |
Rear Storage Box Cover |
| 38 |
710002270 |
Remote Control |
| 39 |
219704452 |
Was 715900411 Neoprene Seal |
