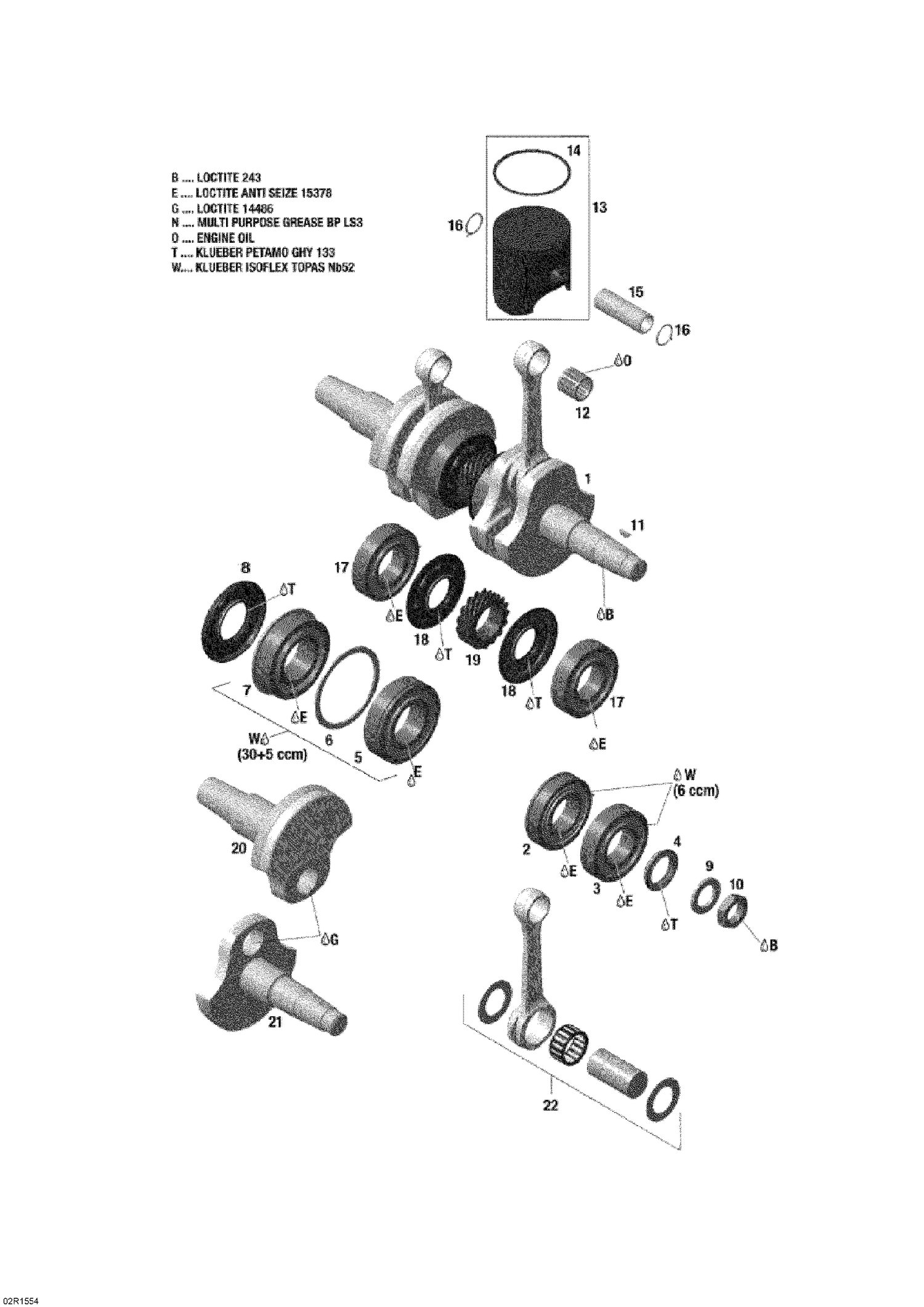

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| E |
Not |
Available As Spare Part - Loctite 8151 (Antiseize) |
| G |
Not |
Available As Spare Part - Loctite 609 |
| N |
Not |
Available As Spare Part - Multipurpose Grease BP LS3 |
| O |
Not |
Available As Spare Part - Engine Oil |
| T |
Not |
Available As Spare Part - Grease |
| 1 |
420890953 |
Crankshaft Ass'y This part replaces 421000664. |
| 2 |
420832175 |
Ball Bearing |
| 3 |
420832575 |
Ball Bearing 6207 |
| 5 |
420832672 |
Ball Bearing Sealed, 6208 This part replaces 420832602. |
| 6 |
420926190 |
Washer |
| 7 |
420832702 |
Ball Bearing |
| 9 |
420945759 |
Lock Washer, 22 mm |
| 10 |
420842239 |
Hex. Nut, M22 X 1.5 |
| 11 |
420246015 |
Woodruff Key |
| 12 |
420832445 |
Needle Bearing |
| 14 |
420815295 |
Semi-Trapez Ring |
| 15 |
420916412 |
Piston Pin |
| 17 |
420832575 |
Ball Bearing 6207 |
| 18 |
420931455 |
Oil Seal |
| 19 |
420834355 |
CENTRAL GEAR - Call your local BRP dealership |
| 20 |
Not |
Available As Spare Part - Crankshaft, PTO Side |
| 21 |
Not |
Available As Spare Part - Crankshaft, MAG Side |
| 22 |
420890958 |
Rod Repair Kit, PTO Side |
| 22 |
420890959 |
Rod Repair Kit, MAG Side |
