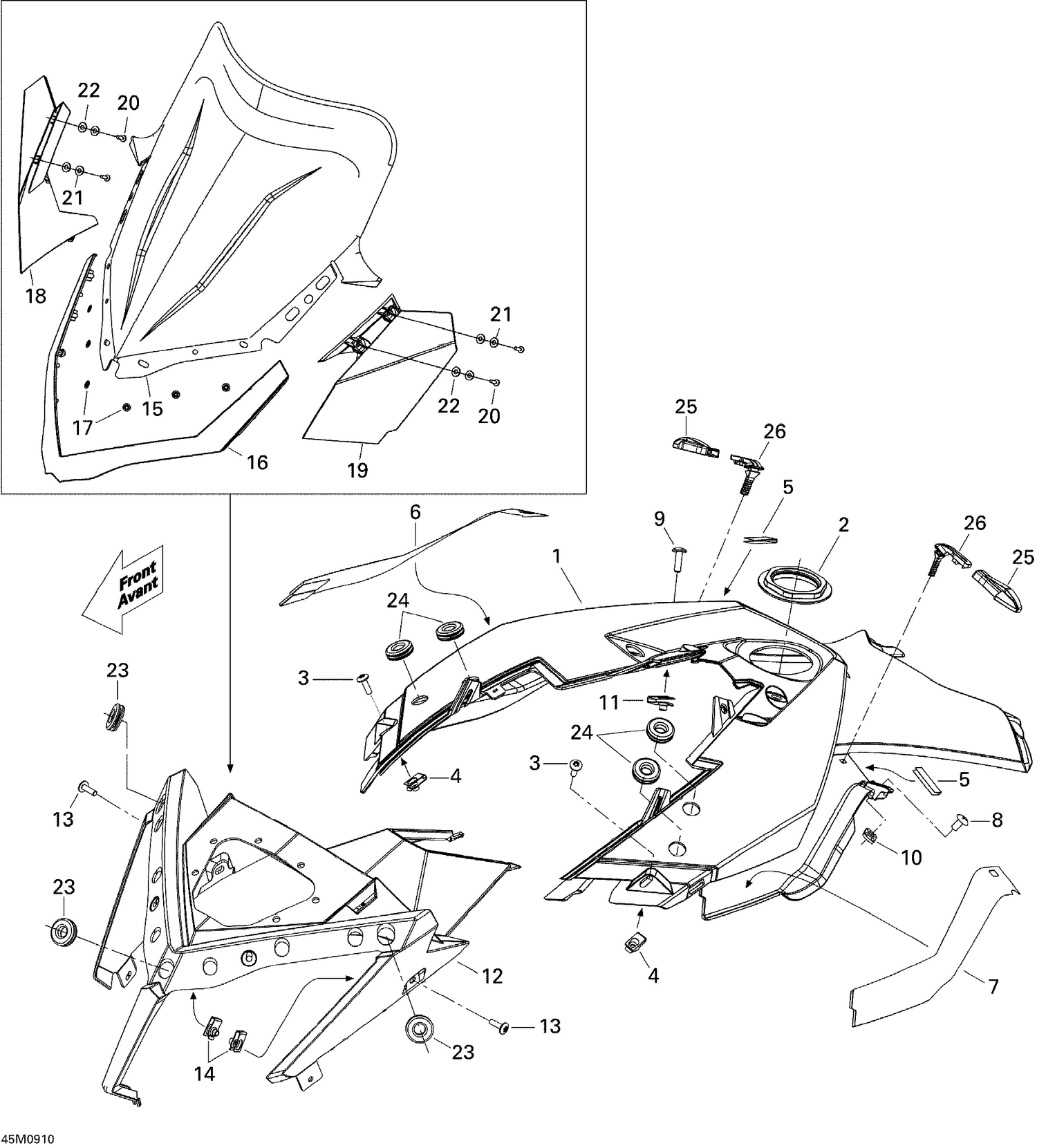

| Ref | Part Number | Description |
|---|
| 1 |
517303921 |
DEEP BLACK CONSOLE - Call your local BRP dealership This part replaces 517303925. |
| 2 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 3 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 4 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 5 |
517304105 |
Console Decal |
| 6 |
517304103 |
RH Decal |
| 7 |
517304104 |
LH Decal |
| 8 |
250000767 |
Torx Truss Screw M6 X 12 This part replaces 250000325. |
| 9 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 10 |
250100106 |
NUT-WELD THIN M6 - Call your local BRP dealership |
| 11 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 12 |
517304575 |
Gauge Support This part replaces 517303603. |
| 13 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 14 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 15 |
860200225 |
WINSHIELD - Call your local BRP dealership This part replaces 517304032. |
| 16 |
517303607 |
Windshield Support |
| 17 |
732610072 |
Push Nut |
| 18 |
517303791 |
RH Air Deflector |
| 19 |
517303792 |
LH Air Deflector |
| 20 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 21 |
250200025 |
Washer M5 |
| 22 |
250200024 |
Rubber Washer 5 mm |
| 23 |
517303756 |
Grommet |
| 24 |
517303756 |
Grommet |
| 25 |
517304075 |
End Piece Latch |
