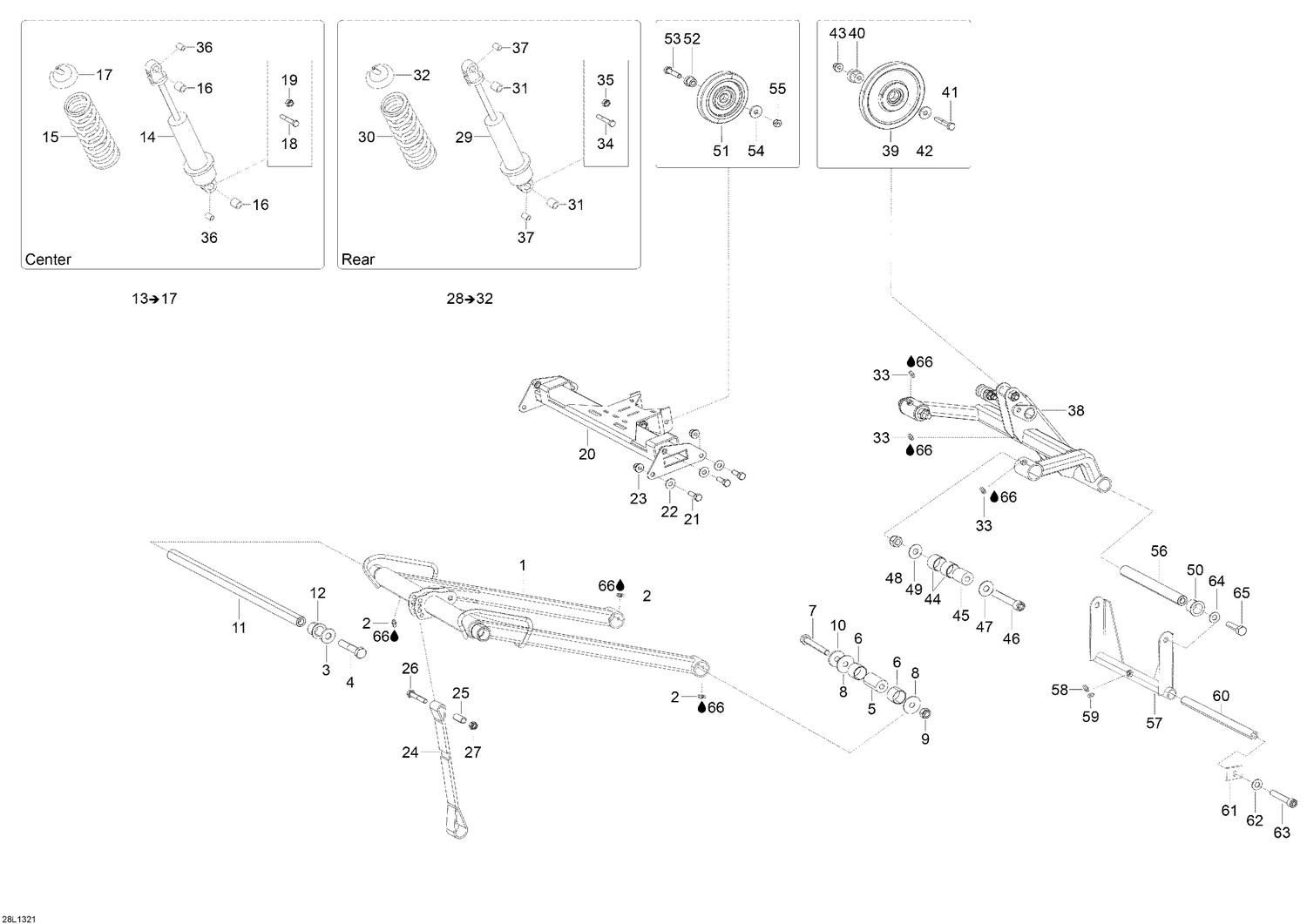

08- Rear Suspension
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192557 | Front Arm |
| 2 | 408200700 | Grease Fitting |
| 3 | 250200005 | Washer Spring Conical |
| 4 | 207026044 | HEX. SCREW M12 X 60 - Call your local BRP dealership |
| 5 | 503192879 | Shaft |
| 6 | 31065 | Bushing |
| 7 | 250000520 | Hex. Cap Screw M10 x 70 |
| 8 | 605355801 | Washer |
| 9 | 232500416 | Elastic Stop Nut M10 |
| 10 | 503183300 | Washer |
| 11 | 503192183 | Shaft |
| 12 | 503192184 | Bushing |
| 14 | 619330003 | Shock, Front Arm |
| 15 | 503192355 | Spring, Front Arm |
| 16 | 31094 | Cushion |
| 17 | 605354631 | Spring Lock |
| 18 | 207004544 | Hex. Screw M10 X 45 |
| 19 | 232500416 | Elastic Stop Nut M10 |
| 20 | 503192566 | Middle Beam |
| 21 | 207182544 | Hex. Cap Screw M8 x 25 |
| 22 | 605620002 | Washer |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 605355116 | Limiter Strap |
| 25 | 605455335 | Sleeve |
| 26 | 207084544 | Hex. Screw M8 X 45 |
| 27 | 232581414 | Hex. Elastic Stop Nut M8 |
| 29 | 619330005 | Shock, Rear Arm |
| 30 | 503192356 | Spring, Rear Arm |
| 31 | 31094 | Cushion |
| 32 | 605354631 | Spring Lock |
| 33 | 408200700 | Grease Fitting |
| 34 | 40134 | Screw Socket HD.DIN 912 |
| 35 | 232500416 | Elastic Stop Nut M10 |
| 36 | 5446652 | Bushing |
| 37 | 5446652 | Bushing |
| 38 | 503192524 | Rear Arm |
| 39 | 503193644 | Idler Wheel 133mm |
| 40 | 605454461 | Sleeve |
| 41 | 207084544 | Hex. Screw M8 X 45 |
| 42 | 20077 | M8 Washer |
| 43 | 233281414 | Hex. Flange Elastic Nut M8 |
| 44 | 31065 | Bushing |
| 45 | 503192879 | Shaft |
| 46 | 205006544 | Socket HD. Screw M10 x 65 |
| 47 | 503189564 | Washer |
| 48 | 232500416 | Elastic Stop Nut M10 |
| 49 | 605355801 | Washer |
| 50 | 31024 | Cushion |
| 51 | 572043500 | Idler Wheel |
| 52 | 503193330 | Sleeve |
| 53 | 207083544 | Hex. Screw M8 X 35 |
| 54 | 20077 | M8 Washer |
| 55 | 232581414 | Hex. Elastic Stop Nut M8 |
| 56 | 503192881 | Shaft |
| 57 | 605353953 | Rear Swing |
| 58 | 408200700 | Grease Fitting |
| 59 | 234061410 | Flat Washer 6 mm |
| 60 | 605355119 | Shaft |
| 61 | 503192045 | Plate |
| 62 | 20068 | Lock Washer |
| 63 | 205505547 | Socket Head Screw M10 x 55 |
| 64 | 234001410 | Flat Washer 10 mm |
| 65 | 207204044 | Hex Cap Screw Din.931 S.grip |
