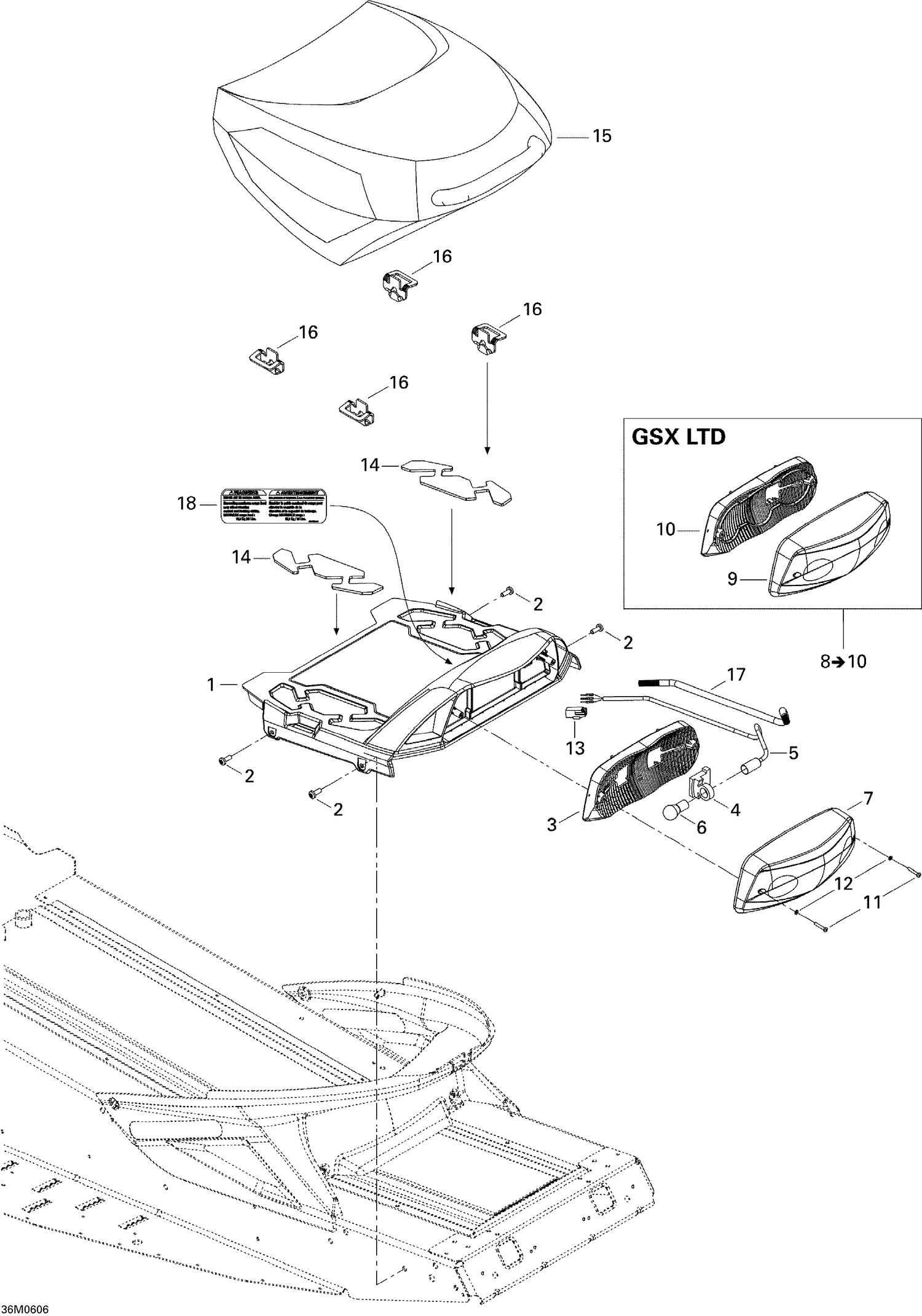

| Ref | Part Number | Description |
|---|
| 1 |
511000434 |
LUGGAGE RACK - Call your local BRP dealership |
| 2 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 3 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 4 |
511000431 |
BULB SUPPORT - Call your local BRP dealership |
| 5 |
511000465 |
Bulb Socket |
| 6 |
520000758 |
Bulb This part replaces 410504100. |
| 8 |
XXX |
Not Available As Spare Parts |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 12 |
414516400 |
Washer - Call your local BRP dealership |
| 13 |
515175494 |
Male Housing, 3 Circuits |
| 14 |
520000481 |
REAR CARPET - Call your local BRP dealership |
| 15 |
520000517 |
Rear Bag |
| 16 |
705000560 |
HOOK - Call your local BRP dealership |
| 17 |
219704425 |
Tubing 6 Mm 3000Mm Long |
