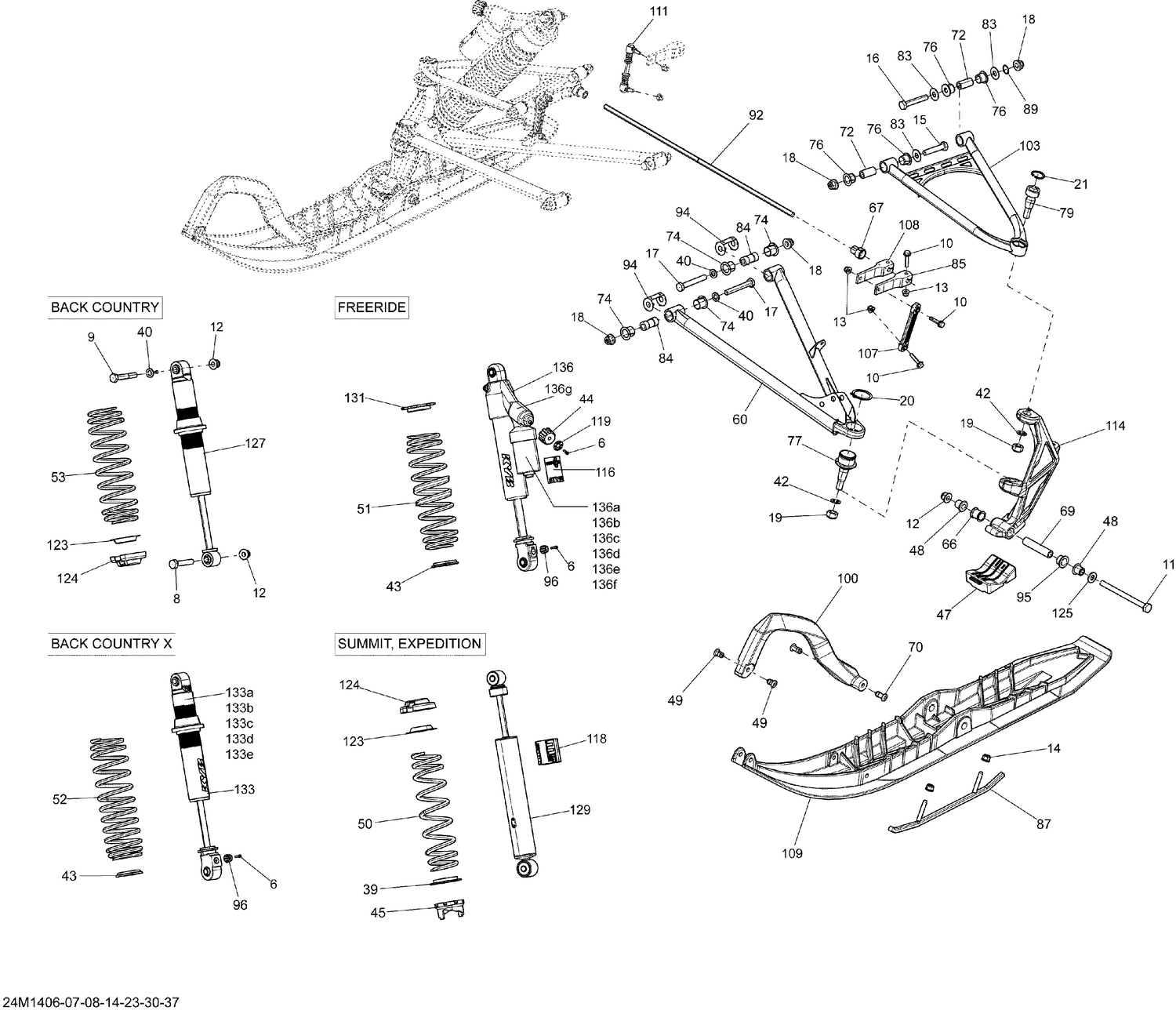

07- Front Suspension And Ski

07- Front Suspension And Ski

Parts (78)

RefPart NumberDescription
6 250000644 Allen Screw M3 X 0.5 X 10
8 207005554 Hex Screw M10 X 1.5 X 55
9 207006544 Hex. Screw M10 X 1.5 X 65
10 207663056 Hex. Flange Screw M6 X 1.0 X 30
11 250000703 Hex. Screw M10 X 130 This part replaces 230003054.
12 233201464 Hex. Flange Elastic M10 x 1.5
13 233261466 Hex. Flange Elastic Nut M6
14 233601416 Elastic Locking Nut M10 X 1.5
15 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
16 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
17 250001024 Screw Hex. M10 X 70 This part replaces 250000291.
18 250100165 Hex. Flange Elastic Nut M10
19 232521464 Hex Elastic Nut M12 X 1.25
20 293370035 Circlip
21 293370070 Circlip
39 XXX Not Available As Spare Parts
40 503189564 Washer
42 503192491 Washer
43 503194270 Spring Stopper This part replaces 503192608.
44 503193025 Adjustment Knob Ass'y
45 XXX Not Available As Spare Parts
47 505072594 Ski Stopper
48 505071781 Ski Bushing
49 505071812 Retainer 17mm long
51 505072760 Deep Black, Spring
60 505072497 Black, RH Lower Arm
60 505072498 Black, LH Lower Arm
66 503193651 Spacer
67 505072786 Bushing
69 506133300 Spacer
70 505072133 Retainer 23mm Long
72 505072143 Sleeve
73 XXX Not Available As Spare Parts
74 505072208 Bushing
76 505072250 Bushing
77 505073636 Ball Joint This part replaces 505072682.
79 505072913 Upper Ball Joint
83 505072392 Washer
84 505072214 Bushing
85 XXX Not Available As Spare Parts
87 860201044 Carbide Runner Kit (Square Runner)
89 505072448 O-Ring
92 505072785 STABILISATOR - Call your local BRP dealership
94 505072634 Wear Plate
95 505072690 Leg Bushing
96 505072753 Adjustment Knob
100 505073108 White Handle
103 505073468 LH Upper Arm 39"
103 505073469 RH Upper Arm 39"
107 505073172 Double Ball Joint Link
108 505073176 Stabilisator Lever
109 505073354 Green, DS 2 Ski This part replaces 505073539.
111 860200811 Double Ball Joint Link This part replaces 505073292.
114 505073357 WHITE LH SKI LEG - Call your local BRP dealership
114 505073358 WHITE RH SKI LEG - Call your local BRP dealership
116 516005534 Shock Adjustment Decal
118 XXX Not Available As Spare Parts
119 516004752 Shock Knob Adjustment Decal
123 XXX Not Available As Spare Parts
124 XXX Not Available As Spare Parts
125 503192496 Washer
127 XXX Not Available As Spare Parts
129 XXX Not Available As Spare Parts
131 Not Available As Spare Part - Seat Spring
133 XXX Not Available As Spare Parts
133a XXX Not Available As Spare Parts
133b XXX Not Available As Spare Parts
133c XXX Not Available As Spare Parts
133d XXX Not Available As Spare Parts
133e XXX Not Available As Spare Parts
136 505073123 LH Front Shock
136 505073124 RH Front Shock
136a 415093804 O-Ring
136b 505070400 O-Ring
136c 505070399 Screw
136d 505070398 Air Valve
136e 415093806 Piston Ring
136f 415093807 O-Ring
