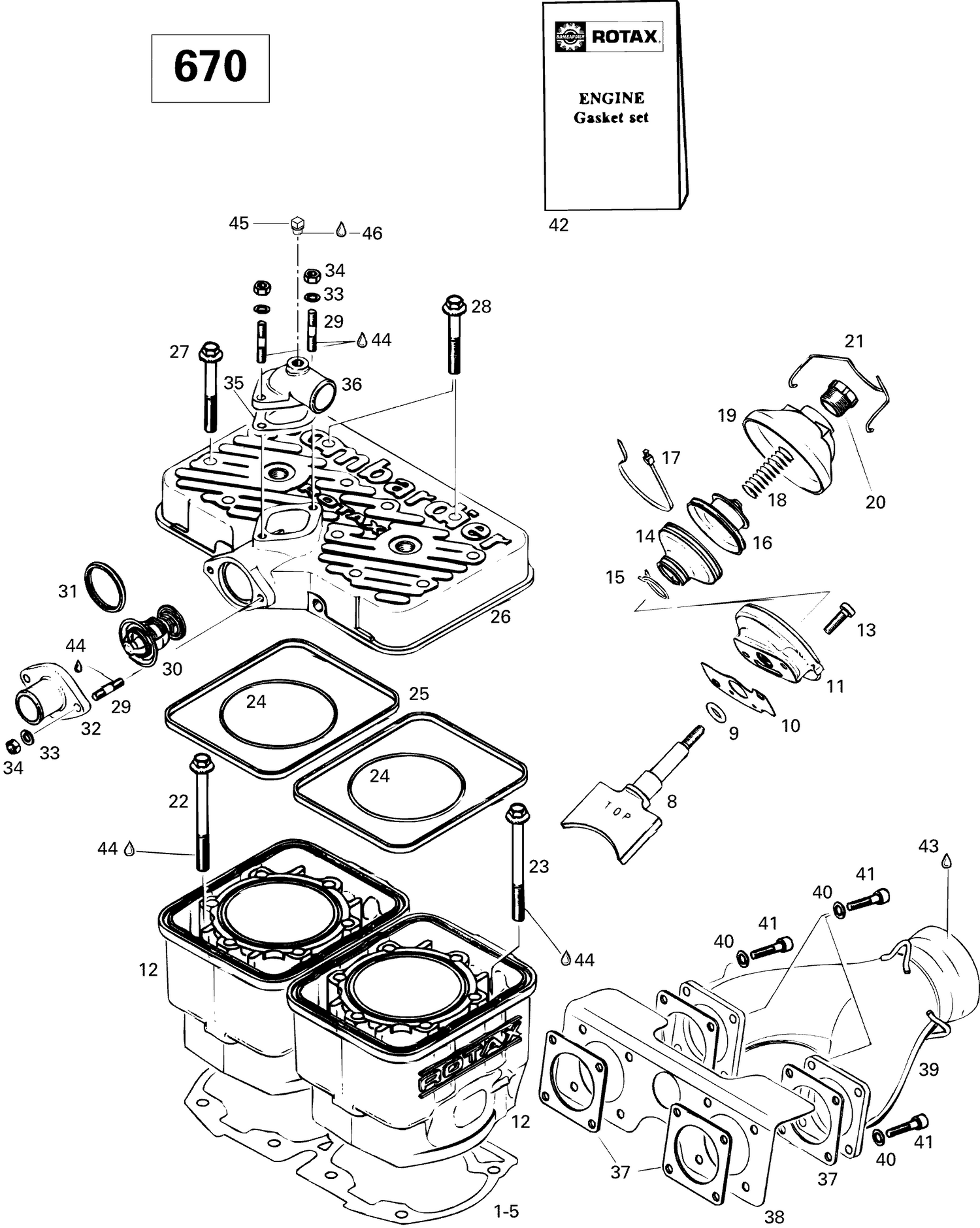

| Ref | Part Number | Description |
|---|
| 1 |
420931230 |
Gasket-Double 0.3 mm |
| 2 |
420931231 |
Gasket-Double 0.4 mm |
| 3 |
420931232 |
Gasket-Double 0.6 mm |
| 4 |
420931233 |
GASKET-DOUBLE 0.5 MM - Call your local BRP dealership |
| 5 |
420931234 |
GASKET-DOUBLE 0.8 MM - Call your local BRP dealership |
| 6 |
420842555 |
Distance Nut M6 |
| 7 |
224061121 |
Flat Washer |
| 8 |
420854320 |
Exhaust Valve |
| 9 |
420430110 |
O-Ring |
| 10 |
420230256 |
GASKET - Call your local BRP dealership |
| 11 |
420253275 |
Valve Rod Housing |
| 12 |
420923196 |
Cylinder With Sleeve |
| 13 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 14 |
420260721 |
Bellow |
| 15 |
420838190 |
SPRING CLAMP - Call your local BRP dealership |
| 16 |
420854449 |
Exhaust Valve This part replaces 420253257. |
| 17 |
420251920 |
Clamp 77 mm |
| 18 |
420239948 |
SPRING - Call your local BRP dealership |
| 19 |
420911552 |
Valve Cover This part replaces 420911550. |
| 20 |
420241221 |
Adjuster Screw This part replaces 420241220. |
| 21 |
420838083 |
SPRING CLIP - Call your local BRP dealership This part replaces 420838082. |
| 22 |
420940126 |
Hex. Screw M8 x 100 |
| 23 |
420941518 |
Screw M8x105 This part replaces 420941511. |
| 24 |
420931220 |
O-RING - Call your local BRP dealership |
| 25 |
420850040 |
RUBBER RING - Call your local BRP dealership |
| 26 |
420913542 |
Cylinder head (Violet) |
| 27 |
420841307 |
Hex. Collar Screw M8 X 65 This part replaces 420841306. |
| 28 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 29 |
420941160 |
Stud M6 x 18 |
| 30 |
420922519 |
Thermostat This part replaces 420922510. |
| 31 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 32 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 33 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 34 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 35 |
420850339 |
Gasket This part replaces 420850336. |
| 36 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 37 |
420850552 |
Gasket |
| 38 |
420975777 |
Heat Deflector |
| 39 |
420973987 |
Exhaust Manifold |
| 40 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 41 |
205062544 |
Socket Head Screw M6 X 25 This part replaces 222962565. |
| 42 |
420997800 |
Gasket Set |
| 43 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 44 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 45 |
414184400 |
Plug |
