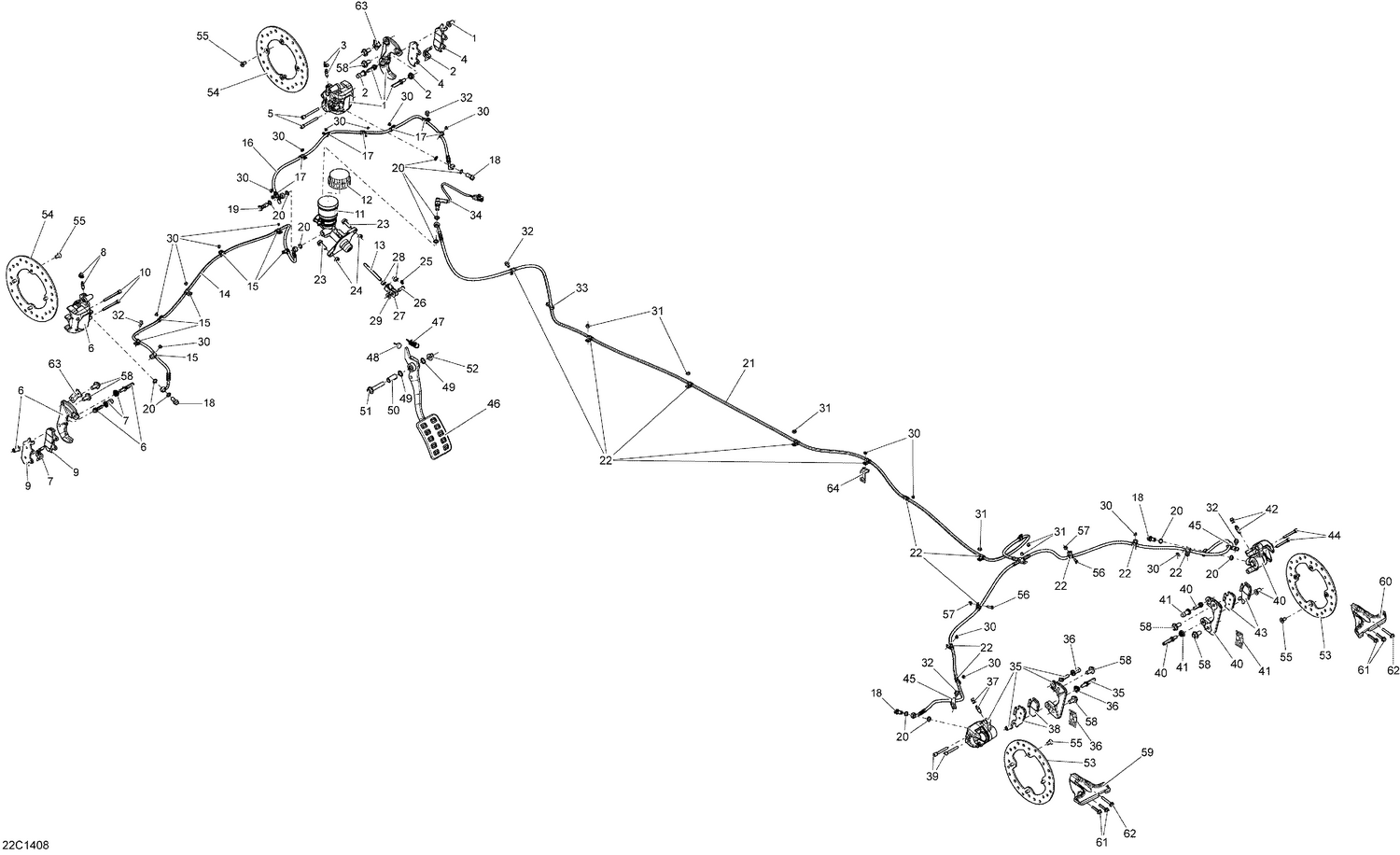

06- Brakes
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 715500385 | Spring And Bolt Kit This part replaces 705601148. |
| 3 | 705600080 | Bleeding Screw |
| 4 | 705601150 | RH Brake Pad Kit |
| 5 | 705601151 | Hanger Pin Kit |
| 7 | 715500385 | Spring And Bolt Kit This part replaces 705601148. |
| 8 | 705600080 | Bleeding Screw |
| 9 | 705601149 | LH Brake Pad Kit |
| 10 | 705601151 | Hanger Pin Kit |
| 12 | 715500332 | Diaphragm Cap Kit |
| 13 | 705600833 | Master Cylinder Rod |
| 15 | 293650256 | Clamp This part replaces 715900250. |
| 17 | 293650256 | Clamp This part replaces 715900250. |
| 18 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 19 | 705600958 | Banjo Bolt |
| 20 | 705601628 | Copper Washer This part replaces 705600310. |
| 22 | 293650256 | Clamp This part replaces 715900250. |
| 23 | 207682544 | Hex. Flange Screw M8 X 25 |
| 24 | 232581414 | Hex. Elastic Stop Nut M8 |
| 25 | 371800700 | Cotter Pin |
| 26 | 250400058 | Pin |
| 27 | 705601142 | Yoke |
| 28 | 232081414 | Hex. Nut M8 |
| 29 | 234081430 | Flat Washer M8 |
| 30 | 390402200 | Pop Rivet 3/16" |
| 31 | 232561414 | Elastic Stop Nut M6 |
| 32 | 210261040 | Hex. Flange Screw M6 X 10 |
| 33 | 414115200 | Tie-Rap 180 mm |
| 34 | 705601250 | Brake Switch This part replaces 705600914. |
| 36 | 715500384 | Spring, Protector And Bolt Kit This part replaces 705601146. |
| 37 | 705600080 | Bleeding Screw |
| 38 | 705600398 | LH Brake Pad Kit |
| 39 | 705600081 | Pin Set (2) |
| 41 | 715500384 | Spring, Protector And Bolt Kit This part replaces 705601146. |
| 42 | 705600080 | Bleeding Screw |
| 43 | 705601147 | RH Brake Pad Kit |
| 44 | 705600081 | Pin Set (2) |
| 45 | 518321570 | Open Clamp |
| 46 | 705600724 | Brake Pedal |
| 47 | 705600792 | Brake Pedal Spring |
| 48 | 708000759 | Rubber Stopper |
| 49 | 293300144 | O-Ring |
| 50 | 705600815 | Inner Spacer |
| 51 | 207605544 | Hex. Flange Screw M10 X 55 |
| 52 | 233201414 | Hex. Flange Elastic Nut M10 |
| 53 | 705601997 | Disc Brake This part replaces 705600999. |
| 54 | 705601178 | Disc Brake |
| 55 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 56 | 210251650 | Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 57 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 58 | 250001134 | Hex. Flange Screw M10 X 20 This part replaces 250000601. |
| 59 | 705601197 | LH DEFLECTTOR - Call your local BRP dealership |
| 60 | 705601404 | RH DEFLECTOR - Call your local BRP dealership This part replaces 705601198. |
| 61 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 62 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 63 | 705601337 | Bracket This part replaces 705601088. |
