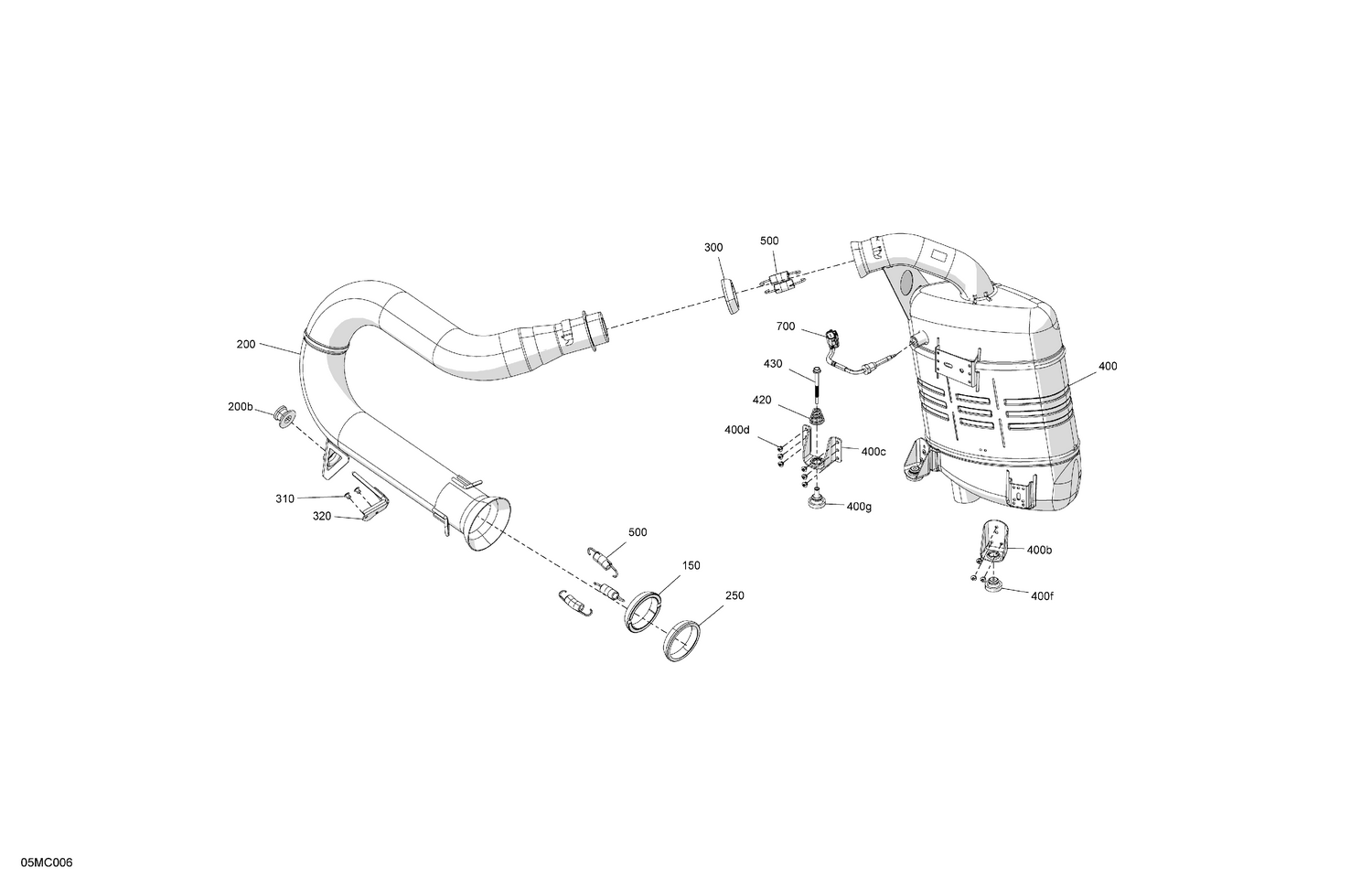

02- Engine - Exhaust
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 200b | 514055632 | Rubber This part replaces 514056238. |
| 250 | 514055965 | Seal |
| 300 | 514055294 | Exhaust Gasket |
| 310 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 320 | 514055214 | Support |
| 400b | 514056054 | Support |
| 400c | 514056055 | Support |
| 400d | 390402200 | Pop Rivet 3/16" |
| 400f | 514055203 | Stopper |
| 400g | 514056138 | Stopper Ass'y |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flange Screw M6 |
| 500 | 514055198 | Spring |
