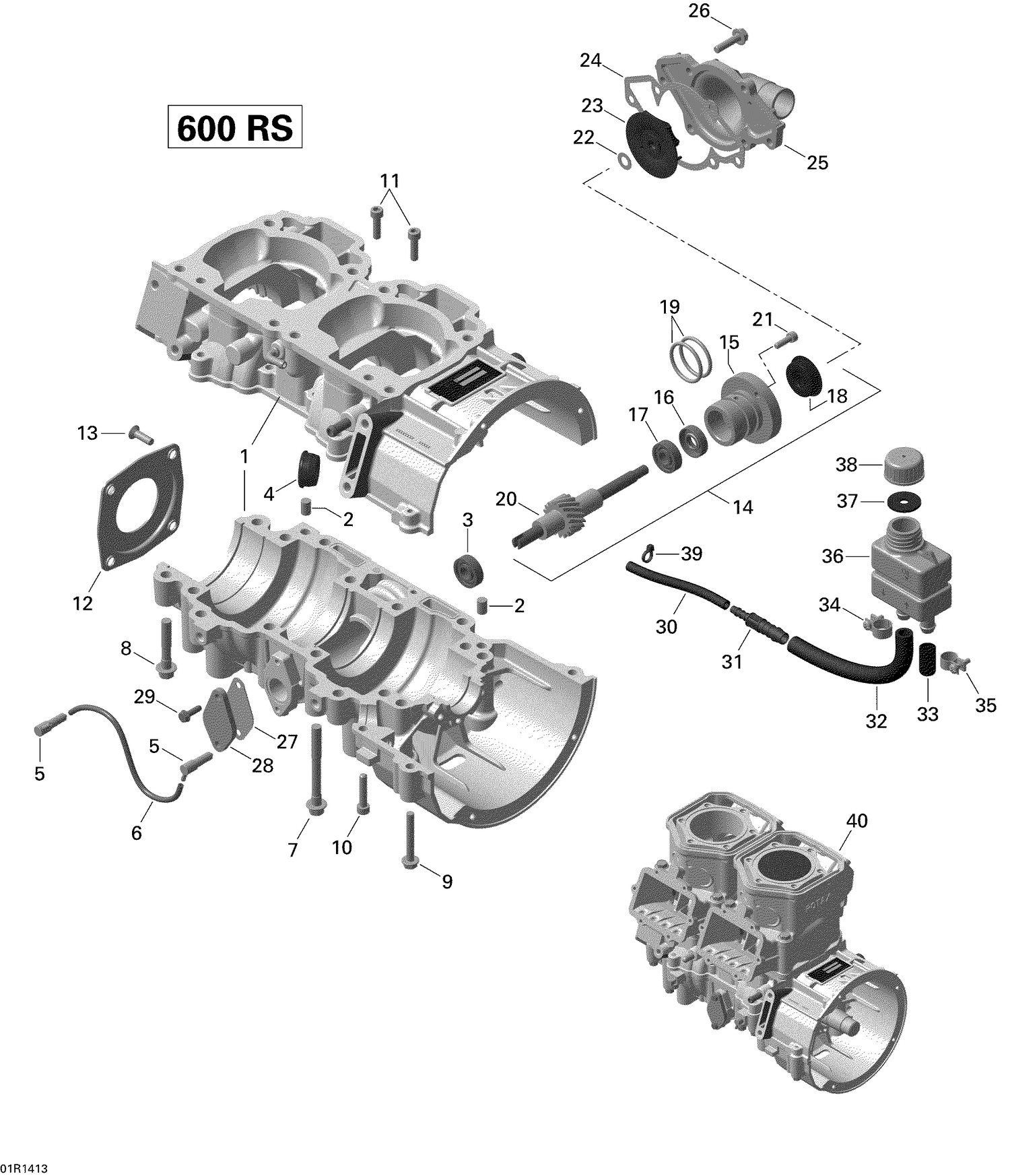

01- Crankcase
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420232100 | Ball Bearing |
| 4 | 420860965 | Cable Grommet |
| 5 | 420956511 | Check Valve This part replaces 420956510. |
| 6 | 219704404 | Oil Hose 1500Mm Long |
| 7 | 420640836 | Hex. Collar Screw M8 X 75 |
| 8 | 420640433 | Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 9 | 420640312 | Allen Screw M6 x 45 This part replaces 420640311. |
| 10 | 205063044 | Socket Head Screw M6 X 30 |
| 11 | 420840403 | Allen Screw M6 x 22 This part replaces 420840401. |
| 12 | 420812422 | Oil Seal Cover This part replaces 420812420. |
| 13 | 420941436 | Screw M6 X 20 |
| 15 | Not | Available As Spare Part - Step Collar |
| 16 | 420230195 | Oil Seal |
| 17 | 420232100 | Ball Bearing |
| 18 | 420650371 | Rotary Seal This part replaces 420650370. |
| 19 | 420950890 | O-Ring |
| 20 | Not | Available As Spare Part - Water Pump/Oil Pump Shaft |
| 21 | 420840514 | Allen Screw M5 x 16 This part replaces 420840511. |
| 22 | 420227945 | Thrust Washer |
| 23 | 420222505 | Water Impeller |
| 24 | 420931811 | Gasket This part replaces 420931810. |
| 25 | 420922630 | Water Pump Housing |
| 26 | 420240034 | Hex. Screw M6 X 25 |
| 27 | 420931568 | Gasket This part replaces 420931566. |
| 28 | 420810827 | Cover Plate This part replaces 420810825. |
| 29 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 30 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 31 | 420874370 | Fitting |
| 32 | 420956239 | OIL TUBE - Call your local BRP dealership |
| 33 | 420960279 | Closure Cap |
| 34 | 420951260 | CLAMP - Call your local BRP dealership |
| 35 | 420951241 | CLAMP - Call your local BRP dealership |
| 37 | 420850350 | Rubber Gasket |
| 38 | 420956250 | Oil Tank Cap |
| 39 | 420866710 | Tie Rap |
