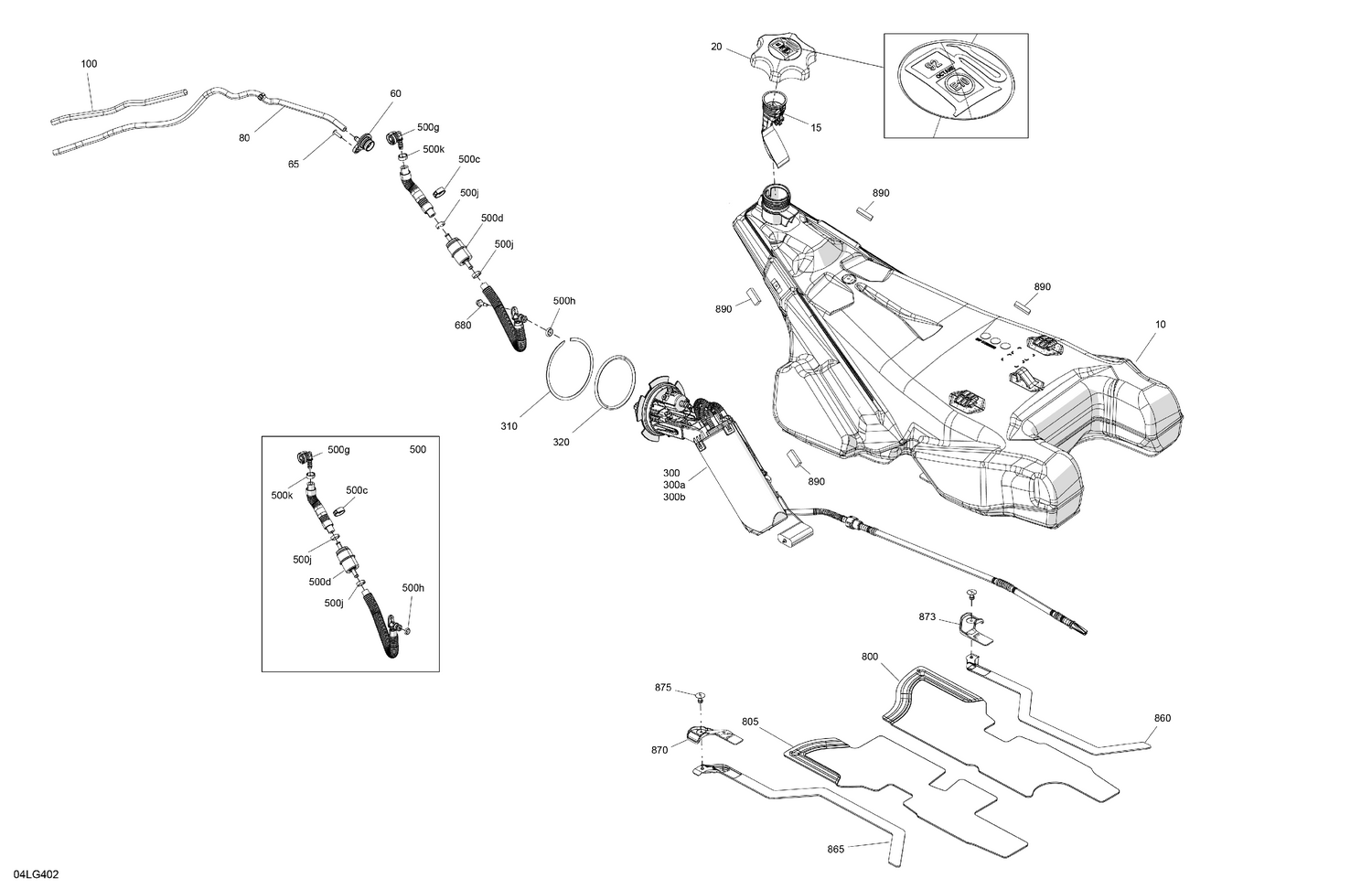

02- Engine - Fuel
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513034100 | Fuel Tank |
| 15 | 513033959 | Tube Ass'y |
| 20 | 513034160 | Fuel Tank Cap |
| 60 | 513034278 | Fuel Valve |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 80 | 219704410 | Hose |
| 100 | 513034291 | Protector Tube |
| 300a | 415131070 | Fuel Level Sensor |
| 300b | 415131068 | Fuel Filter |
| 310 | 513034097 | Circlip |
| 320 | 513033862 | O-Ring |
| 500c | 513033910 | Ring |
| 500d | 513034279 | Fuel Filter |
| 500g | 293710105 | Elbow Fitting 90° |
| 500h | 513033668 | O-Ring |
| 500j | 293650047 | Crimp Clamp, 15.3-706R |
| 500k | 293650053 | Crimp Clamp |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 800 | 513034234 | RH Protective Foam |
| 805 | 513034233 | LH Protective Foam |
| 860 | 513033981 | Foam |
| 865 | 513033982 | Foam |
| 870 | 513034271 | LH Guide Ass'y |
| 873 | 513034273 | RH Guide Ass'y |
| 875 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
