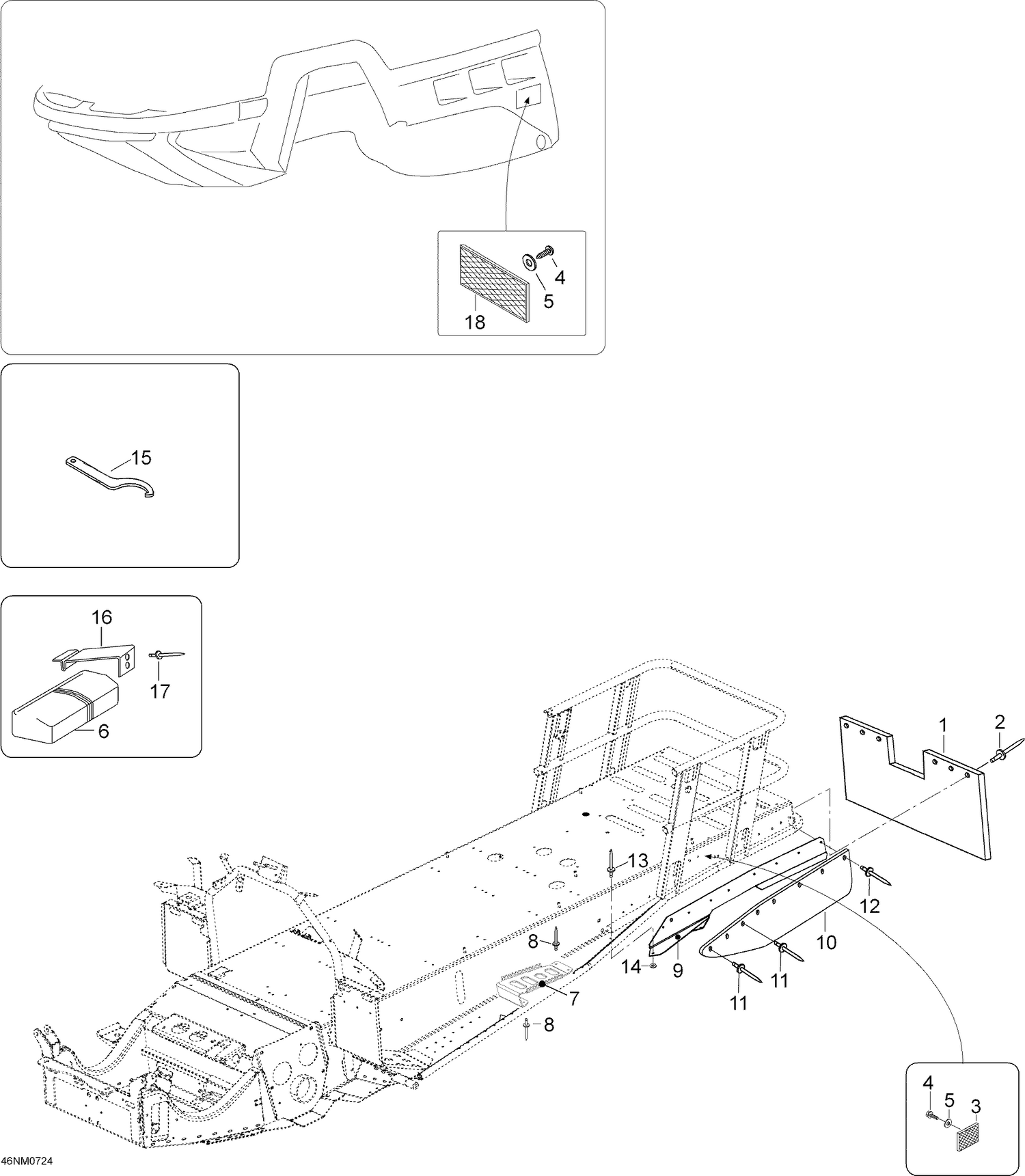

| Ref | Part Number | Description |
|---|
| 1 |
538629 |
Snow guard This part replaces M538629. |
| 2 |
M36036 |
Black, Rivet |
| 3 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 4 |
M40070 |
Screw |
| 5 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 6 |
605352219 |
TOOL SET - Call your local BRP dealership |
| 7 |
605354068 |
FOOTREST - Call your local BRP dealership |
| 8 |
M36489 |
Rivet |
| 9 |
605251248 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 9 |
605251249 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 10 |
5142828 |
Side Snowguard This part replaces M5142828. |
| 11 |
M36097 |
RIVET - Call your local BRP dealership |
| 12 |
M36891 |
Rivet *Rivet |
| 13 |
36005 |
Rivet This part replaces M36005. |
| 14 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 15 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 16 |
M5346728 |
SPRING PLATE - Call your local BRP dealership |
| 17 |
36108 |
Rivet This part replaces M36108. |
