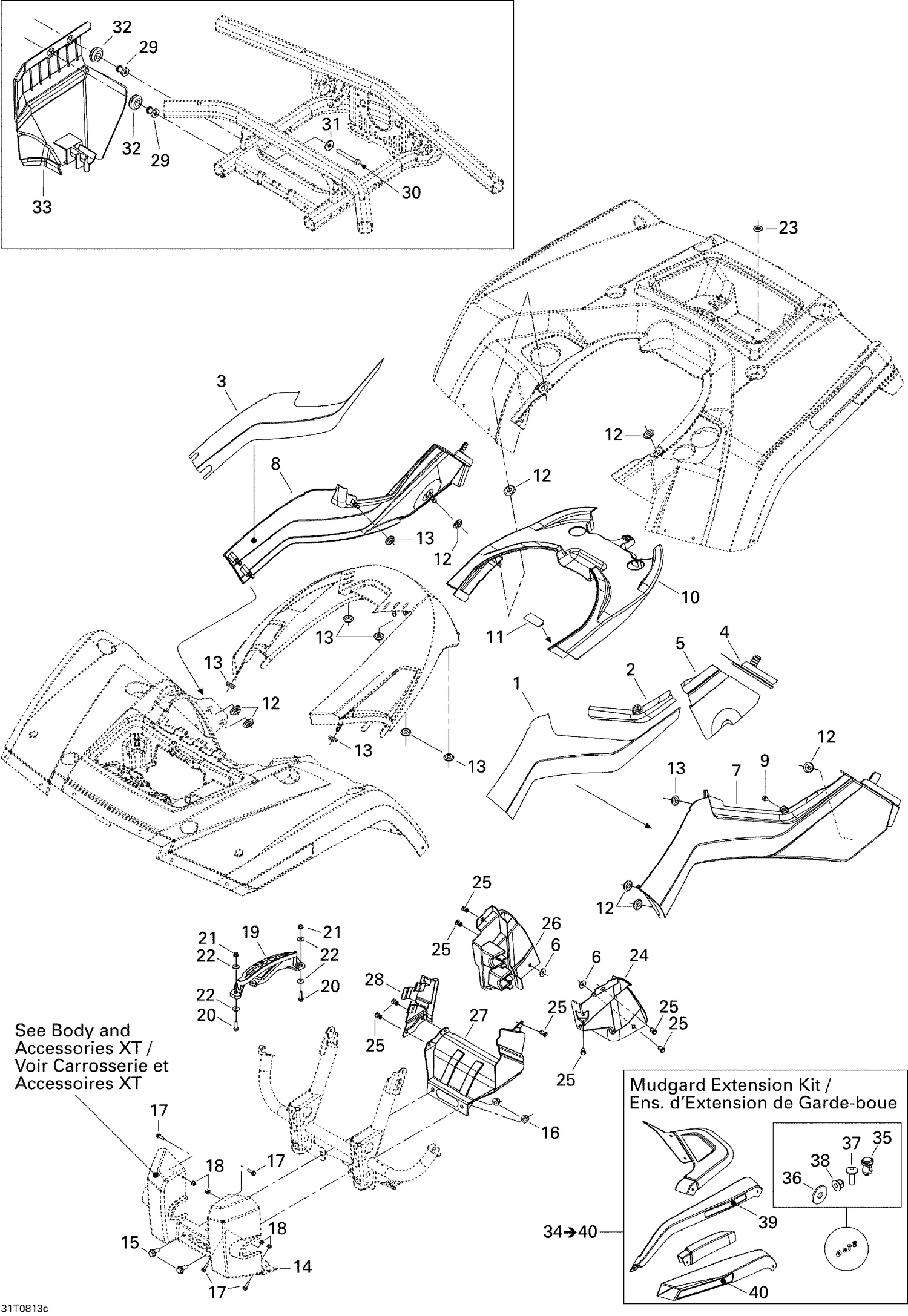

| Ref | Part Number | Description |
|---|
| 1 |
705005620 |
Reflective Sheet This part replaces 705001990. |
| 2 |
705005617 |
REFLECTIVE SHEET - Call your local BRP dealership This part replaces 705001989. |
| 3 |
705005623 |
REFLECTIVE SHEET - Call your local BRP dealership This part replaces 705002126. |
| 4 |
705002183 |
LH REFLECTIVE SHEET - Call your local BRP dealership |
| 5 |
705005621 |
REFLECTIVE SHEET - Call your local BRP dealership This part replaces 705002184. |
| 6 |
506151252 |
Washer |
| 7 |
705002967 |
PANEL_BODY LH B-259 - Call your local BRP dealership This part replaces 705002321. |
| 8 |
705002972 |
RH.PANEL - Call your local BRP dealership This part replaces 705002319. |
| 9 |
293830005 |
Rubber Bumper |
| 10 |
705002323 |
STORAGE TRAY, GRIS - Call your local BRP dealership |
| 11 |
705002185 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 12 |
705005156 |
Oval Washer |
| 13 |
705003264 |
Grommet This part replaces 705002149. |
| 14 |
Not |
Available As Spare Part - Not available for this vehicule |
| 15 |
Not |
Available As Spare Part - Not available for this vehicule |
| 16 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 17 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
705003838 |
Lever Indicator This part replaces 705001532. |
| 20 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
224061201 |
Flat Washer This part replaces 250200072. |
| 23 |
414859400 |
CAP - Call your local BRP dealership |
| 24 |
705003634 |
LH INNER FENDER - Call your local BRP dealership This part replaces 705002125. |
| 25 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 26 |
705002124 |
RH INNER FENDER - Call your local BRP dealership |
| 27 |
705002988 |
LH DEFLECTOR - Call your local BRP dealership This part replaces 705002134. |
| 28 |
705002135 |
RH DEFLECTOR - Call your local BRP dealership |
| 29 |
517303439 |
Knob |
| 30 |
241055030 |
HEX. SCREW K50 X 50 - Call your local BRP dealership |
| 31 |
391301600 |
Washer |
| 32 |
709000582 |
Grommet This part replaces 293720053. |
| 33 |
705004036 |
Thread Cover This part replaces 705002264. |
| 35 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 36 |
234082430 |
Flat Washer M8 |
| 37 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 38 |
233261434 |
Flange Elastic Nut M6 |
| 39 |
704901429 |
LH REAR LATERAL REFLECTOR - Call your local BRP dealership |
| 39 |
704901430 |
RH REAR LATERAL REFLECTOR - Call your local BRP dealership |
| 40 |
704901431 |
LH FRONT LATERAL REFLECTOR - Call your local BRP dealership |
