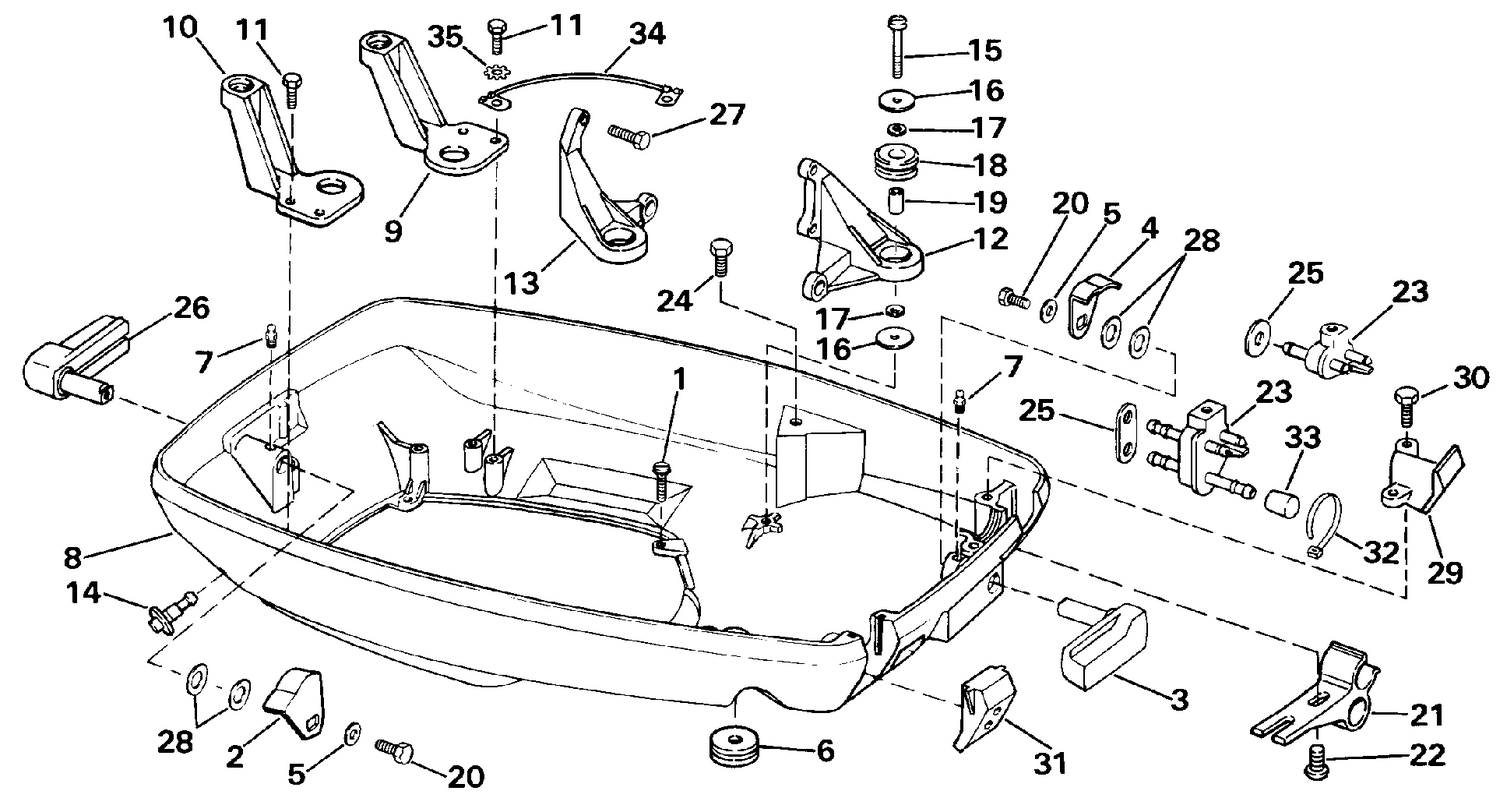

| Ref | Part Number | Description |
|---|
| 4 |
0330253 |
HOOK Front |
| 8 |
0434172 |
ENGINE COVER, Lower This part replaces 0331160. |
| 9 |
0317290 |
BRACKET, Port, rear |
| 10 |
0317291 |
BRACKET, Starboard, rear |
| 12 |
0313839 |
BRACKET, Cover, port |
| 13 |
0313840 |
BRACKET, Cover, starboard |
| 14 |
0321885 |
NIPPLE |
| 15 |
0329240 |
SCREW |
| 17 |
0329241 |
RONDELLE |
| 18 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 19 |
0302406 |
SLEEVE |
| 20 |
0304027 |
VIS, arbre de commande de sens de marche |
| 21 |
0333739 |
RETAINER, Fuel hose to cover |
| 22 |
0310539 |
SCREW, Clamp choke solenoid |
| 23 |
0398229 |
BODY AY |
| 24 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
| 25 |
0331533 |
JOINT, conn. carburant vers capot inférieur |
| 30 |
0909533 |
SCREW, Pressure relief valve cover |
| 31 |
0318401 |
GROMMET, Remote cont cable |
| 32 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 34 |
0376349 |
FIL, masse |
