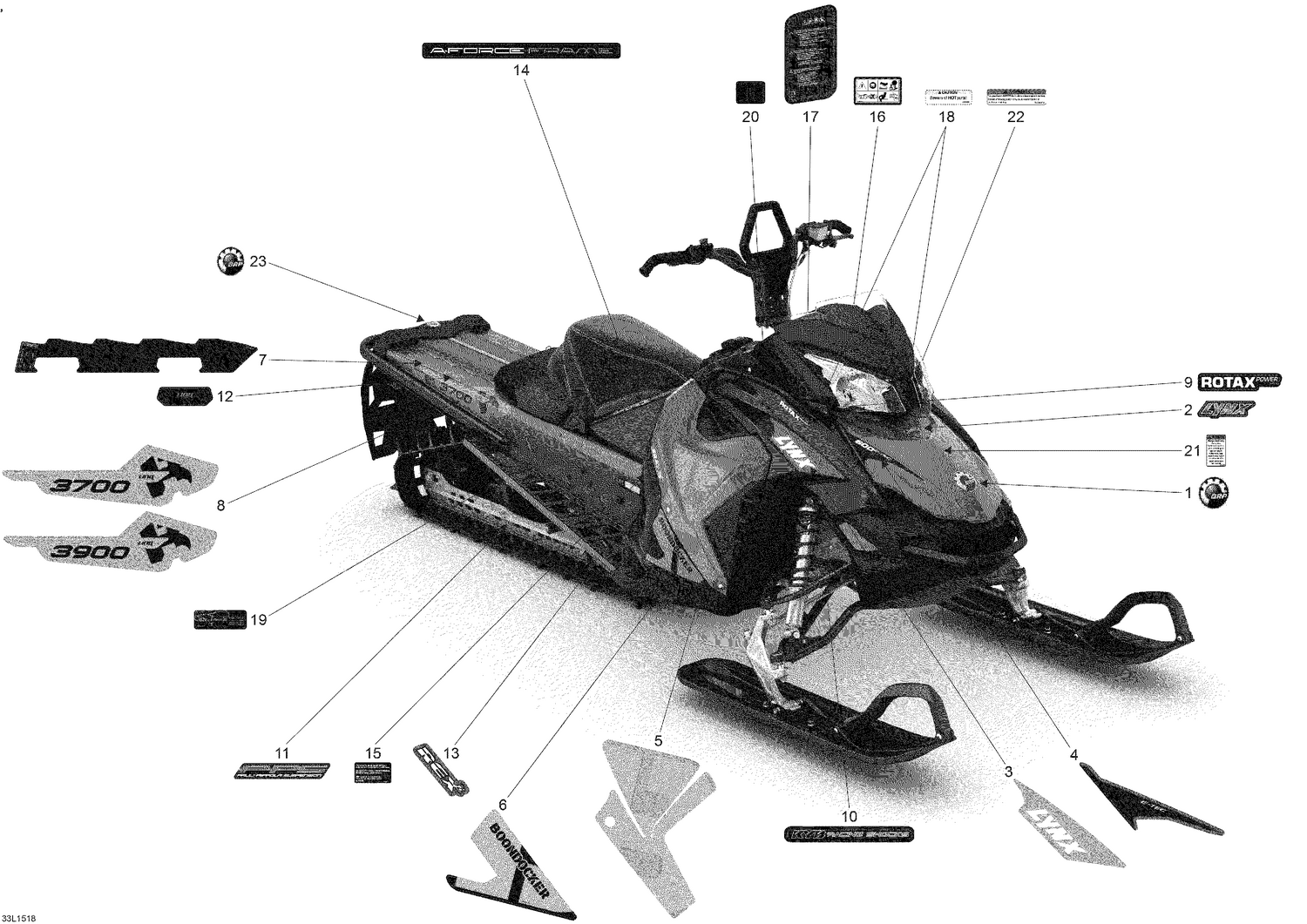

09- Decals
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 704904613. |
| 2 | 516004333 | Hood Decal |
| 3 | 516006756 | LH Sidepanel Decal |
| 3 | 516006757 | RH Sidepanel Decal |
| 4 | 516005934 | LH Hood Decal |
| 4 | 516005935 | RH Hood Decal |
| 5 | 516006735 | LH Sidepanel Decal |
| 5 | 516006736 | RH Sidepanel Decal |
| 6 | 516006739 | LH Sidepanel Decal |
| 6 | 516006740 | RH Sidepanel Decal |
| 9 | 516006331 | Rotax Power Decal |
| 10 | 516004170 | KYB Racing Shocks Decal |
| 11 | 516005674 | PPS Decal |
| 12 | 516006308 | LinkQ Decal |
| 13 | 516005919 | REX2 Platform Decal |
| 14 | 516006688 | A-Force Frame Decal |
| 15 | 5447012 | Oil Checking Decal |
| 16 | 516003919 | Warning Decal |
| 17 | 516004607 | Instr./Warning (EN/FI/SWE) Decal |
| 18 | 516004651 | Hot Parts Decal |
| 19 | 516006395 | Track Tension Decal |
| 20 | 516006361 | Console Buttonhole Cover Decal |
| 21 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 22 | 516006900 | Driven Pulley Shield Warning Decal |
