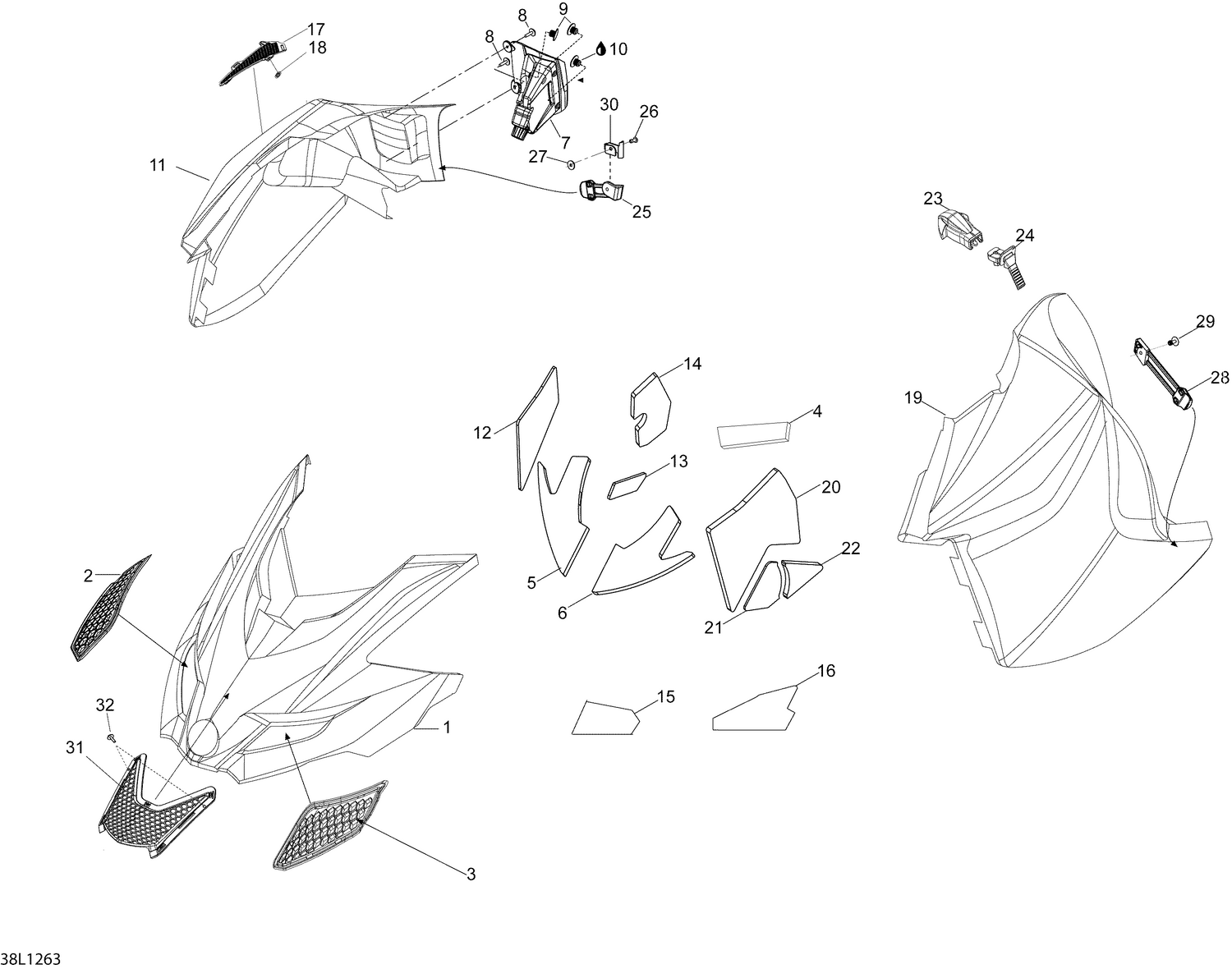

09- Hood
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304853 | Hood, White |
| 2 | 517304141 | R.H. Hood grill |
| 3 | 517304008 | L.H. Hood grill |
| 4 | 517304845 | Foam |
| 5 | 517304846 | Foam |
| 6 | 517304847 | Foam |
| 7 | 517304322 | RH Console |
| 8 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 9 | 275500241 | Cap, Black |
| 10 | 413408300 | Loctite, Black Max, 3 ml |
| 11 | 517304981 | Side panel RH |
| 12 | 517304220 | Foam |
| 13 | 517304845 | Foam |
| 14 | 517304339 | Foam |
| 15 | 517304264 | Aluminum Foil |
| 16 | 517304265 | Aluminum Foil |
| 17 | 517304007 | Grill |
| 18 | 517302785 | Clip |
| 19 | 517304990 | Side panel LH |
| 20 | 517304219 | Foam |
| 21 | 517304305 | Foam |
| 22 | 517304340 | Foam |
| 23 | 860200239 | Latch Kit, Black |
| 24 | 517303981 | Panel Latch |
| 25 | 517303612 | Panel Latch |
| 26 | 390402300 | Pop Rivet 3/16" |
| 27 | 517124300 | Washer |
| 28 | 517303808 | Panel Latch |
| 29 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 30 | 517304221 | Latch Support |
| 31 | 517304843 | Hood Grill |
