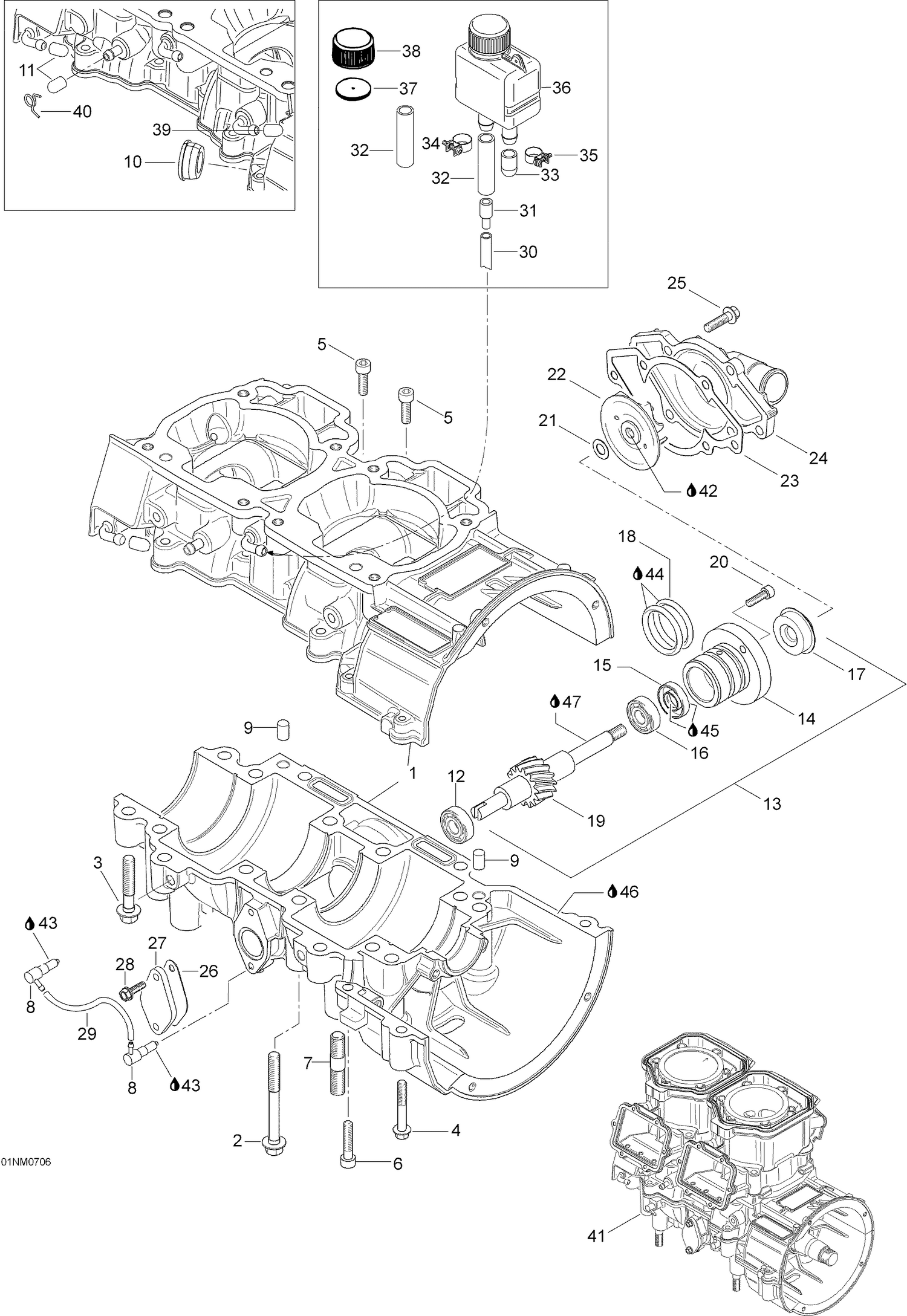

01- Crankcase — Parts Catalog

Parts (43)

Ref	Part Number	Description
2	420640836	Screw M8 x 75
3	420640433	Collar Hex Screw M8 X 45 This part replaces 420640431.
4	420640312	Hex. Collar Screw M6 X 45 This part replaces 420640311.
5	205062044	Socket head screw M6 x 20 This part replaces 420241930.
6	205063044	Allen screw M6x30 This part replaces 420840880.
7	420641834	STUD M10 X 29 - Call your local BRP dealership
8	420956511	Check Valve This part replaces 420956510.
9	420632010	Center Pin 8 X 12
10	420860965	Cable grommet
11	420960770	Closure cap
12	420232100	Ball Bearing
13	420837421	Waterpump/oilpump shaft
15	420230195	Oil seal This part replaces 420230196.
16	420232100	Ball Bearing
17	420650371	Rotary Seal This part replaces 420650370.
18	420950890	O-Ring
19	Not	Available As Spare Part - Waterpump/oilpump shaft
20	420840514	Allen Screw M5 x 16 This part replaces 420840511.
21	420227945	Thrust washer
22	420222505	Impeller
23	420931811	Gasket This part replaces 420931810.
24	420922630	Pump housing
25	420240034	Hex. Screw M6 x 25 This part replaces 420240031.
26	420931568	Joint *Gasket This part replaces 420931565.
27	420810827	Cover Plate This part replaces 420810825.
28	420941928	Taptite Screw M5 X 16 This part replaces 420941925.
29	420960561	Oil line
30	420974535	Oil line
31	420874370	Reduction fitting
32	420956239	OIL TUBE - Call your local BRP dealership
33	420960279	Cap
34	420951260	CLAMP - Call your local BRP dealership
35	420951241	CLAMP - Call your local BRP dealership This part replaces 420951240.
37	420850350	Gasket
38	420956250	Oil Tank Cap
39	420960777	CAP - Call your local BRP dealership
40	420938190	CLAMP - Call your local BRP dealership
41	300045304	Short block engine
42	293800060	Loctite 243, 10ml
43	219703000	Sealant Loctite 648 This part replaces 413711400.
44	413707000	Molykote 111
45	420899271	Klueber petamo, 250gr.
46	420297907	Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
