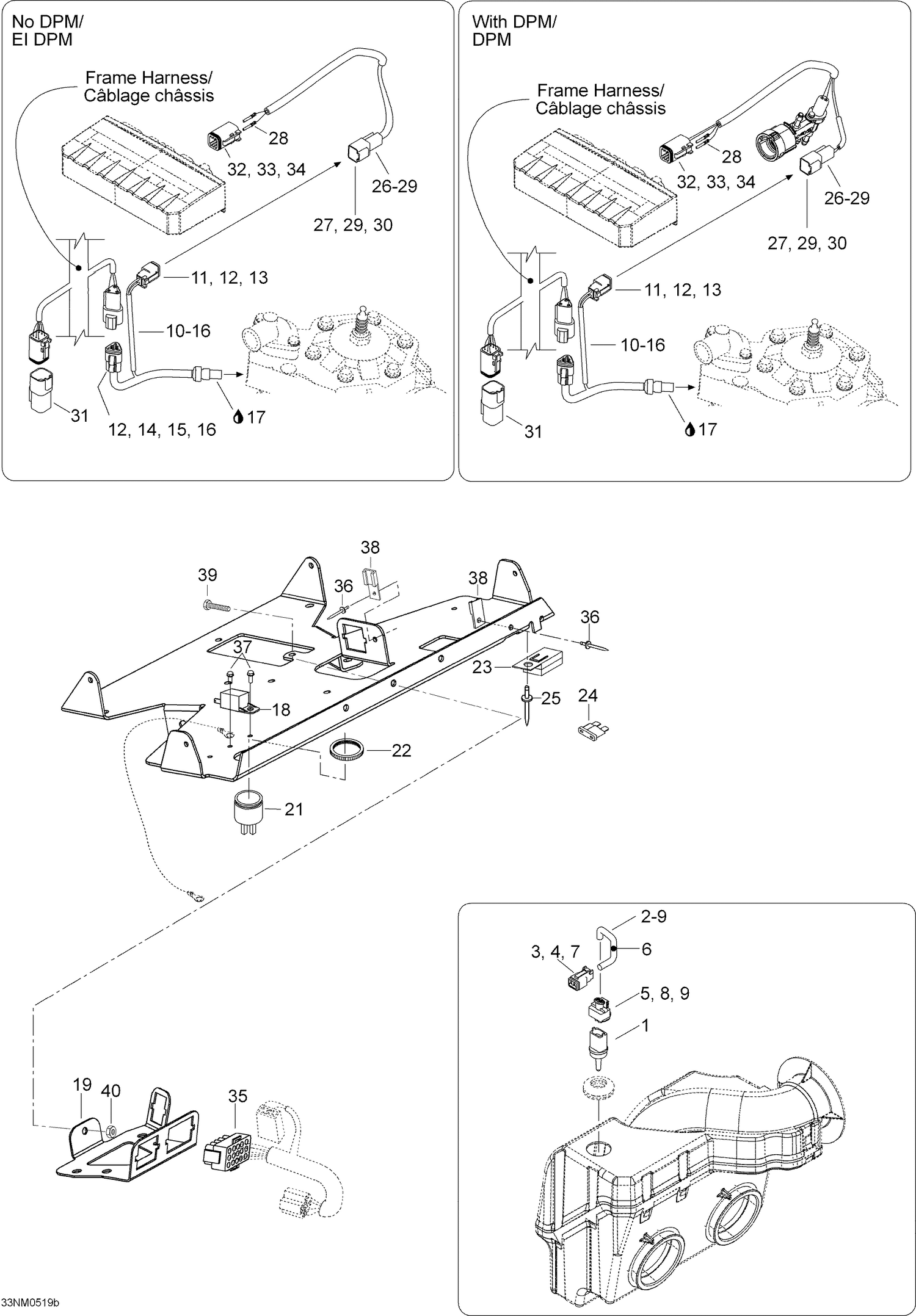

10- Electrical System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 270600000 | AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 3 | 278000998 | Female terminal |
| 4 | 278000999 | Seal |
| 5 | 278000632 | Female terminal |
| 6 | 515175332 | Tubing |
| 7 | 515175588 | FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 8 | 515175670 | Female terminal housing |
| 9 | 515175706 | Female lock |
| 11 | 515175670 | Female terminal housing |
| 12 | 278000632 | Female terminal |
| 13 | 515175675 | Female lock |
| 14 | 515175671 | FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 15 | 515175676 | Lock |
| 16 | 293000052 | Sealing Cap |
| 17 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
| 18 | 710010053 | RELAY This part replaces 410113200. |
| 19 | 605351682 | Bracket |
| 21 | 515176035 | HORN - Call your local BRP dealership |
| 22 | 414805101 | PLASTIC NUT - Call your local BRP dealership |
| 23 | 42272 | Support, fuse housing |
| 24 | 409003900 | Fuse 20A |
| 25 | 36491 | Rivet |
| 27 | 278000631 | Male terminal |
| 28 | 278000632 | Female terminal |
| 29 | 409207500 | Male lock |
| 30 | 515175665 | Male terminal housing |
| 31 | 515175668 | Female terminal |
| 32 | 293000052 | Sealing Cap |
| 33 | 515175673 | Male terminal housing |
| 34 | 515175678 | Wedge |
| 35 | 42617 | Male terminal housing |
| 36 | 36005 | Rivet |
| 37 | 210251650 | Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 38 | 270000141 | Clip This part replaces 515175917. |
| 39 | 40029 | Hex. screw M6 x 16 |
