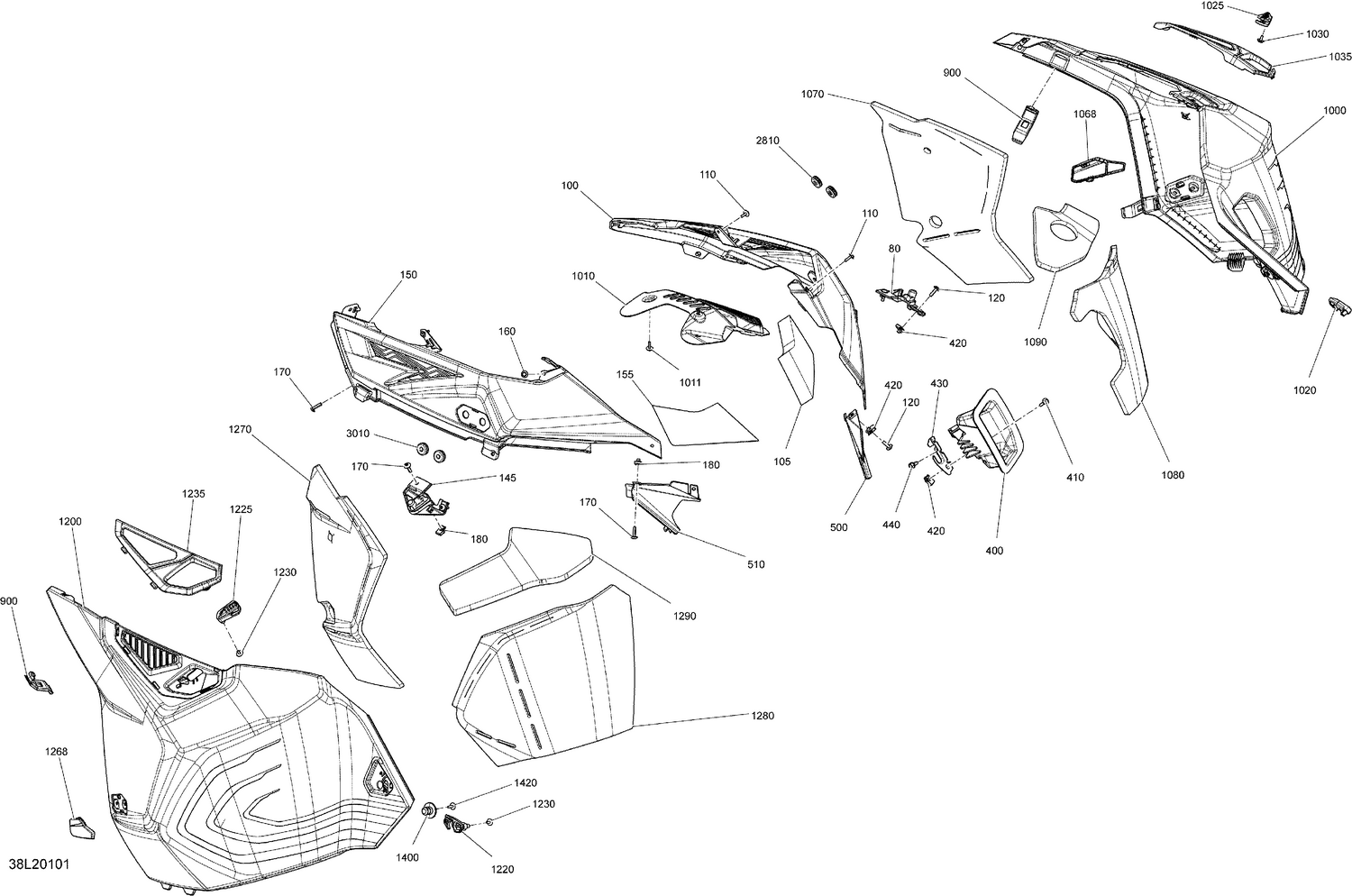

09- Body - Hood Section - STD - Side Part
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 517306450 | RH Knob Part |
| 100 | 517307222 | RH Upper Side Panel |
| 105 | 517308487 | RH Upper Side Panel Foam This part replaces 517306695. |
| 110 | 250000725 | Screw M4 X 16 |
| 120 | 250000528 | Torx Screw M5 X 20 |
| 145 | 517306451 | LH Knob Part |
| 150 | 517306069 | LH Upper Side Panel |
| 155 | 517308488 | LH Upper Side Panel Foam This part replaces 517306696. |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 180 | 250000958 | Panel Nut M5 X 0.8 |
| 400 | 517306759 | RH Console |
| 410 | 250000586 | Torx Truss M5 X 20 |
| 420 | 250000958 | Panel Nut M5 X 0.8 |
| 430 | 517306315 | Rope Guide |
| 440 | 210261250 | Hex. Flanged Screw M6 X 12 |
| 500 | 517306918 | RH Cover Plate |
| 510 | 517306919 | LH Cover Plate |
| 900 | 517306811 | Rubber Latch |
| 1000 | 517306073 | RH Side Panel |
| 1010 | 517306991 | Grill |
| 1011 | 250000725 | Screw M4 X 16 |
| 1020 | 517306320 | RH Rear Latch |
| 1025 | 517305773 | RH Rear Latch |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1035 | 517306482 | RH Trim |
| 1068 | 517306489 | RH Side Panel Cap |
| 1070 | 517308464 | RH Central Side Panel Foam This part replaces 517306246. |
| 1080 | 517308465 | RH Rear Side Panel Foam This part replaces 517306250. |
| 1090 | 517308466 | RH Upper Side Panel Foam This part replaces 517306251. |
| 1200 | 517306075 | LH Side Panel |
| 1220 | 517306325 | LH Rear Latch |
| 1225 | 517305774 | LH Rear Latch |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1235 | 517306481 | LH Trim |
| 1268 | 517306488 | LH Side Panel Cap |
| 1270 | 517306247 | LH Side Panel Central Foam |
| 1280 | 517308468 | LH Rear Side Panel Foam This part replaces 517306252. |
| 1290 | 517308469 | LH Upper Side Panel Foam This part replaces 517306253. |
| 1400 | 517305985 | Rear Stud |
| 1420 | 250000725 | Screw M4 X 16 |
| 2810 | 517307161 | Grommet This part replaces 517302841. |
