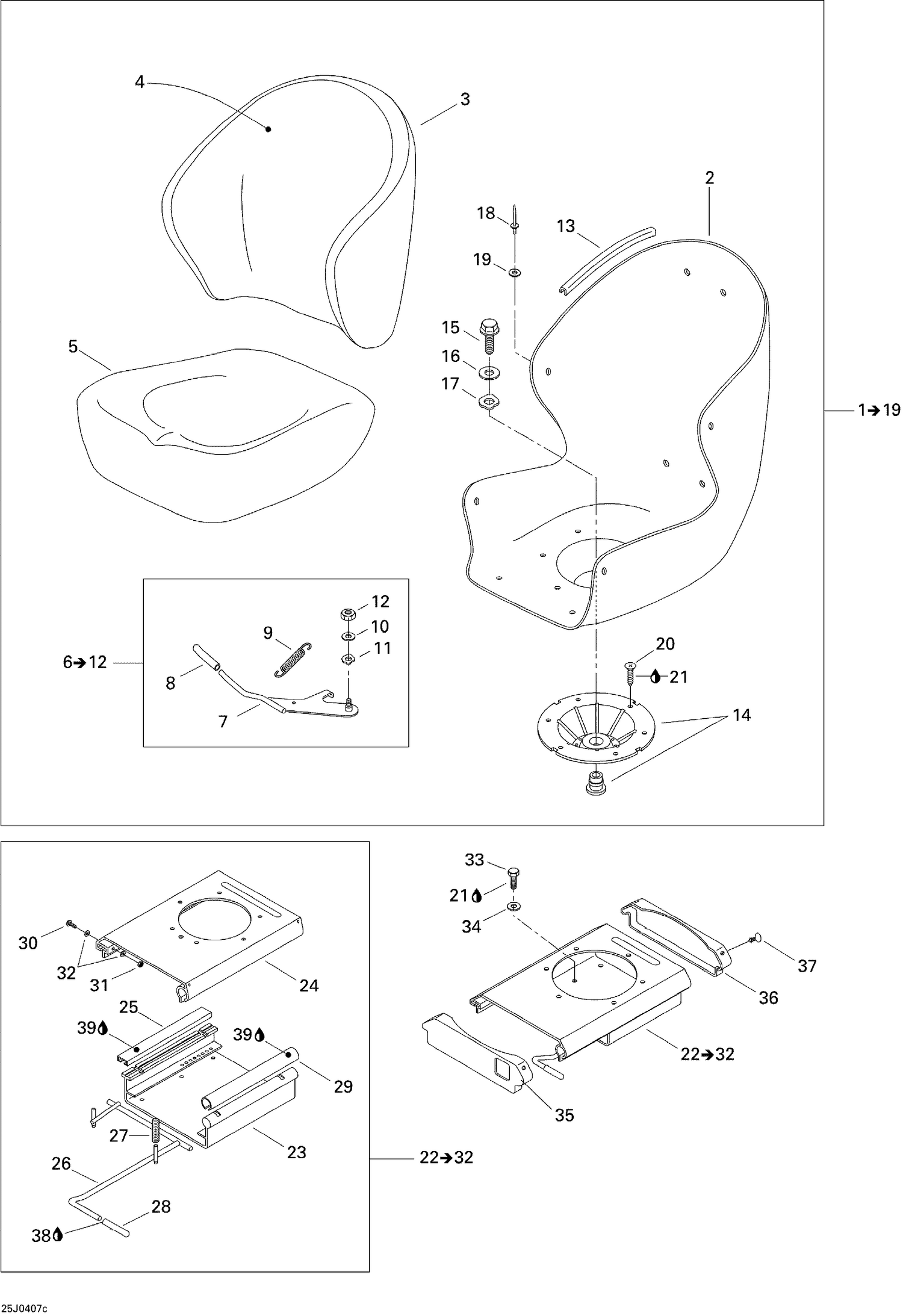

09- Seat (Driver and Passenger)
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204612781 | Seat Base |
| 3 | 204612255 | Backrest Cover |
| 4 | 204612255 | Backrest Cover |
| 5 | 204612256 | Seat Cushion |
| 7 | 204610524 | Lever Arm |
| 8 | 204610348 | Handle |
| 9 | 204610349 | SPRING - Call your local BRP dealership |
| 10 | 234061600 | Stainless Flat Washer M6 |
| 11 | 211200059 | Washer |
| 12 | 232561600 | Hex. Elastic Stop Nut M6 |
| 13 | 204610371 | TRIM, BLACK - Call your local BRP dealership |
| 14 | 204610513 | SWIVEL PLATE - Call your local BRP dealership |
| 15 | 211000172 | SCREW-SHOULDER - Call your local BRP dealership |
| 16 | 211200058 | FLAT WASHER - Call your local BRP dealership |
| 17 | 293200056 | WASHER - Call your local BRP dealership |
| 18 | 293150201 | RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 19 | 204100059 | FLAT WASHER #10 - Call your local BRP dealership |
| 20 | 208561660 | PHILLIPS SCREW M6 X 16 - Call your local BRP dealership |
| 21 | 293800060 | Loctite 243, 10 ml |
| 23 | 269500636 | Lower Part |
| 24 | 269500637 | Upper Part |
| 25 | 269500638 | Rectangular Bushing |
| 26 | 269500639 | Rod Ass'y |
| 27 | 269500640 | Spring |
| 28 | 204610348 | Handle |
| 29 | 269500642 | Circle Bushing |
| 30 | 207065060 | Hex. Screw M6 X 50 |
| 31 | 232561600 | Hex. Elastic Stop Nut M6 |
| 32 | 234061600 | Stainless Flat Washer M6 |
| 33 | 207163560 | Hex. Screw M6 X 35 |
| 34 | 234062600 | Flat Washer M6, Stainless |
| 35 | 204610375 | Front Protector |
| 36 | 204610376 | Rear Protector |
| 37 | 293730006 | Black, Dart |
