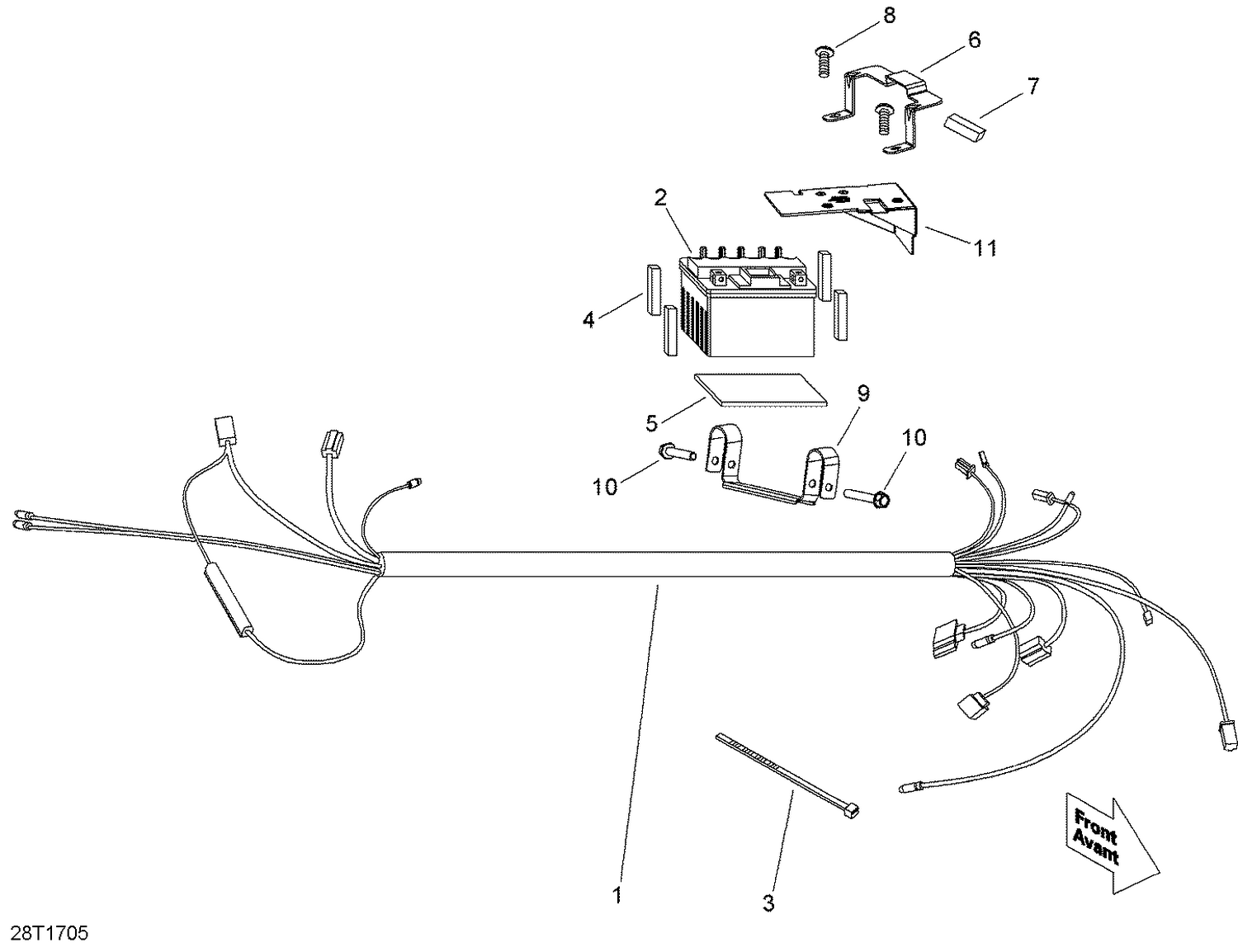

10- Main Harness
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V32100DGF150 | Main Harness |
| 2 | V31500MAA020 | Battery YUASA YTX4L-BS |
| 3 | 414115200 | Tie-Rap 180 mm |
| 4 | V81149MAA000 | Cushion Rubber |
| 5 | V81151DGF020 | Foam |
| 6 | V50296DGF030 | Battery Bracket This part replaces V50296DGF010. |
| 7 | V81152DGF010 | Cushion Rubber This part replaces V81152DGF000. |
| 8 | V930000601201LL | Round Head Screw This part replaces V930000601201. |
| 9 | V50229DGF01H | BATTERY BRACKET - Call your local BRP dealership |
| 10 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
