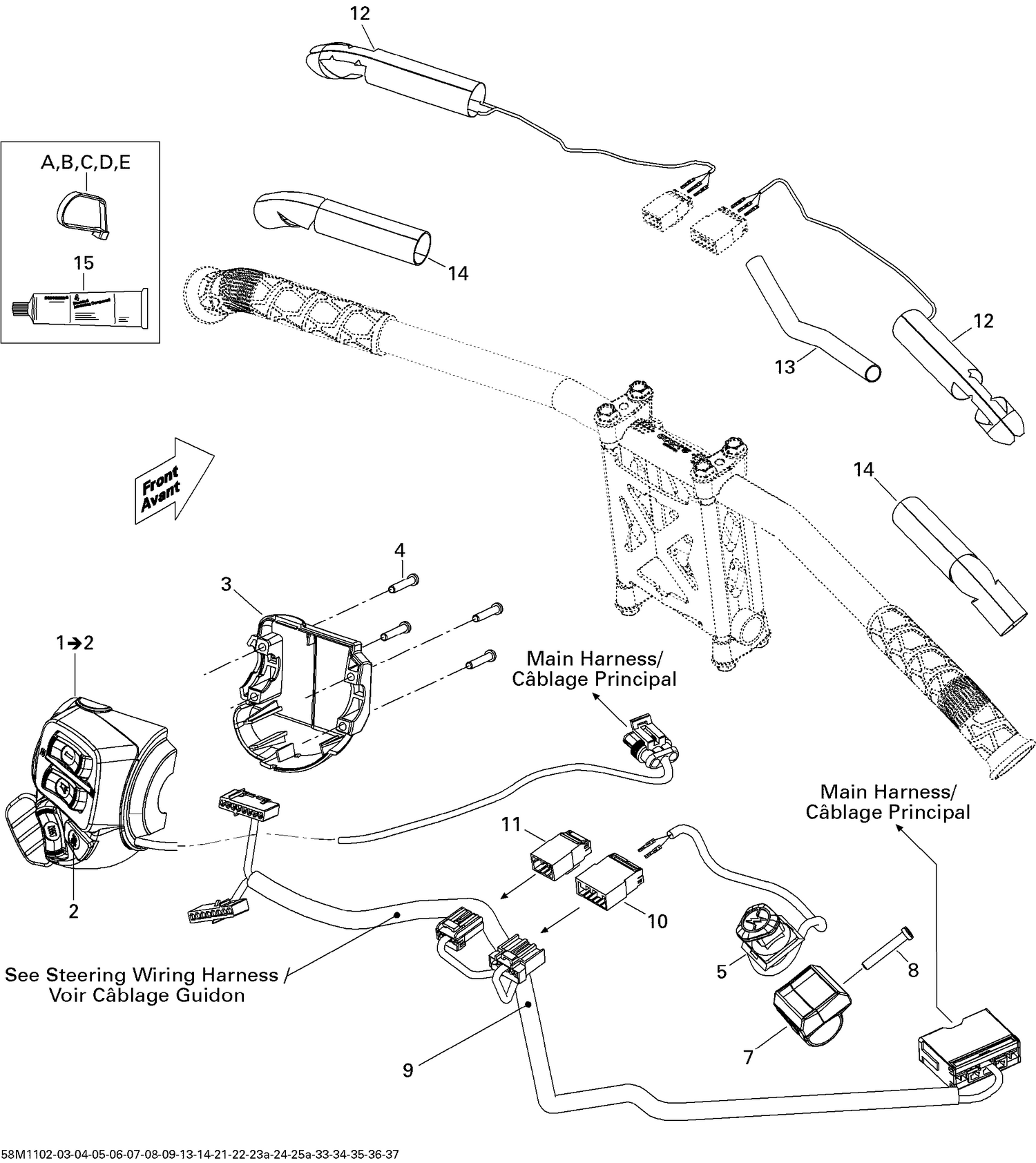

10- Electrical Accessories, Steering
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| A | 293750001 | Tie Wrap 94 mm |
| B | 293750002 | Tie Wrap 142 mm |
| C | 293750009 | Tie-Rap 173 mm |
| D | 414115200 | Tie-Rap 180 mm |
| 2 | 515176088 | Start/RER Button |
| 3 | 515175926 | Switch Housing Plate |
| 4 | 250000263 | Torx Screw #8-18 |
| 5 | 515177362 | Emergency Stop Switch This part replaces 515176988. |
| 7 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 8 | 250000263 | Torx Screw #8-18 |
| 9 | 515176867 | STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 10 | 515175817 | Male Terminal Housing, 8 Circuits |
| 11 | 515175662 | Male Terminal Housing, 6 Circuits |
| 12 | 506152484 | Heating Element 20W |
| 13 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 14 | 506152360 | Insulant |
| 15 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
