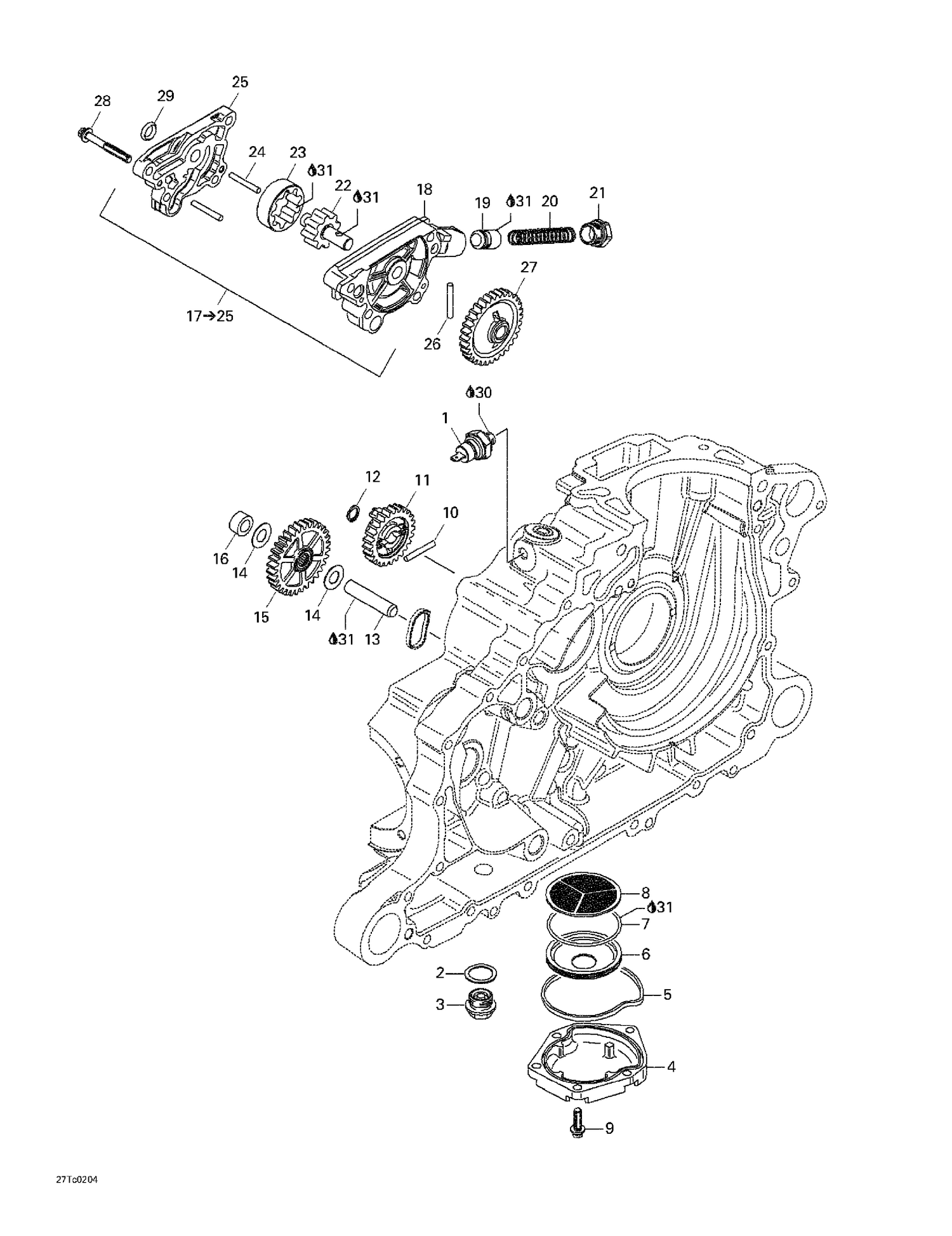

| Ref | Part Number | Description |
|---|
| 1 |
710000313 |
OIL PRESSURE SWITCH - Call your local BRP dealership This part replaces 711256640. |
| 2 |
420552280 |
Crush Washer This part replaces 711552280. |
| 3 |
420840278 |
Drain Plug M18 X 1.5 This part replaces 711840277. |
| 4 |
420211940 |
OIL SIEVE COVER - Call your local BRP dealership This part replaces 711211940. |
| 5 |
420650560 |
Rubber Ring This part replaces 711650560. |
| 6 |
420256650 |
Oil Collector This part replaces 711256650. |
| 7 |
420650697 |
O-Ring This part replaces 711650690. |
| 8 |
420256570 |
OIL SIEVE - Call your local BRP dealership This part replaces 711256570. |
| 9 |
420641238 |
Torx Flange Screw M6 X 25 This part replaces 711641233. |
| 10 |
420232431 |
Needle Pin This part replaces 711232430. |
| 11 |
420635191 |
Idle Gear, 25 Teeth This part replaces 711365190. |
| 12 |
420245330 |
Snap Ring |
| 13 |
711229300 |
Location Pin |
| 14 |
420927952 |
THRUST WASHER - Call your local BRP dealership |
| 15 |
420834267 |
SPROCKET, 32 TEETH - Call your local BRP dealership |
| 16 |
711247080 |
Spacer |
| 18 |
420610221 |
Oil Pump Housing This part replaces 711610220. |
| 19 |
711256635 |
Piston Valve |
| 20 |
420238220 |
Compression Spring This part replaces 711238220. |
| 21 |
711641160 |
Screw Plug M16 |
| 22 |
711220812 |
Oil Pump Shaft |
| 23 |
Not |
Available As Spare Part - Oil Pump Outer Rotor |
| 24 |
420232431 |
Needle Pin This part replaces 711232430. |
| 25 |
711610210 |
Oil Pump Cover |
| 26 |
420232431 |
Needle Pin This part replaces 711232430. |
| 27 |
420635220 |
Oil Pump Gear, 32 Teeth This part replaces 711635220. |
| 28 |
711641193 |
Torx Flange Screw M6 x 45 |
| 29 |
420250290 |
O-ring This part replaces 711250290. |
| 30 |
293800060 |
Loctite 243, 10 ml |
