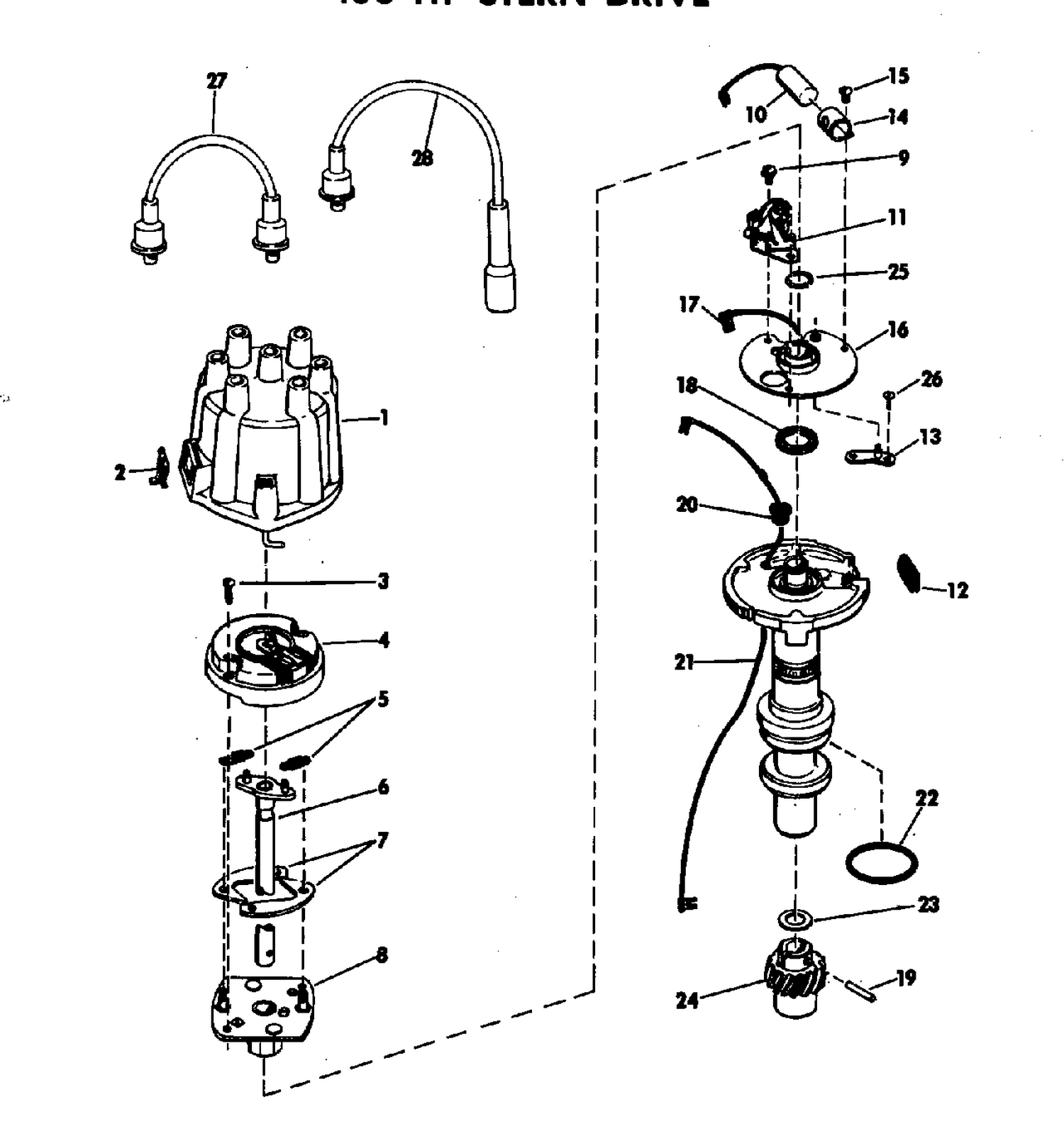

| Ref | Part Number | Description |
|---|
| 1 |
0383586 |
CAP, Distributor |
| 2 |
0382074 |
SCREEN, Ventilation |
| 3 |
0311725 |
SCREW |
| 4 |
0380542 |
ROTOR ASSEMBLY |
| 5 |
0311724 |
SPRING, Weight |
| 6 |
0312730 |
SHAFT |
| 7 |
0311722 |
WEIGHT |
| 8 |
0313116 |
CAM |
| 9 |
0311720 |
SCREW AND LOCKWAHSER |
| 10 |
0382125 |
CONDENSER ASSEMBLY |
| 11 |
0380543 |
CONTACT POINT ASSEMBLY |
| 12 |
0313090 |
SEAL, Cap to base |
| 13 |
0382073 |
BRACKET & PIN ASSEMBLY |
| 15 |
0311718 |
SCREW & LOCKWASHER, Weight hold down |
| 16 |
0382126 |
BREAKER PLATE ASSEMBLY |
| 17 |
0311715 |
LEAD, Breaker plate |
| 18 |
0311714 |
WASHER, Felt |
| 19 |
0311707 |
PIN, Gear |
| 20 |
0311712 |
GROMMET |
| 21 |
0313114 |
LEAD, Primary |
| 22 |
0311710 |
O-RING HOUSING |
| 23 |
0311709 |
THRUST WASHER |
| 24 |
0311708 |
GEAR Drive |
| 25 |
0311706 |
SPRING, Breaker plate |
| 26 |
0302430 |
SCREW, Bracket and pin |
| 27 |
0580545 |
LEAD ASSEMBLY, Distributor to coil |
| 28 |
0580546 |
LEAD ASEMBLY,Spark plug #1 |
| 28 |
0580548 |
LEAD ASSY., Spark plug #4 |
| 28 |
0580549 |
LEAD ASSY., Spark plug #3 |
| 28 |
0580550 |
LEAD ASSEMBLY, Spark plug #2, #6 |
| 0383584 |
0383584 |
DISTRIBUTOR ASSEMBLY, Complete |
