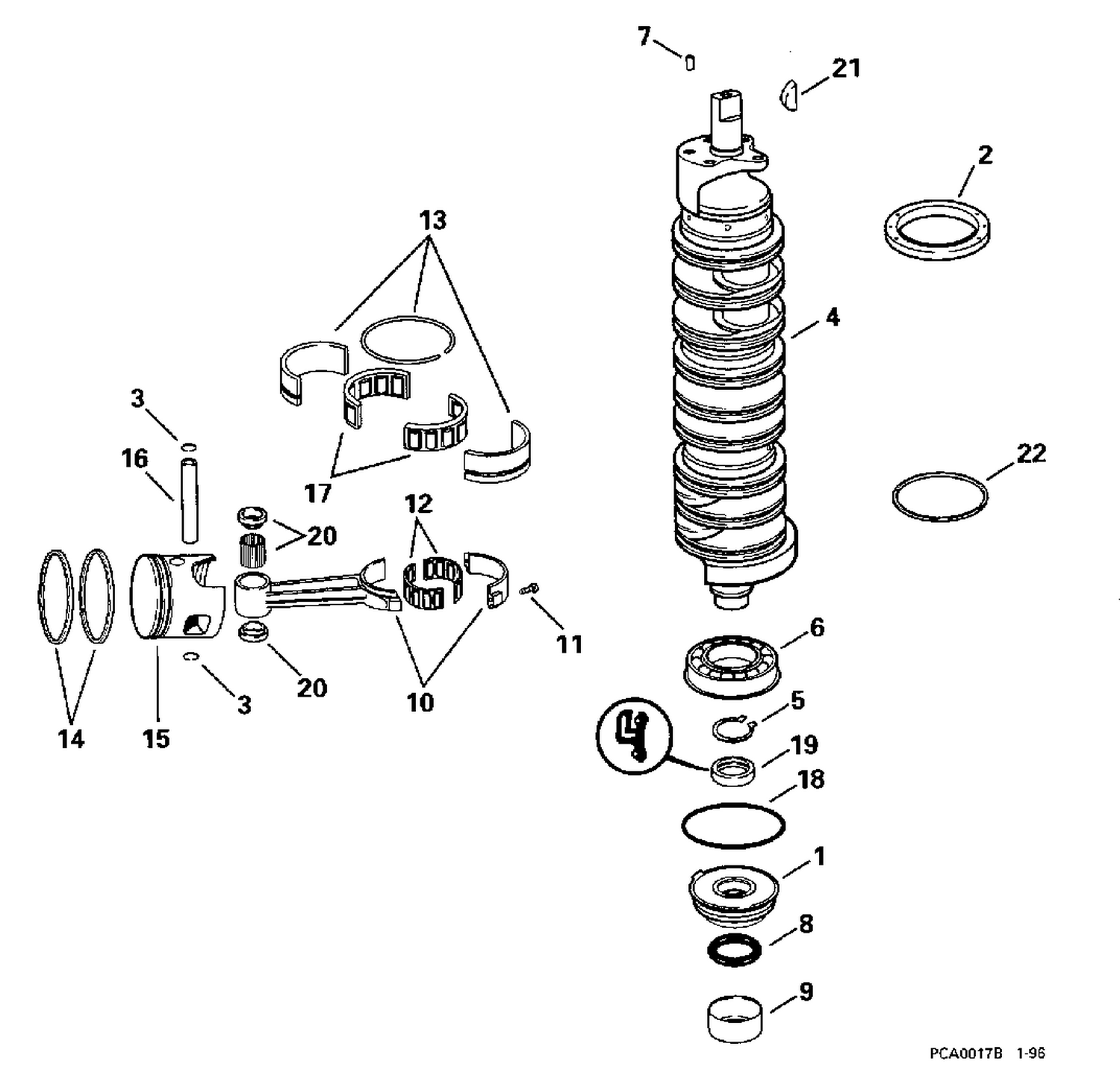

| Ref | Part Number | Description |
|---|
| 1 |
0340559 |
CORPS, joint, palier inférieur |
| 3 |
0317831 |
Circlip |
| 4 |
0438930 |
CRANKSHAFT Assy This part replaces 0435317. |
| 5 |
0326047 |
Retaining Ring |
| 8 |
0337087 |
O-Ring |
| 9 |
0337030 |
Sleeve, Crankshaft |
| 10 |
5006383 |
CONNECTING ROD This part replaces 0392591. |
| 12 |
0387787 |
BEARING Assembly, Connecting rod |
| 13 |
0335825 |
GARNITURE FENDUE, coussinet |
| 15 |
0436243 |
PISTON, Std -Stbd |
| 15 |
0436312 |
PISTON & PIN, 0.030 in. o.s. (port) |
| 15 |
0436313 |
PISTON & PIN, 0.030 in. o.s. (stbd) |
| 15 |
5006687 |
PISTON, standard, bâbord This part replaces 0436242. |
| 16 |
0327861 |
Wrist Pin |
| 17 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
| 20 |
0395627 |
BEARING & RETAINER |
