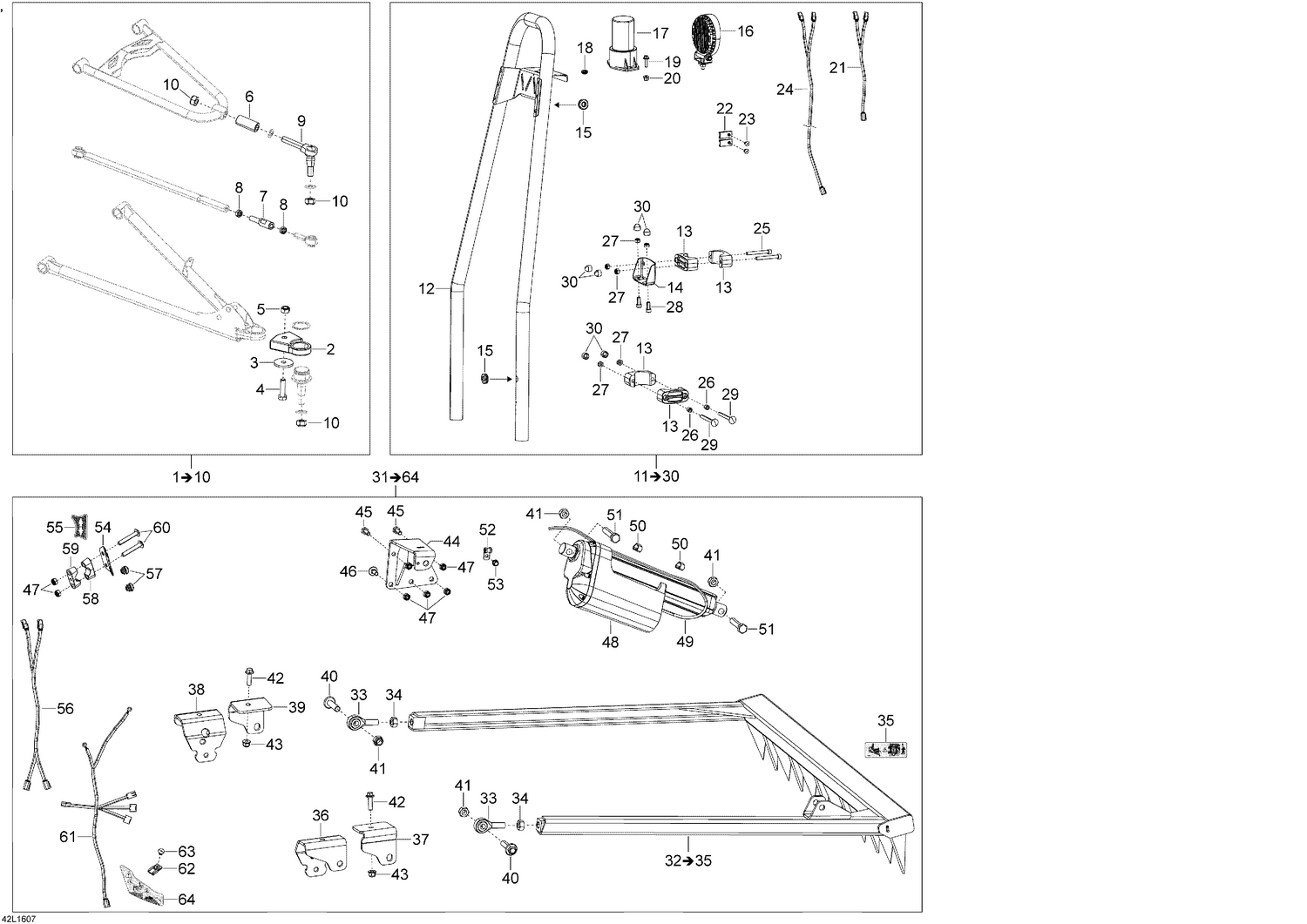

11- Optional
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 505073304 | Lower Arm Extension |
| 3 | 505073305 | Washer |
| 4 | 40014 | Hex. Screw M10 x 40 |
| 5 | 232500416 | Elastic Stop Nut M10 |
| 6 | 505073306 | Upper Arm Extension |
| 7 | 506152609 | Tierod Extension |
| 8 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 9 | 505073308 | Ball Joint |
| 10 | 250100089 | Hex. Nut M12 |
| 12 | 520001337 | Beacon Bar Ass'y |
| 13 | 520001141 | Beacon Bar Half Fastener |
| 14 | 520001202 | Beacon Bar Fastening Plate |
| 15 | 517303756 | Grommet |
| 16 | 520001293 | Working LED Light |
| 17 | 520001294 | Beacon Orange LED Light |
| 18 | 605628001 | Grommet |
| 19 | 207652044 | Hex. Flange Screw M5 X 20 |
| 20 | 233251434 | Flanged Elastic Nut M5 |
| 21 | 515177364 | Accessory Harness |
| 22 | 270000141 | Clip |
| 23 | 293150144 | Rivet |
| 24 | 515177455 | Beacon / Light Harness |
| 25 | 207788044 | M8 X 80 CARRIAGE BOLT - Call your local BRP dealership |
| 26 | 510005735 | Sleeve |
| 27 | 232581434 | Elastic Stop Nut M8 |
| 28 | 205082044 | Socket Head Screw M8 x 20 |
| 29 | 250000654 | Socket Head Screw M8 x 70 |
| 30 | 28056 | Cover |
| 33 | 520001200 | Rod End |
| 34 | 250100099 | Nut M12 |
| 35 | Not | Available As Spare Part - Trapping / No Go Area Warning Decal |
| 36 | 520001198 | LH Brake Fastening Bracket |
| 36 | 520001547 | LH Brake Fastening Bracket (MY2015) |
| 37 | 520001320 | LH Brake Fastening Bracket Support |
| 38 | 520001199 | RH Brake Fastening Bracket |
| 38 | 520001548 | RH Brake Fastening Bracket (MY2015) |
| 39 | 520001321 | RH Brake Fastening Bracket Support |
| 40 | 40099 | Hex. Screw M12 x 45 |
| 41 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 42 | 207683044 | Hex. Flange Screw M8 X 30 |
| 43 | 233281434 | Hex. Flange Nut M8 |
| 44 | 520001177 | Engine Upper Bracket |
| 45 | 207182034 | HEX. CAP SCREW M8 X 20 - Call your local BRP dealership |
| 46 | 207782044 | Carriage Bolt M8 x 20 |
| 47 | 232581414 | Hex. Elastic Stop Nut M8 |
| 48 | 520001201 | Linear Actuator |
| 49 | 520001291 | Linear Actuator Cable |
| 50 | 520001235 | Cable Holder |
| 51 | 207125534 | Hex. Screw M12 x 55 |
| 52 | 293650256 | Clamp This part replaces 715900250. |
| 53 | 210261040 | Hex. Flange Screw M6 x 10 |
| 54 | 520001197 | Switch Bracket |
| 55 | 516006255 | Switch Decal |
| 56 | 515177489 | Slope Control Accessory Harness |
| 57 | 515177436 | Push Button Rubber Cover |
| 58 | 506152751 | Steering Support This part replaces 506152395. |
| 59 | 506152610 | Steering Bar Support |
| 60 | 250000761 | Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 61 | 515177365 | Accessory Harness |
| 62 | 270000141 | Clip |
| 63 | 293150144 | Rivet |
